CRL Brushed Stainless Adjustable European Top Patch for Glass Door
CRL Brushed Stainless Adjustable European Top Patch for Glass Door
Regular price
$131.34 CAD
Regular price
Sale price
$131.34 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PH21CBS
Shipping Weight: 12.16 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 12.16 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback
2-9/16
Series
European
Type
Top
With Insert
Yes
Overview
- Adjustable pivot insert permits 3° of movement for precise door-to-jamb alignment
- 2-9/16" (65 mm) pivot setback for overhead concealed closer installations
- Fits 3/8" or 1/2" (10 or 12 mm) glass with supplied gaskets

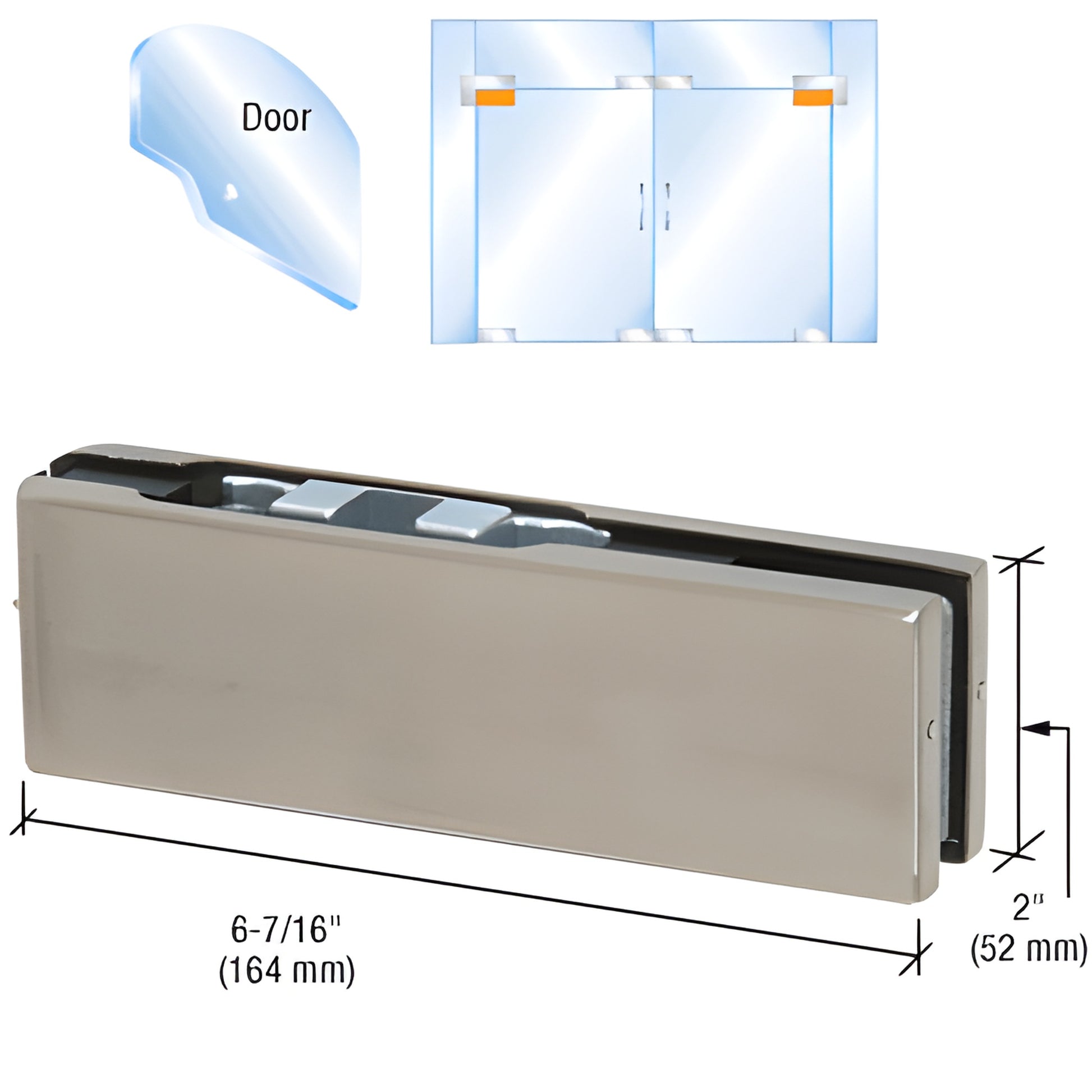

The CRL Adjustable Top Door Patch Fitting (SKU: PH21CBS) is a durable pivot patch fitting designed for frameless glass doors. Its adjustable pivot insert provides three degrees of movement to ensure proper alignment when paired with the CRL9970 Overhead Concealed Door Closer. Finished covers are available in five standard finishes. Gaskets are included so the fitting works with either 3/8" or 1/2" (10 or 12 mm) glass.
Glass fabrication required:
One 3/4" (19 mm) diameter hole and corner notch.
Comes with:
Template and instructions.
Product warning:
Not for use with laminated glass.
Guidelines for 1/2" glass doors using this hardware:
Maximum Height: 102" (2.59 m)
Maximum Weight: 176 lbs (80 kg)
Maximum Width: 42" (1.09 m)
If the door exceeds any of these limitations, full door rails should be used.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Ideal for frameless glass door installations requiring an adjustable top patch fitting compatible with the CRL9970 closer. Order PH21CBS or contact CRL for pricing and availability.
Specifications
CAD Drawings - dwg
