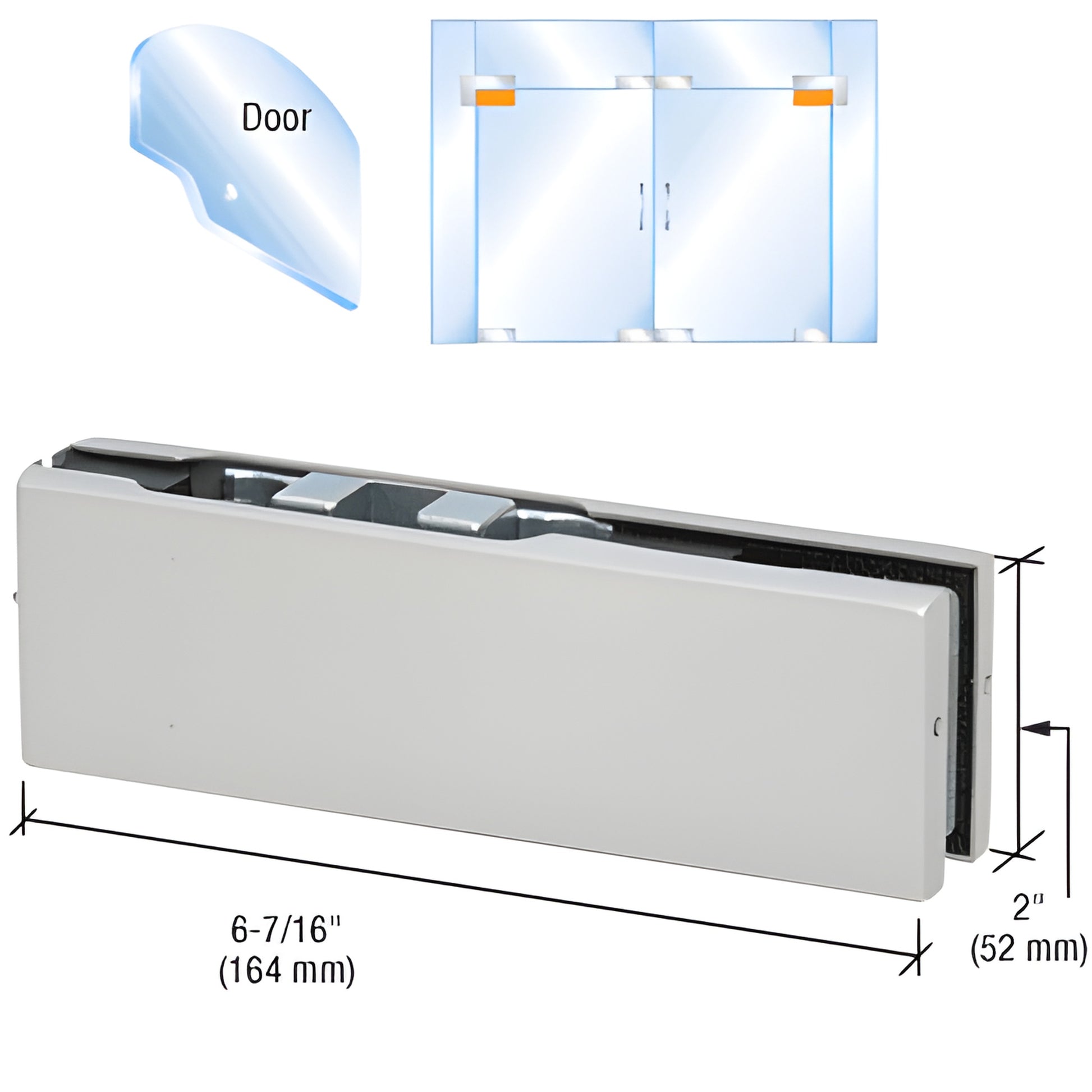

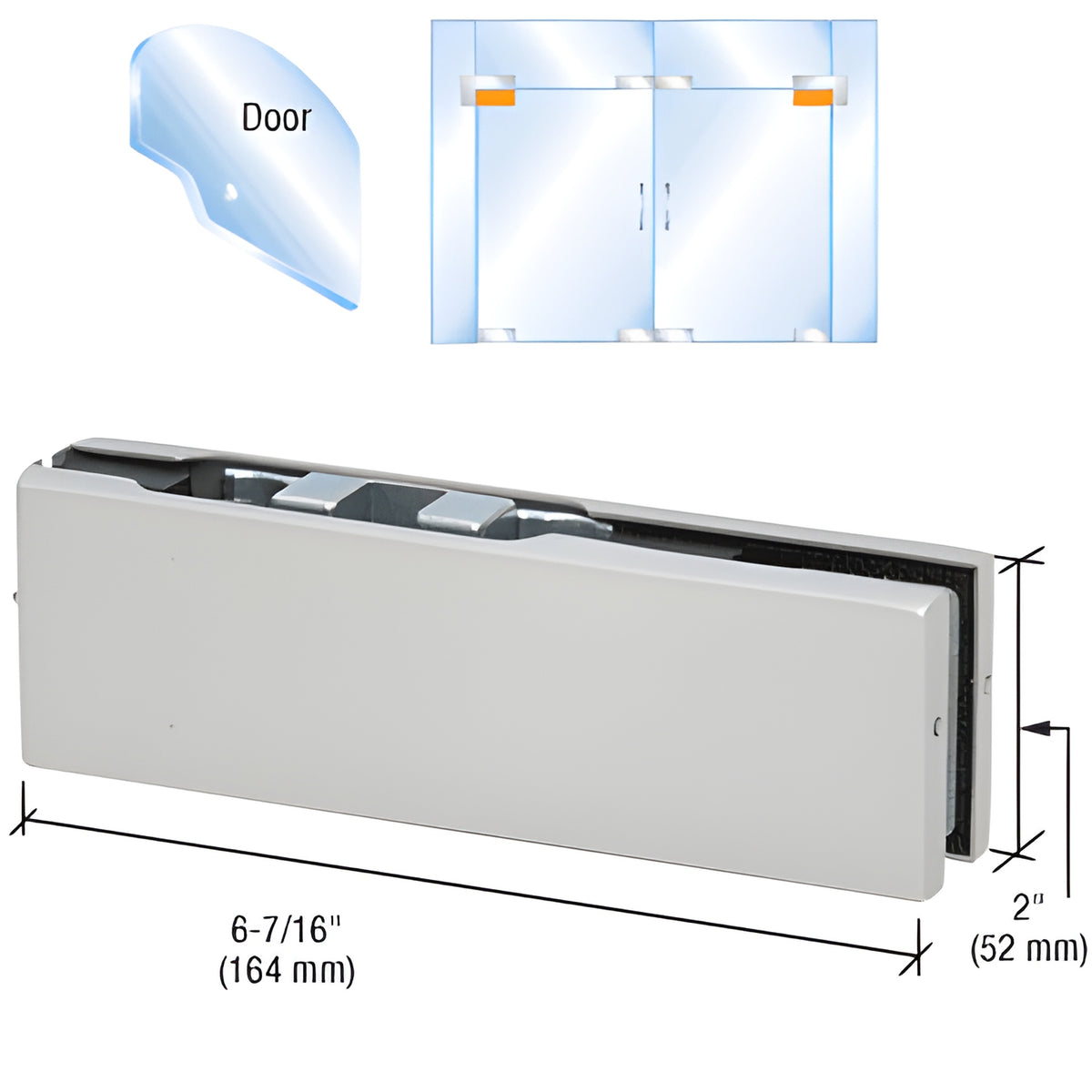

CRL Satin Anodized European Adjustable Top Patch for Glass Doors

• Adjustable pivot insert provides 3° of movement for precise door-to-jamb alignment
• 2-9/16" (65 mm) pivot setback
• Compatible with 3/8" or 1/2" (10 or 12 mm) glass

The CRL Adjustable Top Door Patch Fitting is a top pivot patch fitting for frameless glass doors that includes an adjustable pivot insert allowing three degrees of movement to align the door closed to the jamb. Designed for use with the CRL9970 Overhead Concealed Door Closer. Finished covers are available in five standard finishes, and supplied gaskets permit installation on either 3/8" or 1/2" (10 or 12 mm) glass.


If the door exceeds any of these limitations, full door rails should be used.

GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) diameter hole and corner notch

COMES WITH:
Template and instructions


Product Warning:

Not for use with laminated glass.

Guidelines for 1/2" glass doors using this hardware:

Maximum Height: 102" (2.59 m)
Maximum Weight: 176 lbs. (80 kg)
Maximum Width: 42" (1.09 m)

If the door exceeds any of these limitations, full door rails should be used.
