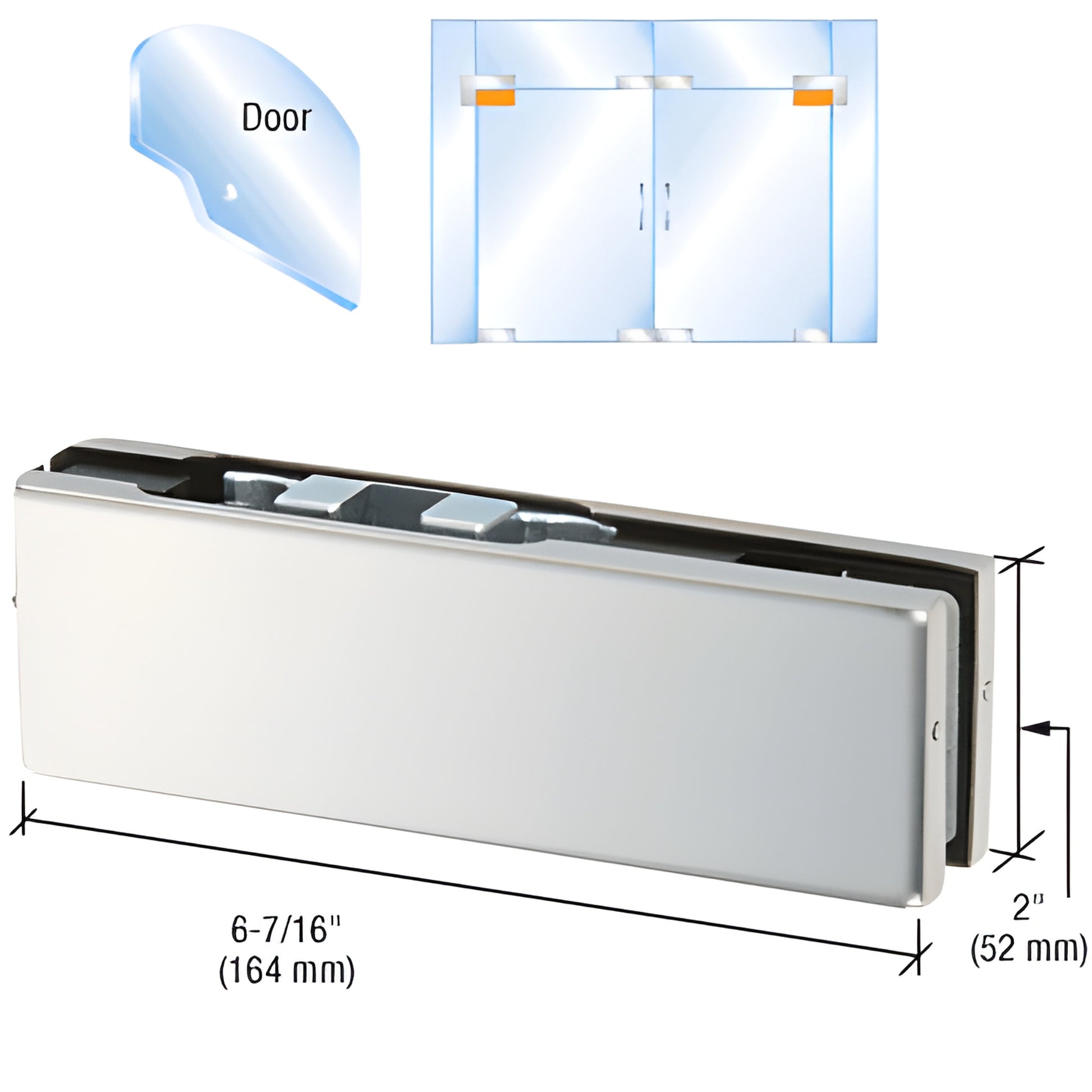

CRL Polished Stainless Steel Adjustable Top Glass Door Patch Fitting
CRL Polished Stainless Steel Adjustable Top Glass Door Patch Fitting
Regular price
$131.34 CAD
Regular price
Sale price
$131.34 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PH21CPS
Shipping Weight: 12.16 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 12.16 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Stainless Steel
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback
2-9/16
Series
European
Type
Top
With Insert
Yes
Overview
- Adjustable pivot insert allows three degrees of movement for proper door alignment
- 2-9/16" (65 mm) pivot setback
- Fits 3/8" or 1/2" (10 or 12 mm) glass
The CRL Adjustable Top Door Patch Fitting (SKU: PH21CPS) is a pivot patch fitting designed for frameless glass doors. The built-in adjustable pivot insert provides up to 3° of movement to align the glass door with the jamb when closed. Use with the CRL9970 Overhead Concealed Door Closer for a finished, concealed-top-door solution. Finished covers are offered in five standard finishes. Gaskets are included so the patch fitting accommodates either 3/8" or 1/2" (10 or 12 mm) glass.
If the door exceeds any of the limitations below, full door rails should be used.
GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) diameter hole and corner notch
COMES WITH:
Template and instructions
Product Warning:
These fittings are not for use with laminated glass.
Use the following guidelines when assembling a 1/2" glass door with this hardware:
Maximum Height: 102" (2.59 m)
Maximum Weight: 176 lbs. (80 kg)
Maximum Width: 42" (1.09 m)
If the door exceeds any of these limitations, full door rails should be used.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References for details.
Optimize your frameless glass door installation with this adjustable top door patch fitting—order SKU PH21CPS or contact CRL for technical assistance.
Specifications
CAD Drawings - dwg
