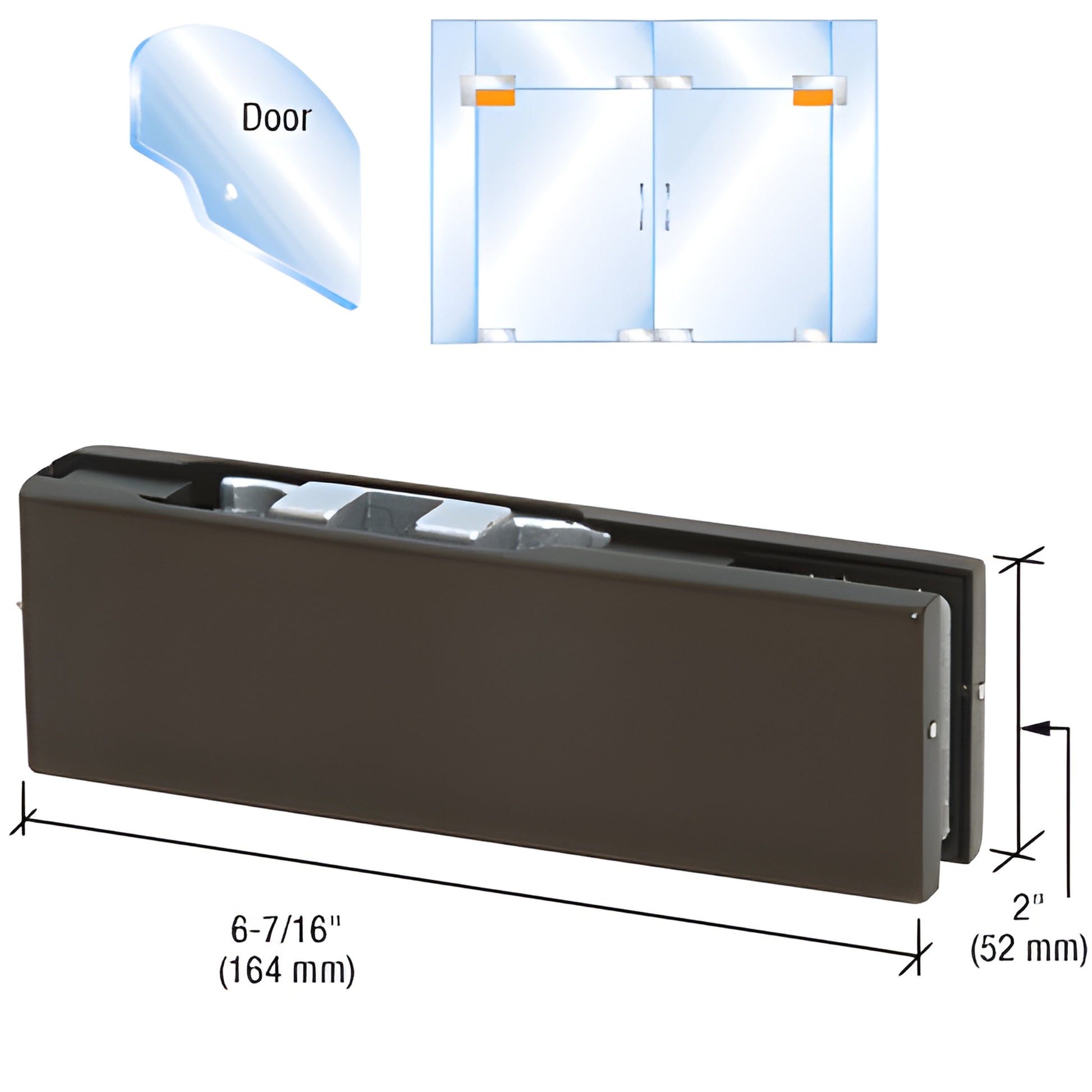

CRL Dark Bronze Adjustable European Top Patch Fitting for Glass Doors
Item# PH21CDU
Shipping Weight: 10.24 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 10.24 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Finish/Color
Black Bronze Anodized
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback
2-9/16
Series
European
Type
Top
With Insert
Yes
- Adjustable pivot insert allows 3° movement for precise door-to-jamb alignment
- 2-9/16" (65 mm) pivot setback
- Compatible with 3/8" or 1/2" (10 or 12 mm) glass
The CRL Adjustable Top Door Patch Fitting (SKU: PH21CDU) features an adjustable pivot insert that provides three degrees of movement to fine-tune alignment of glass doors with the jamb when closed. Designed for use with the CRL9970 Overhead Concealed Door Closer, this top patch fitting ships with gaskets to fit either 3/8" or 1/2" (10 or 12 mm) glass and has finished covers available in five standard finishes — a durable, low-profile solution for frameless glass door installations.
GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) diameter hole and corner notch
COMES WITH:
Template and instructions
Product Warning:
Not for use with laminated glass.
Guidelines for 1/2" glass doors when using this hardware:
Maximum Height: 102" (2.59 m)
Maximum Weight: 176 lbs (80 kg)
Maximum Width: 42" (1.09 m)
If the door exceeds any of these limitations, full door rails should be used.
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, contact CRL Customer Service before ordering. Product images are of the actual product or a close representation; colors may vary by monitor.
Why choose this adjustable top door patch fitting? It offers precise 3° pivot adjustment, compatibility with common glass thicknesses (3/8" and 1/2"), and simple installation with supplied template — ideal for frameless glass commercial and residential doors. Pair with CRL9970 overhead closers for concealed closing performance.
Add PH21CDU to your cart or contact us for technical support and finish availability.
CAD Drawings - dwg
