CRL Matte Black LH European Bottom Door Patch Fitting
CRL Matte Black LH European Bottom Door Patch Fitting
Regular price
$99.14 CAD
Regular price
Sale price
$99.14 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PH11ELMBL
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Finish/Color | Matte Black |
| Glazing Thickness | 3/8 in., 1/2 in. (10 mm, 12 mm) |
| Handing | Left Hand |
| Insert Type | 1NT305L |
| Pivot Setback | 2-9/16 |
| Series | European |
| Type | Bottom |
| With | Insert Yes |
Overview

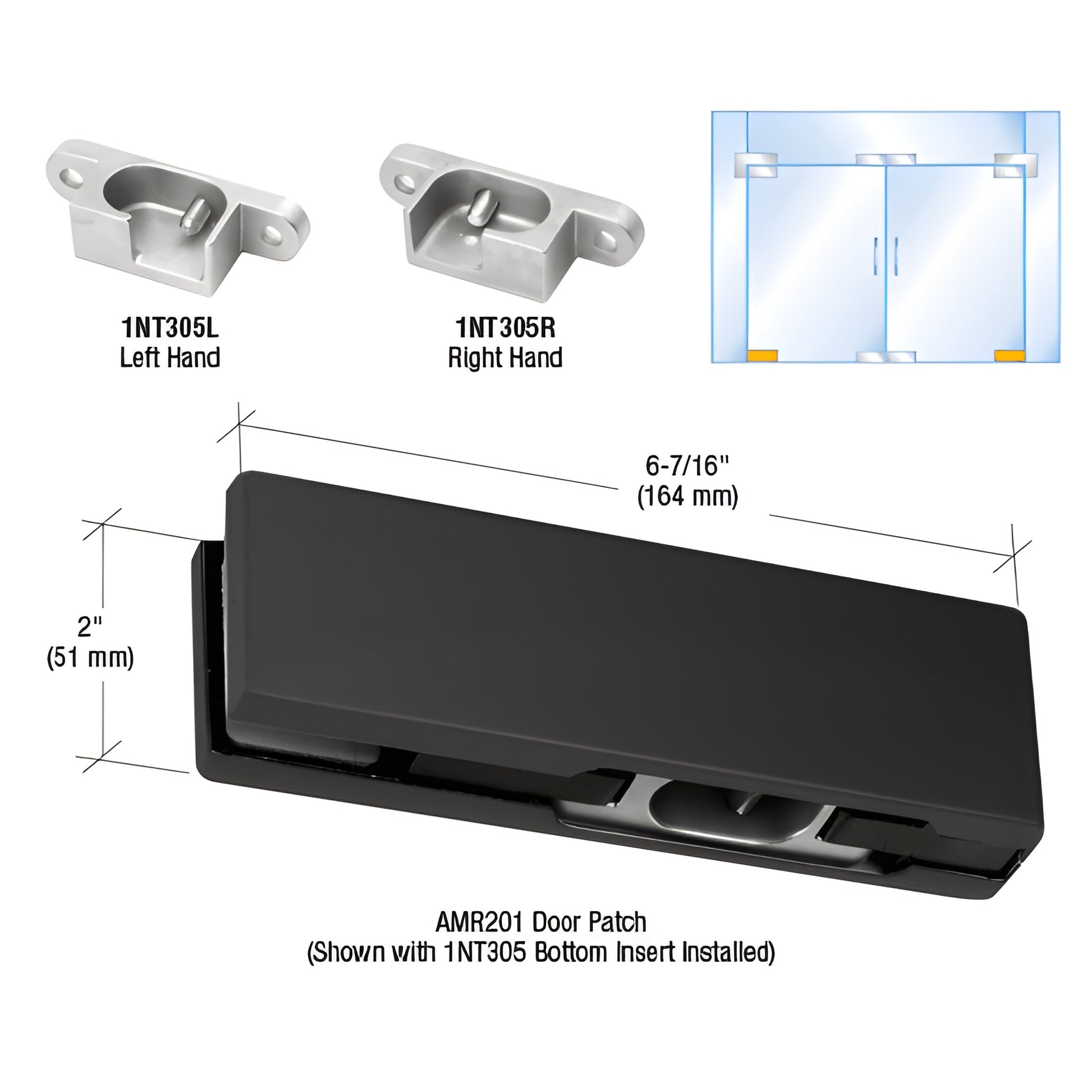

Discover our premium pivot set with a 2-9/16" (65 mm) setback, designed specifically for Herculite™+ Style Doors.
Compatible with 3/8" or 1/2" (10 or 12 mm) tempered glass, this product requires glass fabrication, including a 3/4" (19 mm) diameter hole and corner notch.
The set includes an AMR201 Door Patch, 1NT305L, 1NT305R Bottom Door Patch Inserts, and gaskets suitable for both glass thicknesses.
For optimal use, adhere to CRL's GANA Guidelines for door sizing.
Visit crlaurence.com for a detailed template and contact CRL Customer Service for precise shipping weights if needed.
Compatible with 3/8" or 1/2" (10 or 12 mm) tempered glass, this product requires glass fabrication, including a 3/4" (19 mm) diameter hole and corner notch.
The set includes an AMR201 Door Patch, 1NT305L, 1NT305R Bottom Door Patch Inserts, and gaskets suitable for both glass thicknesses.
For optimal use, adhere to CRL's GANA Guidelines for door sizing.
Visit crlaurence.com for a detailed template and contact CRL Customer Service for precise shipping weights if needed.
Specifications
CAD Drawings - pdf
CAD Drawings - dwg
