CRL Aluminum Left-Hand Offset Pivot Set for Glass Doors, 1/8 in Recess

CRL Aluminum Left-Hand Offset Pivot Set for Glass Doors, 1/8 in Recess

Regular price $34.07 CAD
Regular price Sale price $34.07 CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Item# 0P31LHA
Shipping Weight: 7.04 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Set
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Bottom Door Clearance Adjustment
1/8 in. (3.2 mm)
Door Weight
125 lbs. (56.7 kg)
Entry Trim
Unavailable
Field Sizeable
Yes
Finish/Color
Aluminum
Handing
Left Hand
Material
Aluminum
Pivot Series
OP31
Pivot Set
Yes
Pivot Style
1/8 in. Recess (3 mm Recess)
Pivot Type
Offset
Recommended Door Type
Aluminum Store Front

Overview

  • 1/8" (3 mm) vertical adjustment
  • Die-cast aluminum construction
  • Suitable for aluminum frames and doors weighing up to 125 lbs (57 kg)
  • Handed — not reversible (left or right available)
  • Used on: Arcadia, Arch Aluminum, Tubelite, Vistawall

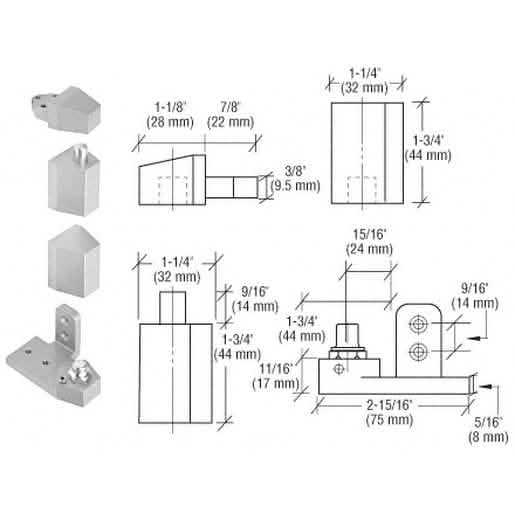

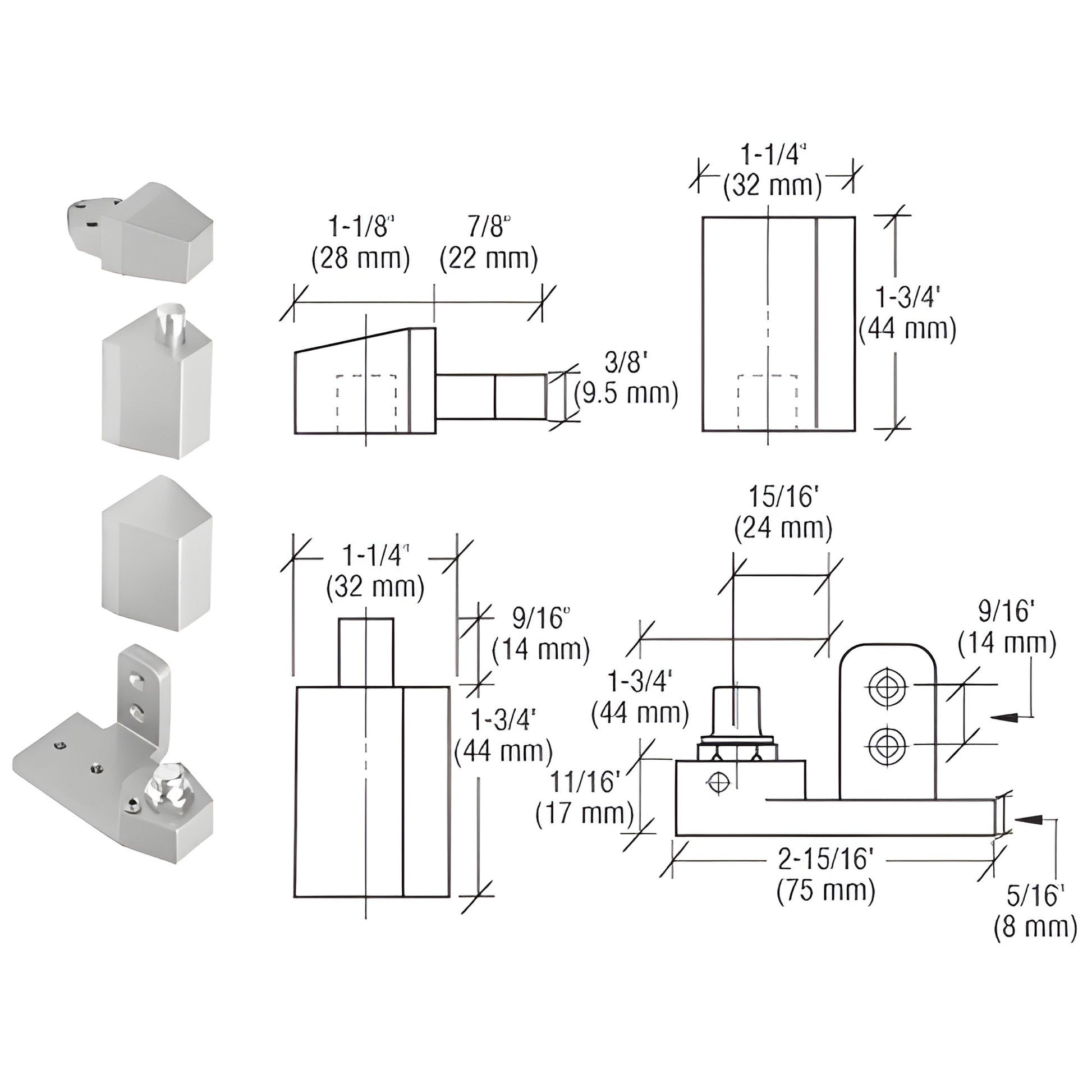

CRL Offset Pivot Sets for commercial doors feature precision machined and die-cast components packaged complete with door fasteners and anchors. Illustrated dimensions simplify selection. Available in satin aluminum and dark bronze finishes. One set per package. SKU: 0P31LHA. These commercial aluminum door offset pivot sets support doors up to 125 lb and are ideal for storefronts, curtain wall entrances, and aluminum frame installations.

Product Warning:
For doors up to 125 pounds.

Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and monitor settings.


Need help selecting the correct pivot set for your aluminum commercial door? Contact CRL Customer Service or add SKU 0P31LHA to your cart to order now.
