CRL Left-Hand Aluminum Offset Door Pivot Set 1/8in Recess
CRL Left-Hand Aluminum Offset Door Pivot Set 1/8in Recess
Regular price
$52.53 CAD
Regular price
Sale price
$52.53 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0P50LHA
Shipping Weight: 1.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Set
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Set
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Bottom Door Clearance Adjustment
1/8 in. (3.2 mm)
Door Weight
125 lbs. (56.7 kg)
Entry Trim
9500LV02628,9500LV01628,9500EL02628,9500EL01628
Field Sizeable
Yes
Finish/Color
Aluminum
Handing
Left Hand
Material
Aluminum
Pivot Series
OP50
Pivot Set
Yes
Pivot Style
1/8 in. Recess (3 mm Recess)
Pivot Type
Offset
Recommended Door Type
Aluminum Store Front
Overview
- 1/8" (3 mm) vertical adjustment for precise door alignment
- Diecast aluminum construction for commercial durability
- Suitable for aluminum frames and doors weighing up to 125 lbs. (57 kg)
- Handed — not reversible (left or right hand pivot sets available)
- Used on: Arch Aluminum® doors

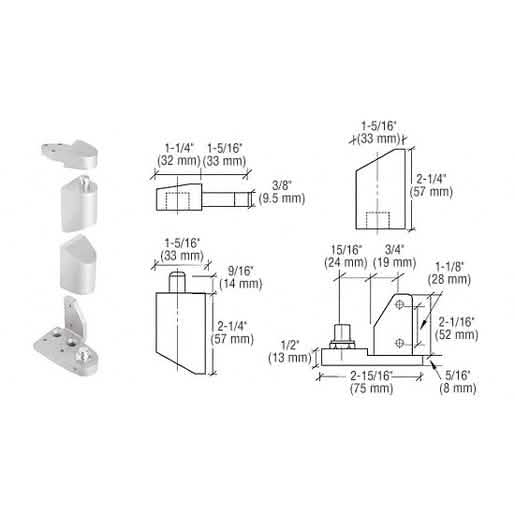

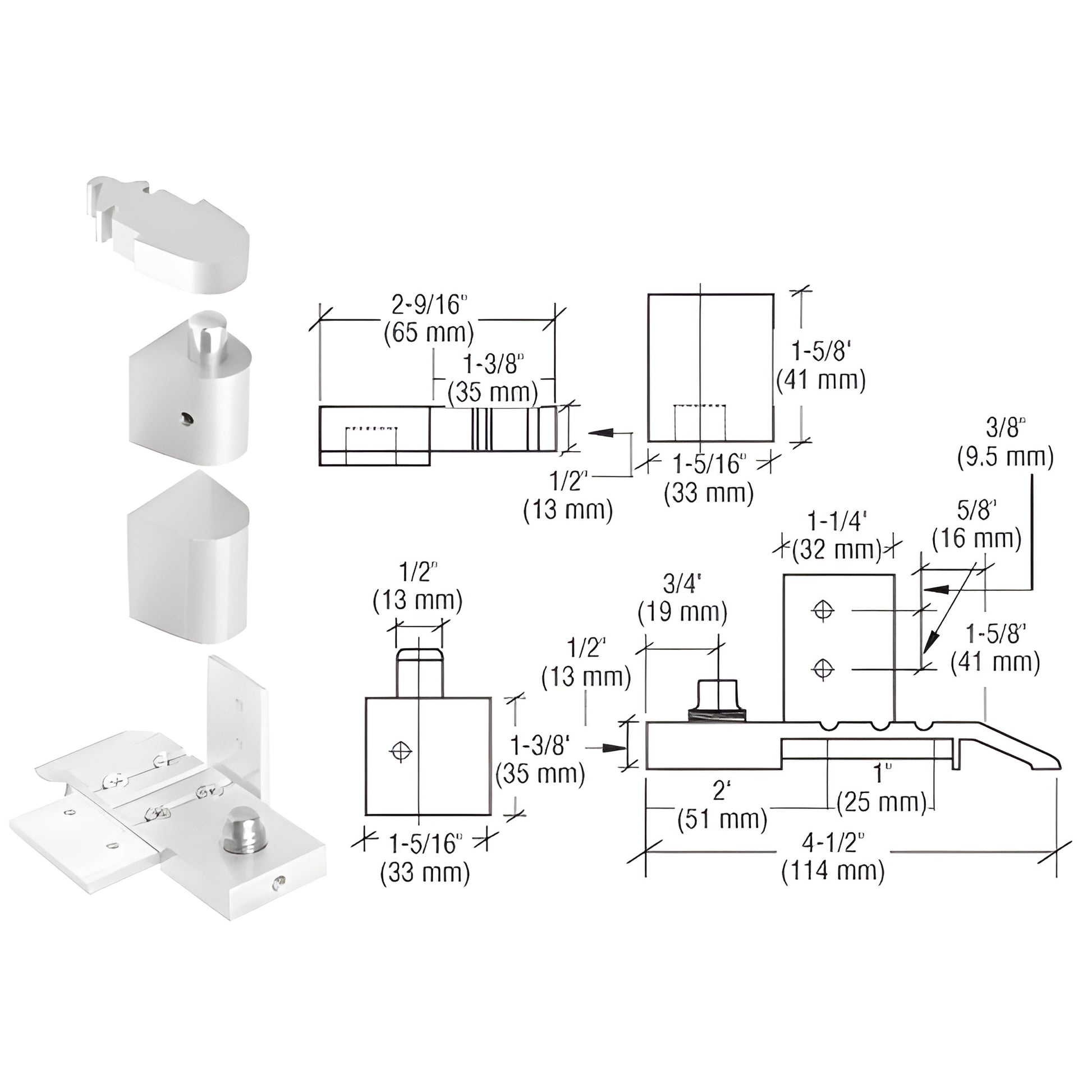

CRL Offset Pivot Sets provide a complete commercial door pivot solution—machined and diecast components, door fasteners, and anchors all in one box. Illustrated dimensions simplify selection. Available in satin aluminum and dark bronze finishes. One set per package. SKU: 0P50LHA.
Order this commercial offset pivot set for Arch Aluminum doors (SKU 0P50LHA) today to ensure reliable performance and easy installation.
