CRL Aluminum Offset Right Hand Pivot Set with 1/8" Recess

CRL Aluminum Offset Right Hand Pivot Set with 1/8" Recess

$47.94 CAD
$47.94 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 0P31RHA
Shipping Weight: 1.0 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Set
View full details

Product Information

Description

Bottom Door Clearance Adjustment1/8 in. (3.2 mm)1/8 in. (3.2 mm)
Door Weight125 lbs. (56.7 kg)125 lbs. (56.7 kg)
Entry TrimUnavailableUnavailable
Field SizeableYesYes
Finish/Color:AluminumAluminum
HandingRight HandRight Hand
MaterialAluminumAluminum
Pivot SeriesOP31OP31
Pivot SetYesYes
Pivot Style1/8 in. Recess (3 mm Recess)1/8 in. Recess (3 mm Recess)
Pivot TypeOffsetOffset
Recommended Door TypeAluminum Store FrontAluminum Store Front

Overview

  • 1/8" (3 mm) Vertical Adjustment
  • Die Cast Aluminum
  • Suitable for Aluminum Frames and Doors Weighing Up to 125 Lbs. (57 kg)
  • Handed - Not Reversible
  • Used On: Arcadia, Arch Aluminum, Tubelite, Vistawall

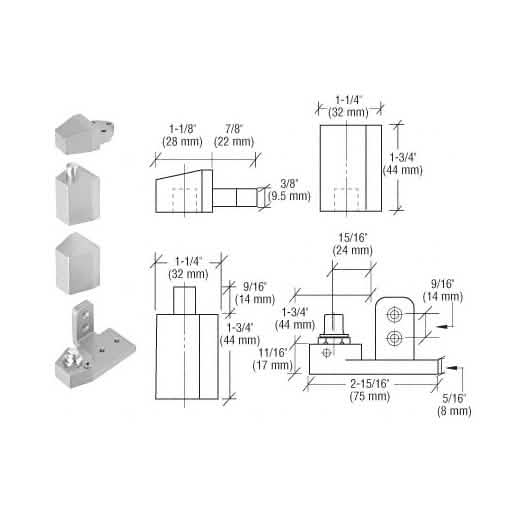

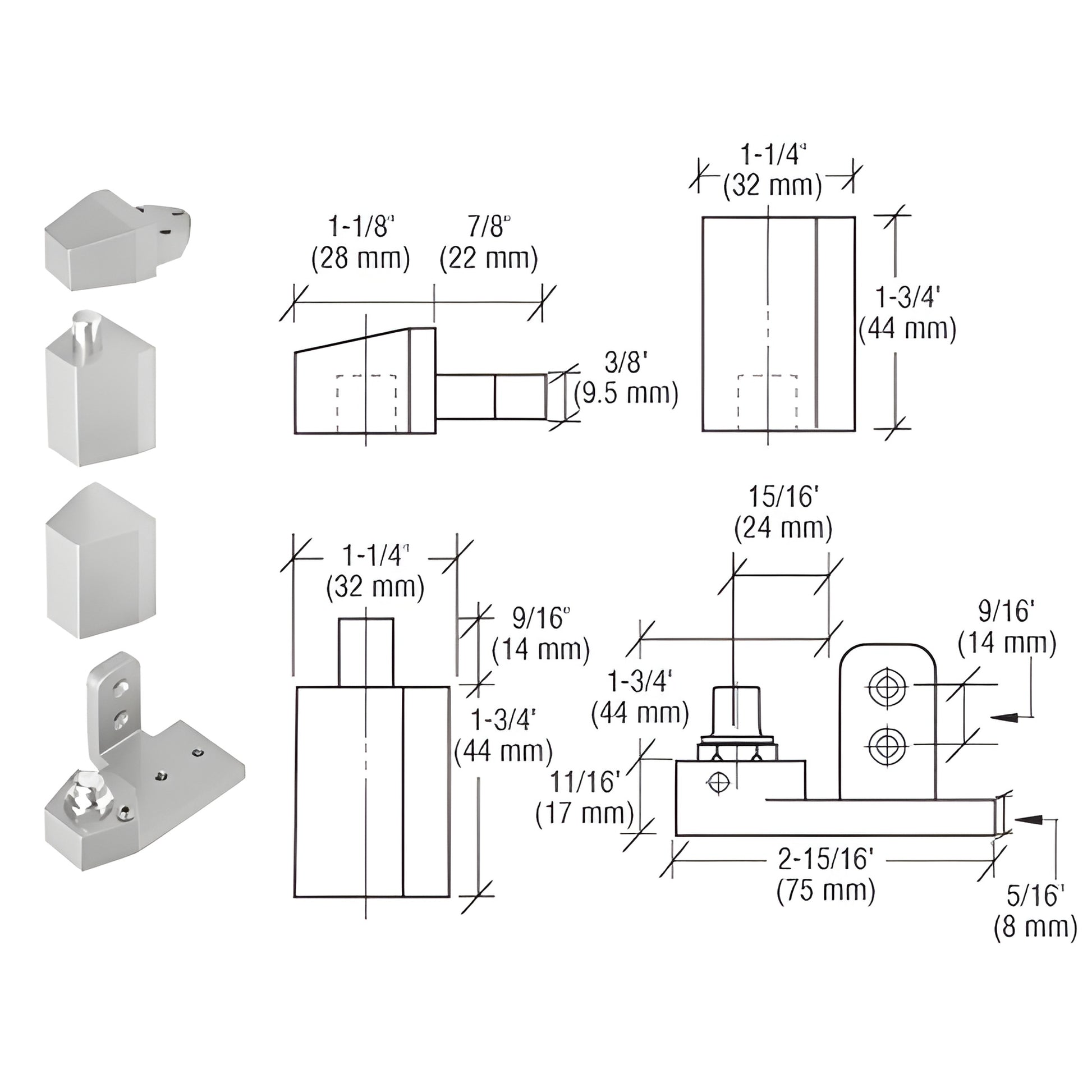

CRL Offset Pivot Sets for commercial doors feature quality machined and diecast components in combinations to accommodate just about any commercial door. Everything you need comes in one box, including the door fasteners and anchors. Each has been illustrated with dimensions for ease of selection. Left or right hand pivot sets are available in satin aluminum and dark bronze finishes. One set per package.

Product Warning:

For doors up to 125 lbs.
