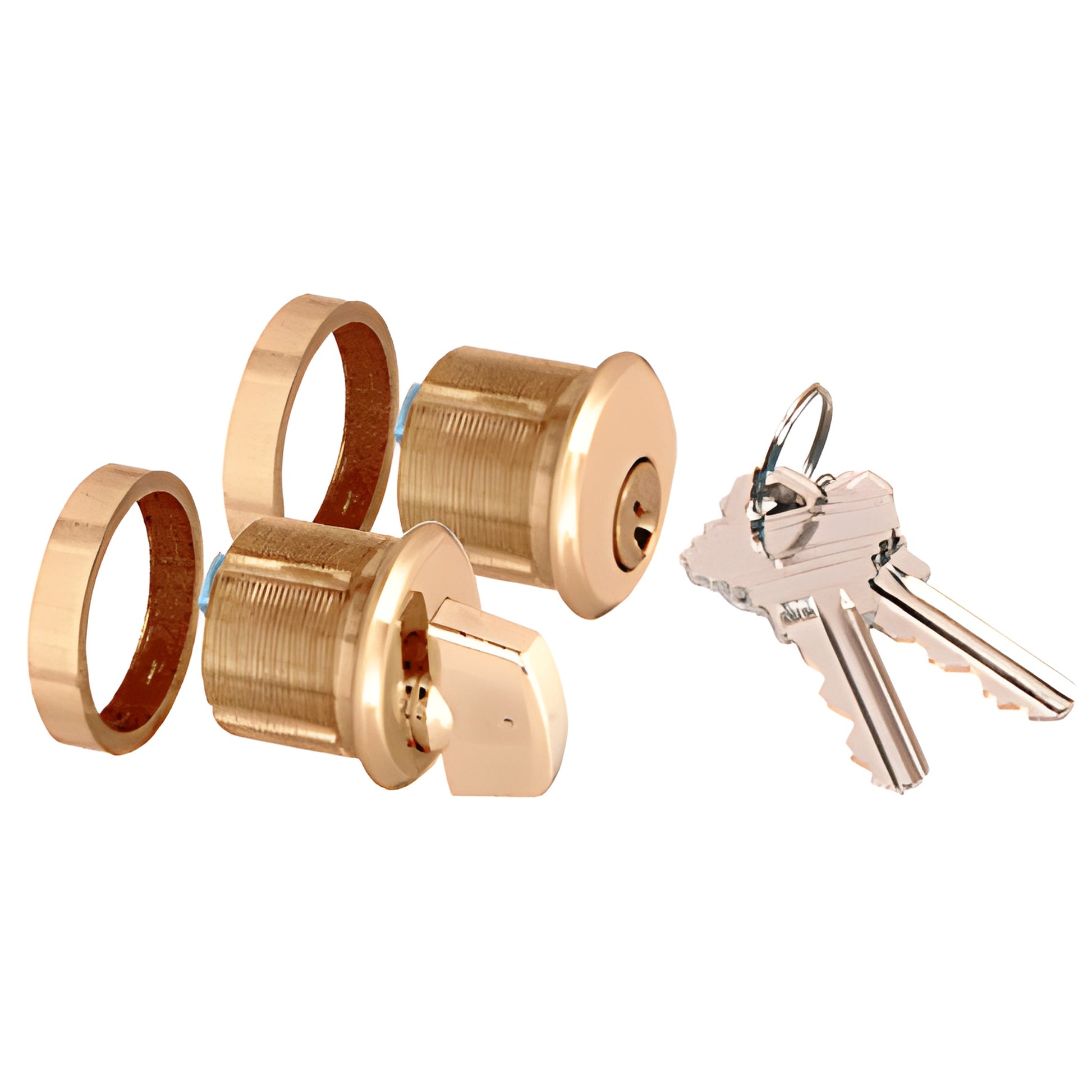

• Polished brass American-style patch lock cylinders and keys for frameless glass doors, includes rings - AMR205CTBR
1 1

CRL

CRL AMR Brass Keyed Cylinder with Thumbturn Door Lock

CRL AMR Brass Keyed Cylinder with Thumbturn Door Lock

$59.96 CAD
$59.96 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# AMR205CTBR
Shipping Weight: 6.72 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Diameter
1-5/32 in. (29 mm)
Finish/Color
Polished Brass

Overview

  • High-density cast body with integrated lock mechanism
  • Includes gaskets for 3/8" or 1/2" (10 or 12 mm) glass
  • Available in five architectural finishes

CRL American Style Patch Lock (SKU: AMR205CTBR) is a versatile glass door patch lock designed for frameless glass doors. It mounts top or bottom, or on the vertical edge of a door and secures to a jamb using the supplied Keeper. For sidelite or glass-panel installations use the AMR206 Sidelite Mount Keeper. Optional keepers such as AMR207 and AMR208 accommodate most installation types.


Optional cylinders: AMR205CC double-keyed or AMR205CT single-keyed cylinder with thumbturn.


GLASS FABRICATION REQUIRED:

Top or Bottom Mount:
One 3/4" (19 mm) diameter hole and one corner notch

Side Mount:
One 3/4" (19 mm) diameter hole and one U-cutout (hole on top)


COMES WITH:
Template and instructions


DOES NOT INCLUDE:
Double keyed cylinders; keyed cylinder/thumbturn; optional keepers (must be ordered separately)


DOUBLE DOOR APPLICATION:
For double door installations, a bottom patch lock is required on the inactive leaf to properly secure the pair.

Most shipping weights are approximate and unverified. If exact weight is required to calculate shipping costs, contact CRL Customer Service before ordering. Product images are representative; actual colors may vary with monitor settings.

Brass Finish Advisory:
Brass is durable but prone to oxidation, which can cause a tarnished appearance over time regardless of packaging or storage. See the Brass Finish Disclaimer in Technical References for care and maintenance.

Specifications

Cleaning & Maintenance
Brass Finish Disclaimer
