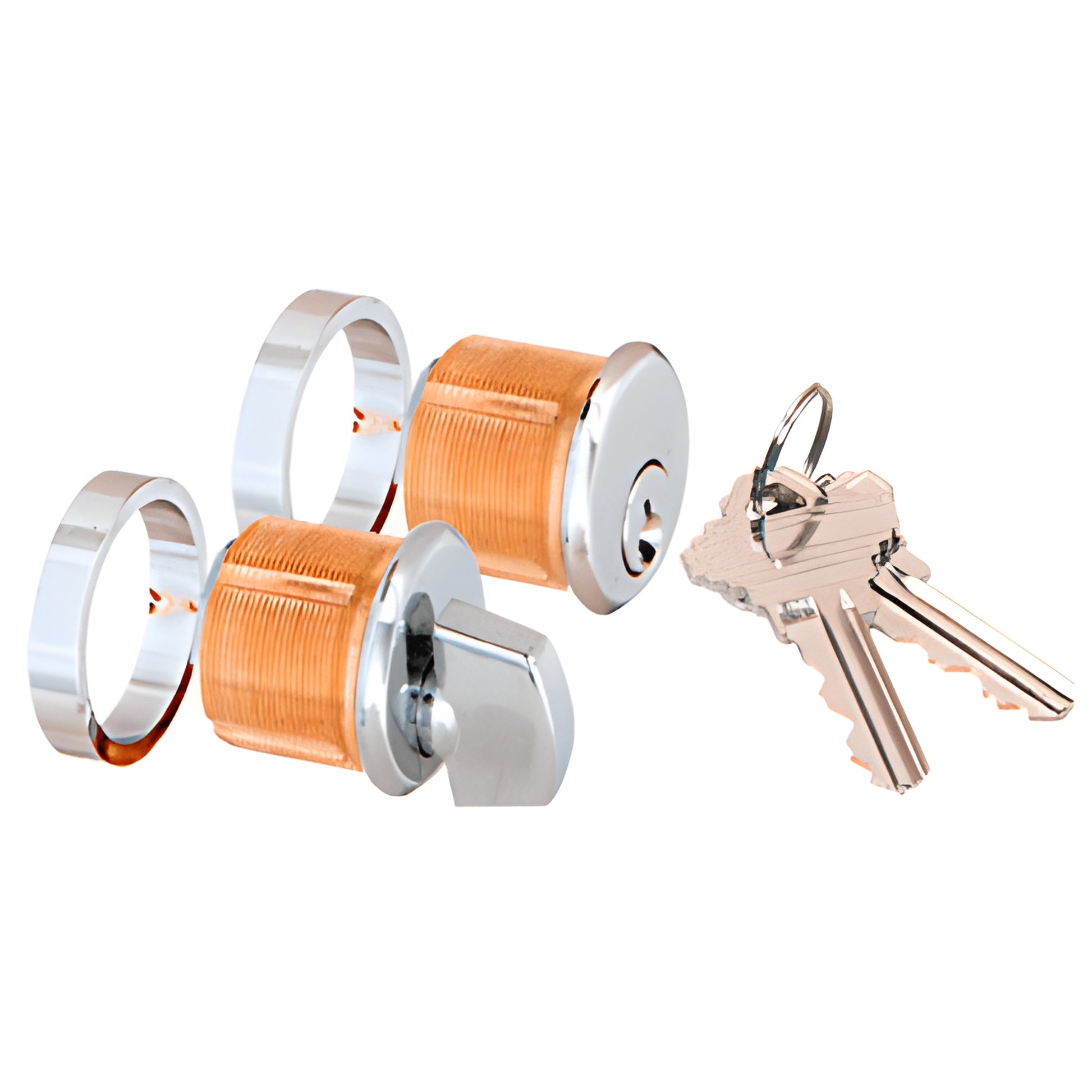

CRL AMR215 Polished SS Keyed Cylinder & Thumbturn for Patch Lock
CRL AMR215 Polished SS Keyed Cylinder & Thumbturn for Patch Lock
Regular price
$58.52 CAD
Regular price
Sale price
$58.52 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# AMR215CTPS
Shipping Weight: 5.76 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 5.76 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Diameter
1-5/32 in. (29 mm)
Finish/Color
Polished Stainless Steel
Overview
- High-density cast body with secure lock mechanism
- Compression gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass
- Available in five architectural finishes
The American Style Patch Lock (SKU: AMR215CTPS) is a heavy-duty patch lock designed for commercial and residential frameless glass doors. Its taller profile secures more glass inside the lock housing for increased resistance to forced entry. Intended for top and bottom corner applications only, this patch lock accepts either double-keyed cylinders or keyed cylinder/thumbturns (ordered separately). A keeper is supplied; optional keepers are available to fit most installations.
GLASS FABRICATION REQUIRED:
Top or Bottom Mount:
One 3/4" (19 mm) diameter hole and one corner notch in the glass
COMES WITH: Template and instructions
DOES NOT INCLUDE:
Double-keyed cylinders; keyed cylinder/thumbturn; optional keepers (must be ordered separately)
DOUBLE DOOR APPLICATION:
For double-door installations, a bottom patch lock is required on the inactive leaf to properly secure the door pair.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Key differentiators: heavy-duty cast body, taller locking profile for added security, compatible with 3/8" or 1/2" glass, five architectural finishes. Order AMR215CTPS or contact CRL Customer Service to confirm fit and finish.
