CRL B5S Series Mill 120" Square Base Shoe Fascia Mount for 1/2" Glass

CRL B5S Series Mill 120" Square Base Shoe Fascia Mount for 1/2" Glass

$1,539.09 CAD
$1,539.09 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# B5S10F6
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
This Product Ships Free!
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
View full details

Product Information

Description

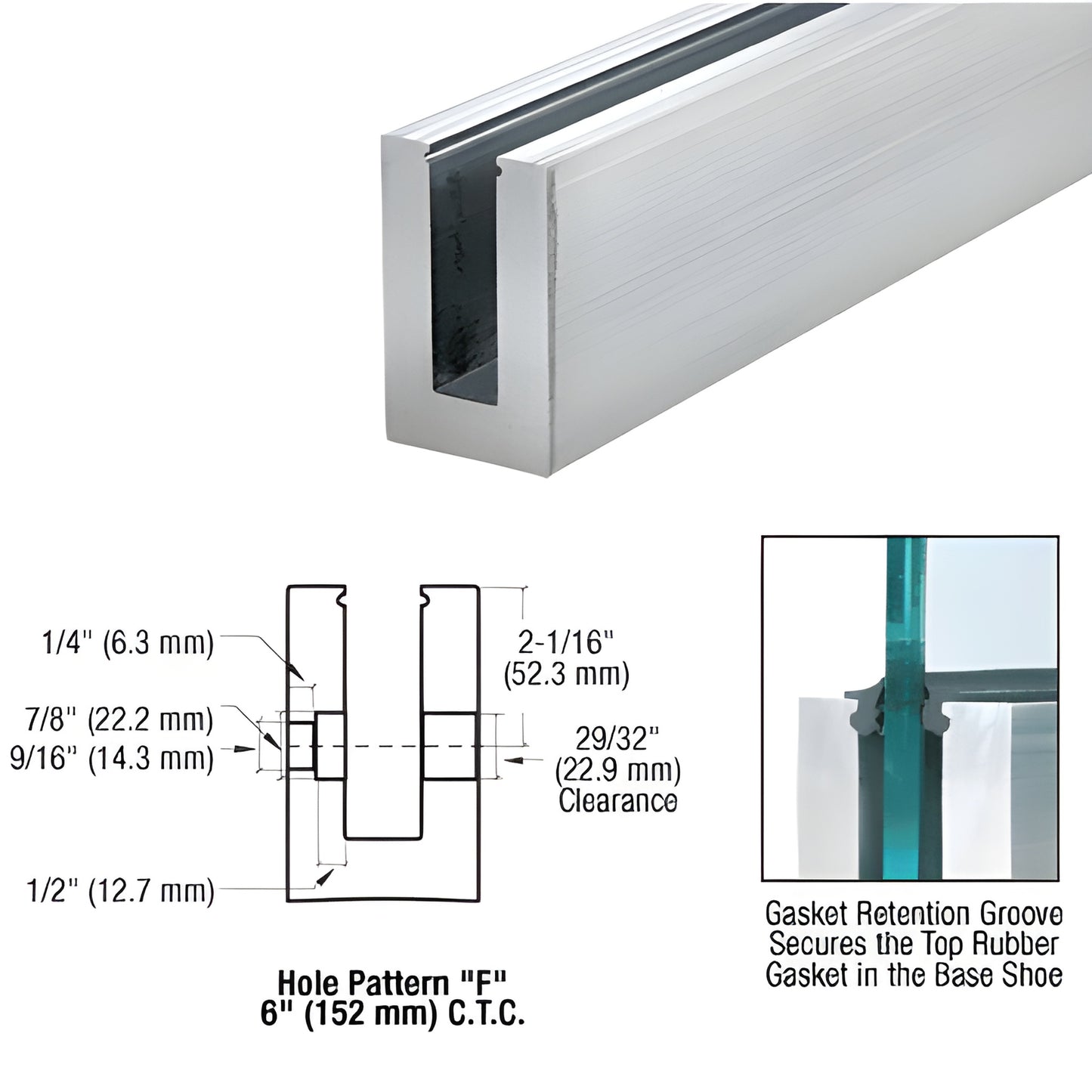

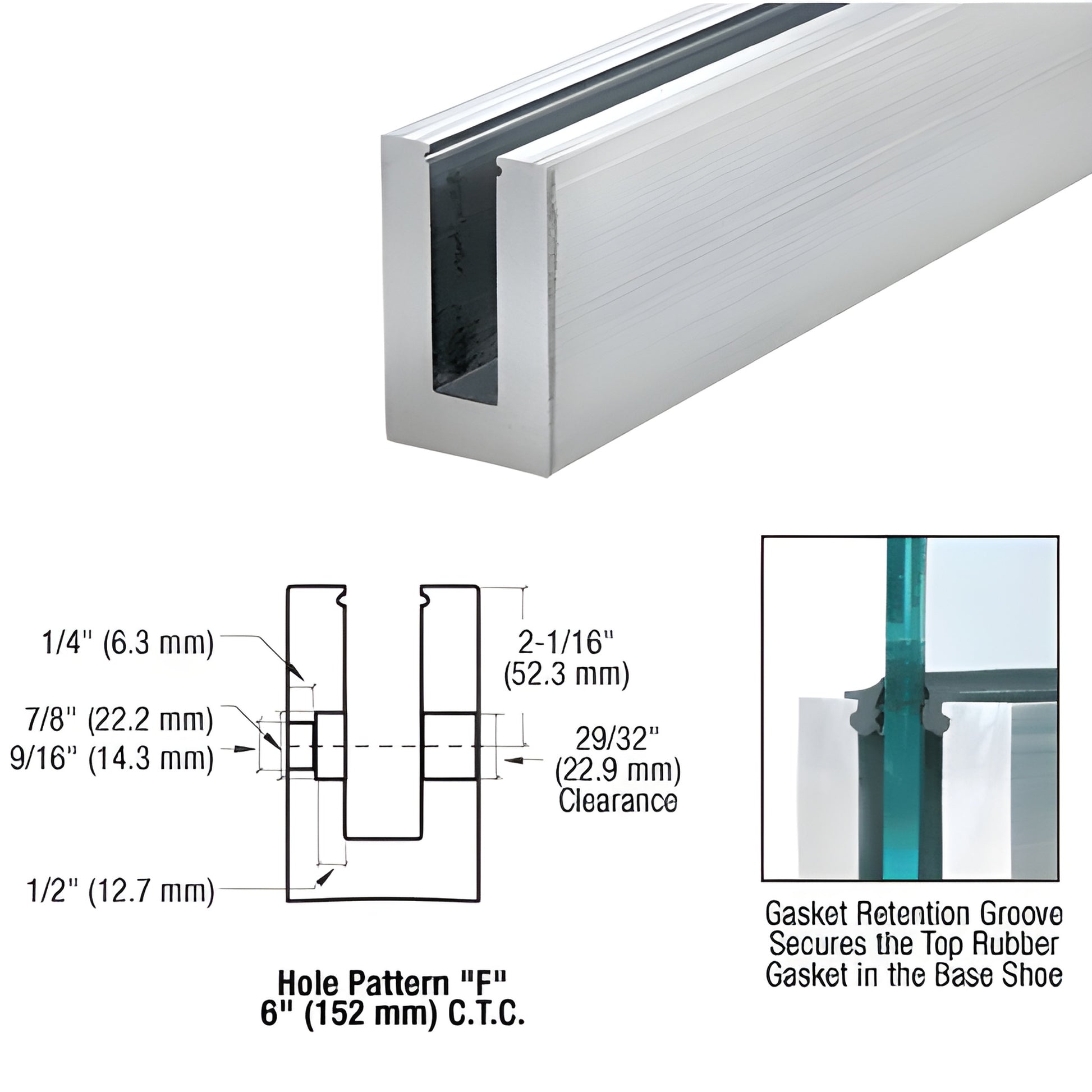

Drilling Center To Center 6 in.(152 mm)
Finish/ColorMill
Glazing Thickness1/2 in. (13 mm)
GlazingType Monolithic
Length 120 in.(3048 mm)
MaterialAluminum

Overview

The CRL B5S Series Standard Square Base Shoe is an essential component for glass railing systems, designed for use with 1/2" (12 mm) Monolithic Tempered Glass.
Ideal for applications like glass railings and windscreens, this base channel meets NBC load requirements when installed according to ICC-3269 standards.
Custom drilling and mitering services are available, ensuring the precise fit of your glass railing system.
For optimal performance, use powder-coated cladding over the base shoe, and consult the comprehensive installation brochure for guidance.
Please note, accurate shipping weights can be obtained by contacting CRL Customer Service prior to order submission.
