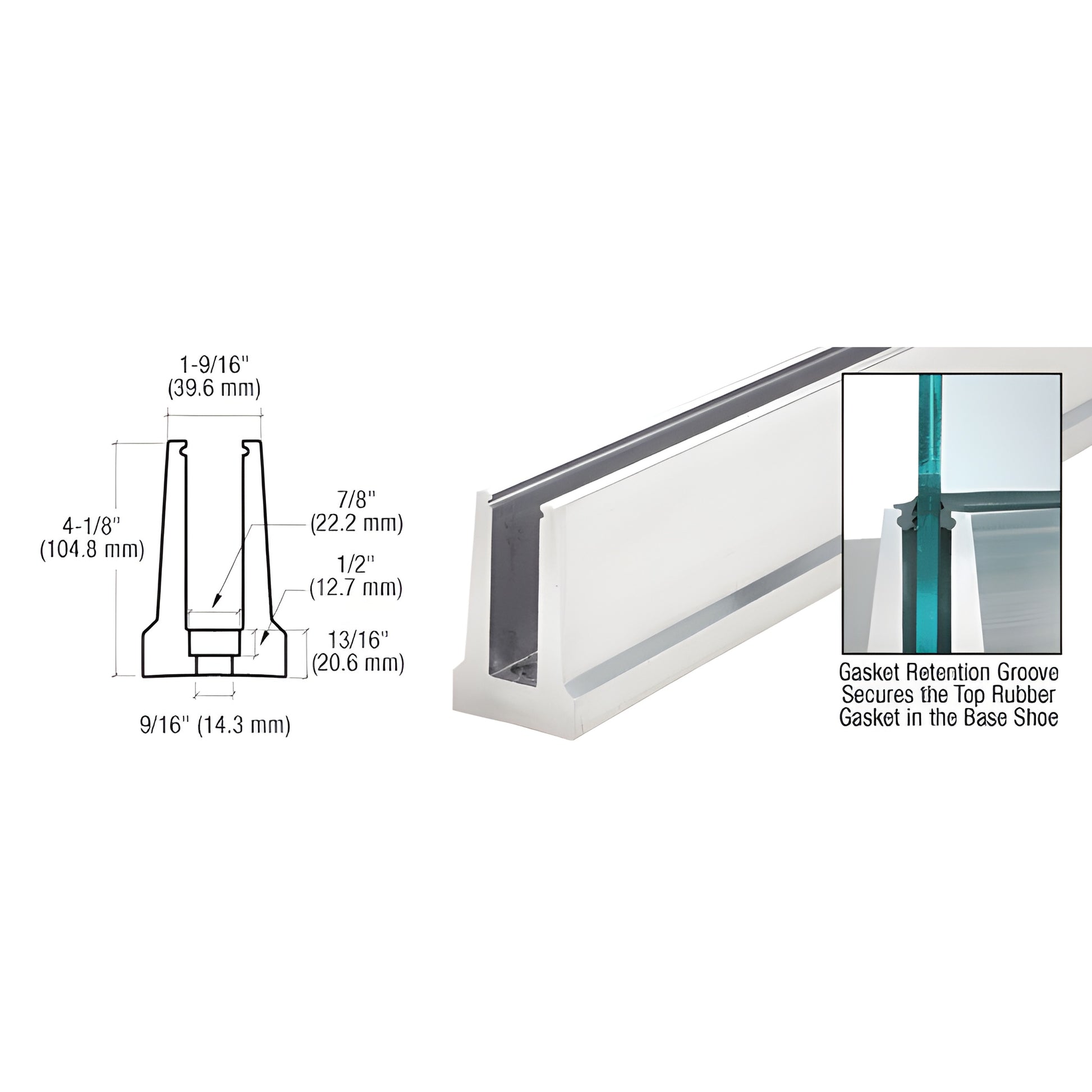

CRL B5T Series Mill Aluminum 120" Tapered Base Shoe Drilled for 1/2" Glass
CRL B5T Series Mill Aluminum 120" Tapered Base Shoe Drilled for 1/2" Glass
Regular price
$741.68 CAD
Regular price
Sale price
$741.68 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# B5T10D
Shipping Weight: 56.5 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 56.5 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Drilling Center To Center 12 in. | (305 mm) |
| Finish/Color | Mill |
| Glazing Thickness | 1/2 in. (13 mm) |
| Glazing | Type Monolithic |
| Height 4-1/8 in. | (105 mm) |
| Length 120 in. | (3048 mm) |
| Material | Aluminum |
| Profile | Drilled |
Overview
The CRL B5T Tapered Base Shoe is an essential component for glass railing systems, designed specifically for 1/2" (12 mm) monolithic tempered glass.
This base channel is ideal for flush installations embedded in concrete, ensuring a sleek and secure fit.
Engineered with precision, it meets NBC load requirements when installed according to ICC-3269 standards.
The base shoe is available in six architectural finishes and comes with a custom cutting and mitering service, plus a comprehensive installation brochure.
Note: Direct powder coating is not recommended; instead, opt for powder-coated cladding for best results.
For custom drilling and shipping weight inquiries, contact CRL Customer Service.
This base channel is ideal for flush installations embedded in concrete, ensuring a sleek and secure fit.
Engineered with precision, it meets NBC load requirements when installed according to ICC-3269 standards.
The base shoe is available in six architectural finishes and comes with a custom cutting and mitering service, plus a comprehensive installation brochure.
Note: Direct powder coating is not recommended; instead, opt for powder-coated cladding for best results.
For custom drilling and shipping weight inquiries, contact CRL Customer Service.
