CRL B5T Series Mill Aluminum 240" Tapered Base Shoe Drilled for 1/2" Glass
CRL B5T Series Mill Aluminum 240" Tapered Base Shoe Drilled for 1/2" Glass
Regular price
$1,464.85 CAD
Regular price
Sale price
$1,464.85 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# B5T20D
Shipping Weight: 113.0 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 113.0 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Drilling Center To Center 12 in. | (305 mm) |
| Finish/Color | Mill |
| Glazing Thickness | 1/2 in. (13 mm) |
| Glazing | Type Monolithic |
| Length 240 in. | (6096 mm) |
| Material | Aluminum |
Overview

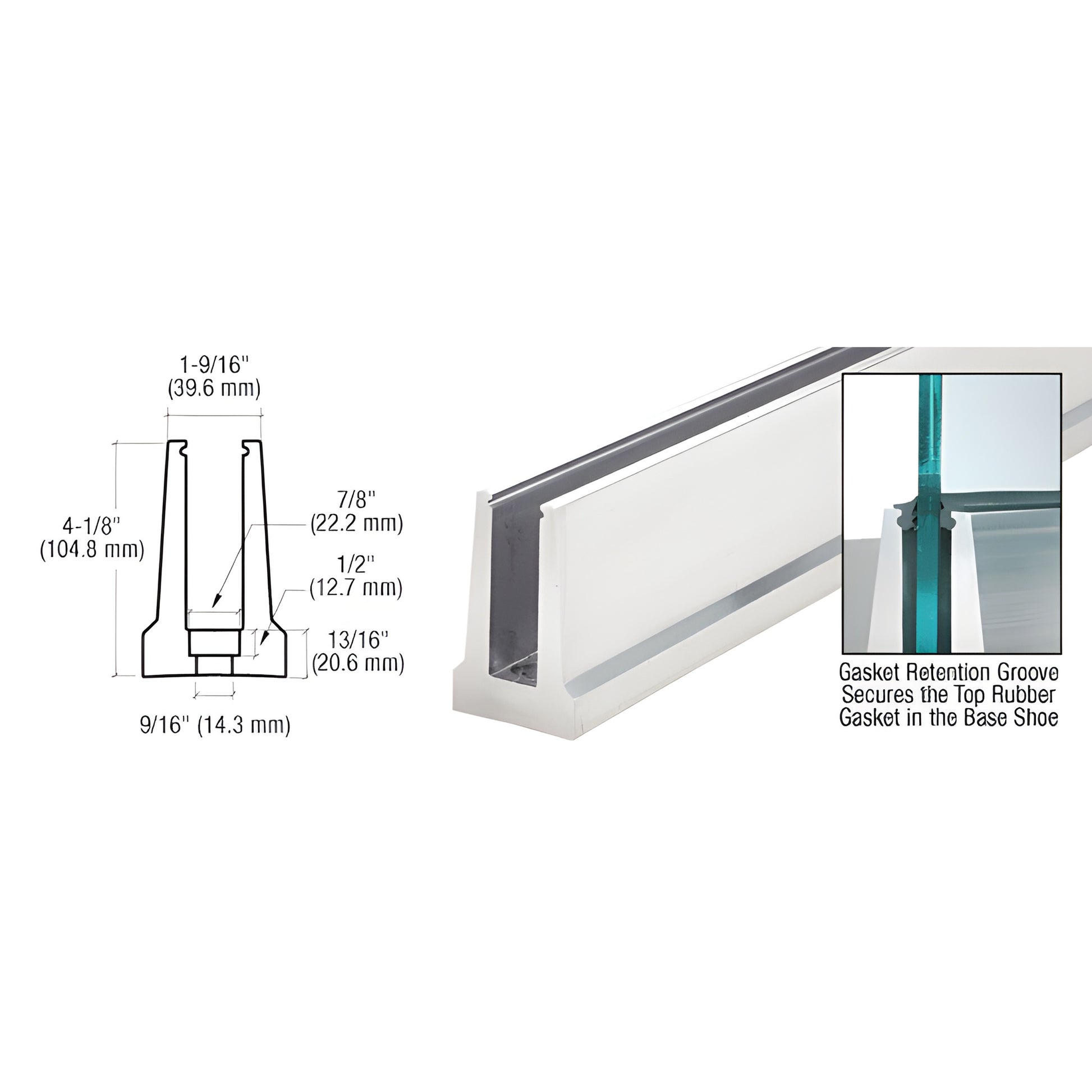

The CRL B5T Tapered Base Shoe is expertly designed for use as a base channel in glass railing systems, perfect for 1/2" (12 mm) monolithic tempered glass installations.
It works seamlessly with TL5X10 TAPER-LOC® 'X' Taper S, providing a sleek, flush installation embedded in concrete.
Customizable with six architectural finishes, this base shoe comes drilled and counter bored at 12" (305 mm) center-to-center, with custom drilling available to meet your specifications.
Engineered to meet NBC load requirements when installed according to ICC-3269, CRL offers comprehensive installation instructions, including a brochure with cleaning and refinishing tips.
Note: Direct powder coating is not recommended; instead, apply powder-coated cladding over the base shoe for optimal results.
It works seamlessly with TL5X10 TAPER-LOC® 'X' Taper S, providing a sleek, flush installation embedded in concrete.
Customizable with six architectural finishes, this base shoe comes drilled and counter bored at 12" (305 mm) center-to-center, with custom drilling available to meet your specifications.
Engineered to meet NBC load requirements when installed according to ICC-3269, CRL offers comprehensive installation instructions, including a brochure with cleaning and refinishing tips.
Note: Direct powder coating is not recommended; instead, apply powder-coated cladding over the base shoe for optimal results.
Specifications
Installation Instructions
Quote Request Forms
Engineering & Test Reports
