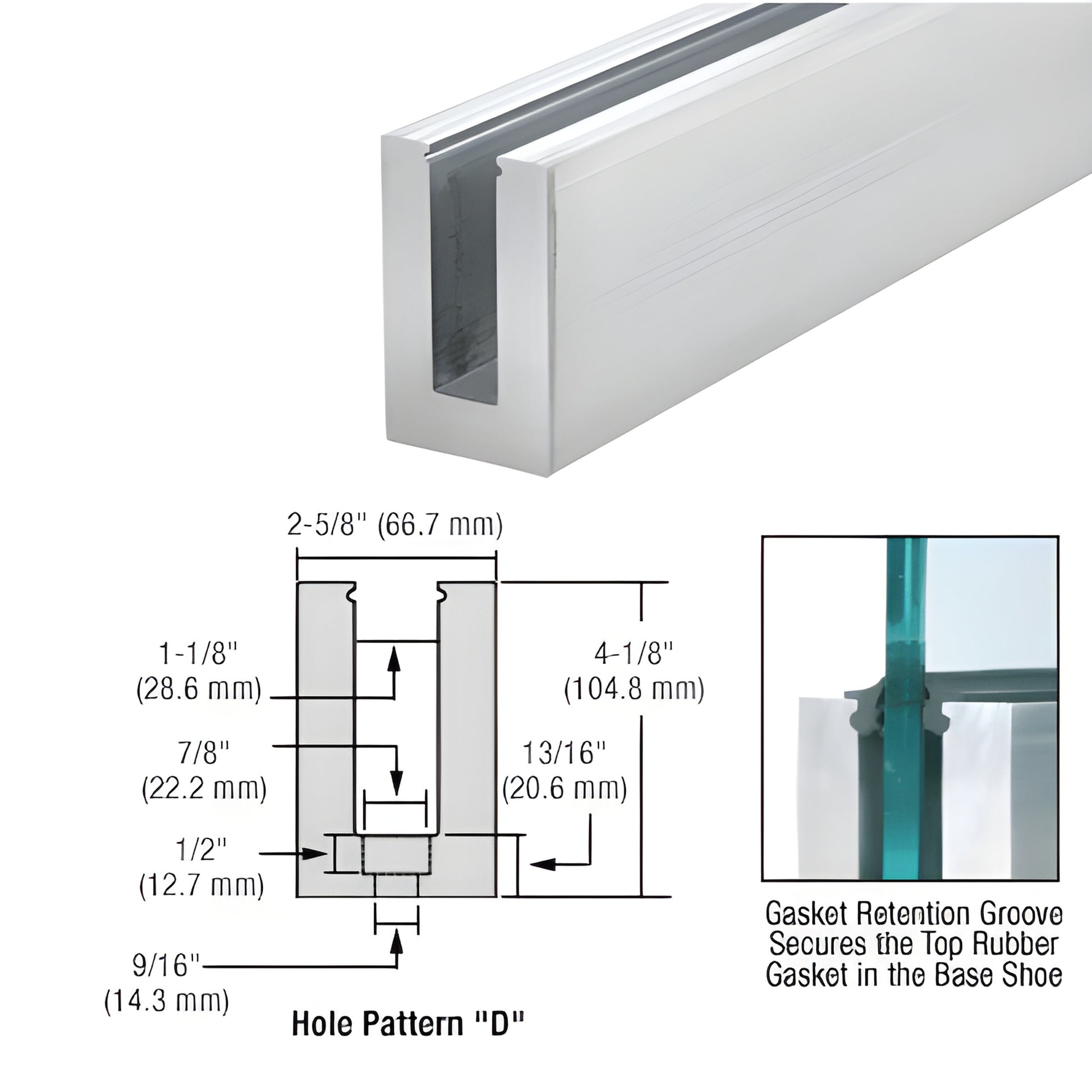

CRL B6N Series Mill Aluminum Standard Square Base Shoe 10' Drilled with Hole Pattern "D" for 5/8" Glass

CRL B6N Series Mill Aluminum Standard Square Base Shoe 10' Drilled with Hole Pattern "D" for 5/8" Glass

$1,065.51 CAD
$1,065.51 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# B6N10D
Shipping Weight: 84.08 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
View full details

Product Information

Description

Drilling Center To Center 12 in.(305 mm)
Finish/ColorMill
GlassIncluded No
Glazing Thickness5/8 in. (16 mm)
GlazingType Monolithic
Height 4-1/8 in.(105 mm)
Length 120 in.(3048 mm)
MaterialAluminum

Overview

The CRL B6 Series Standard Square Base Shoe is designed for 5/8" monolithic tempered glass, with a thickness range of .595" to .656" (15.09 to 16.66 mm), making it ideal for use as the base channel in glass railing systems.
This product meets NBC load requirements when installed in accordance with ICC-3269, ensuring safety and compliance.
The base shoe can be customized with drilled and counter-bored holes every 12 inches or tailored to your specifications, with additional cutting and mitering services available.
For optimal results, CRL recommends attaching the base shoe using one of its five engineered methods, detailed in the HR11 catalog, and advises against direct powder coating.
