Product Details
- Door Only or Complete Entrance Kits Available
- 3' Single Door or 6' Double Door Kits for Use with 1/2" (12 mm) Tempered Glass
- Brushed or Polished Stainless Steel, Clear or Black/Bronze Anodized Finishes Net Door Width is 35-3/4" (908 mm)
- Two DR4S Series Dry Glaze Top Patch Rails
- Two DR4S Series Dry Glaze Rails with 777S Locks
- Two Model DRA1020 Cylinder/Thumbturn Combos
- Two Model 777SP Strike Plates
- Two Model 20104M20 Jackson® Overhead Door Closer Sets
- Two CRL8010AS Closer Arms
- Two CRL8010DP Bottom Pivots
- Two CRL8010FS Mounting Clips
- Two Model CM12X12 Pull Handles
- One Model DCH4 72" Header
CRL offers Dry Glazed Frameless Glass Door Kits for single or double door entrances in door only or complete entrance kits. All you supply is the 1/2" (12 mm) tempered glass.

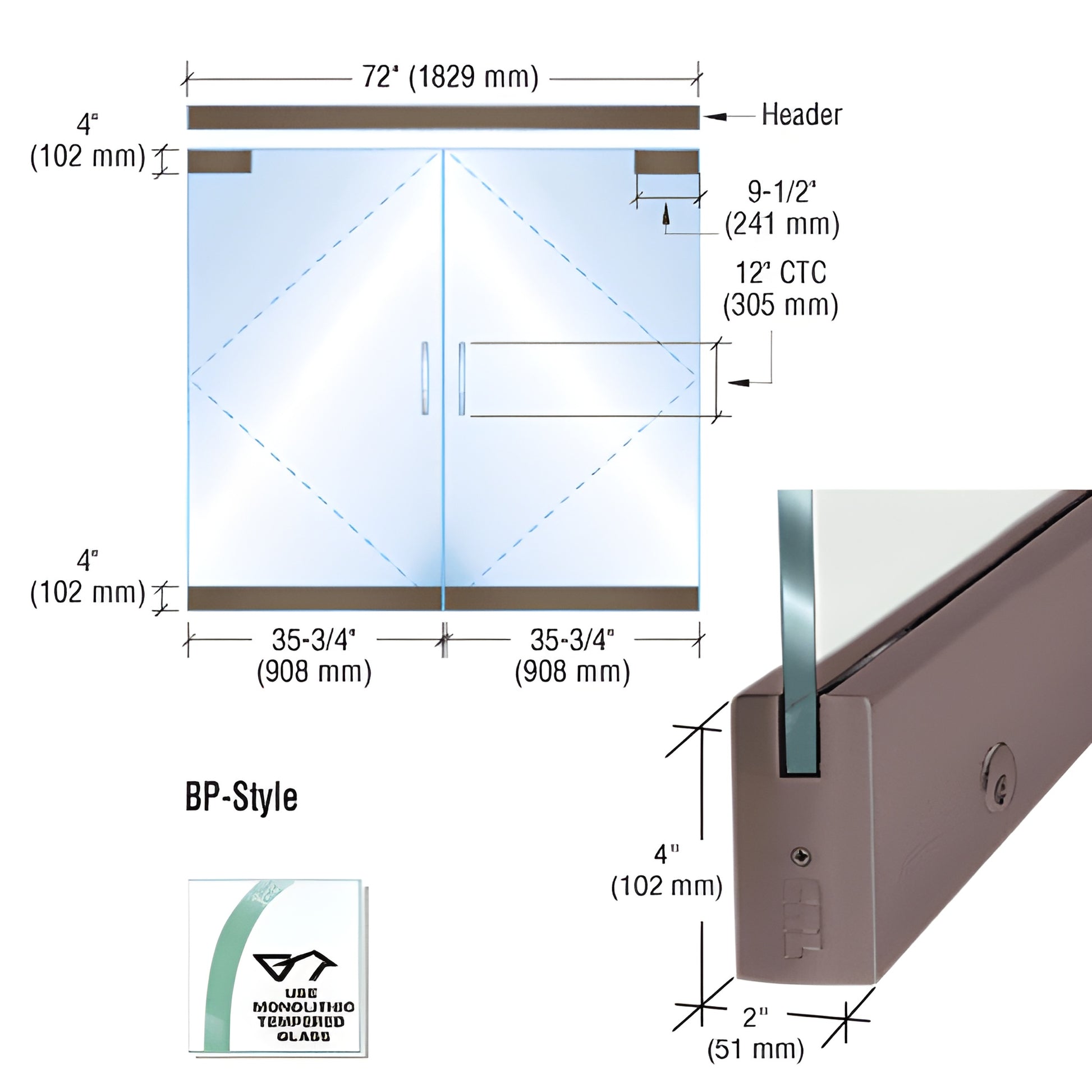

This kit utilizes our patented dry glaze rails. It is a 'BP' Style Door Type in brushed or polished stainless steel, clear or black/bronze anodized finishes. It works with 1/2" (12 mm) fully tempered glass. It requires two 5/8" (16 mm) holes at 12" (305 mm) on center for the pull handle, and a notch for the top patch. Net door width is 35-3/4" (908 mm).
Door Only Kits include Rails, Jackson® Overhead Concealed Door Closer with Bottom Pivot, and a Pull Handle. Complete Entrance Kits also include a 1-3/4" x 4" (45 x 102 mm) Header prepped for a Jackson® Overhead Concealed Door Closer. All Kits are also available with locks in the bottom rails. Thresholds are also available, but must be ordered separately.
NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.
With Lock Kits Include:
Two DR4S Series Dry Glaze Top Patch Rails
Two DR4S Series Dry Glaze Rails with 777S Locks
Two Model DRA1020 Cylinder/Thumbturn Combos
Two Model 777SP Strike Plates
Two Model 20104M20 Jackson® Overhead Door Closer Sets
Two CRL8010AS Closer Arms
Two CRL8010DP Bottom Pivots
Two CRL8010FS Mounting Clips
Two Model CM12X12 Pull Handles
One Model DCH4 72" Header
