CRL 6' Frameless Dry-Glazed Glass 2-Panel Door Kit, Satin Anod w/ Lock

• Door Only or Complete Entrance Kits Available — SKU: BP4SA12DEL
• 3' Single Door or 6' Double Door Kits for use with 1/2" (12 mm) tempered glass
• Finishes: Brushed or Polished Stainless Steel, Clear or Black/Bronze Anodized

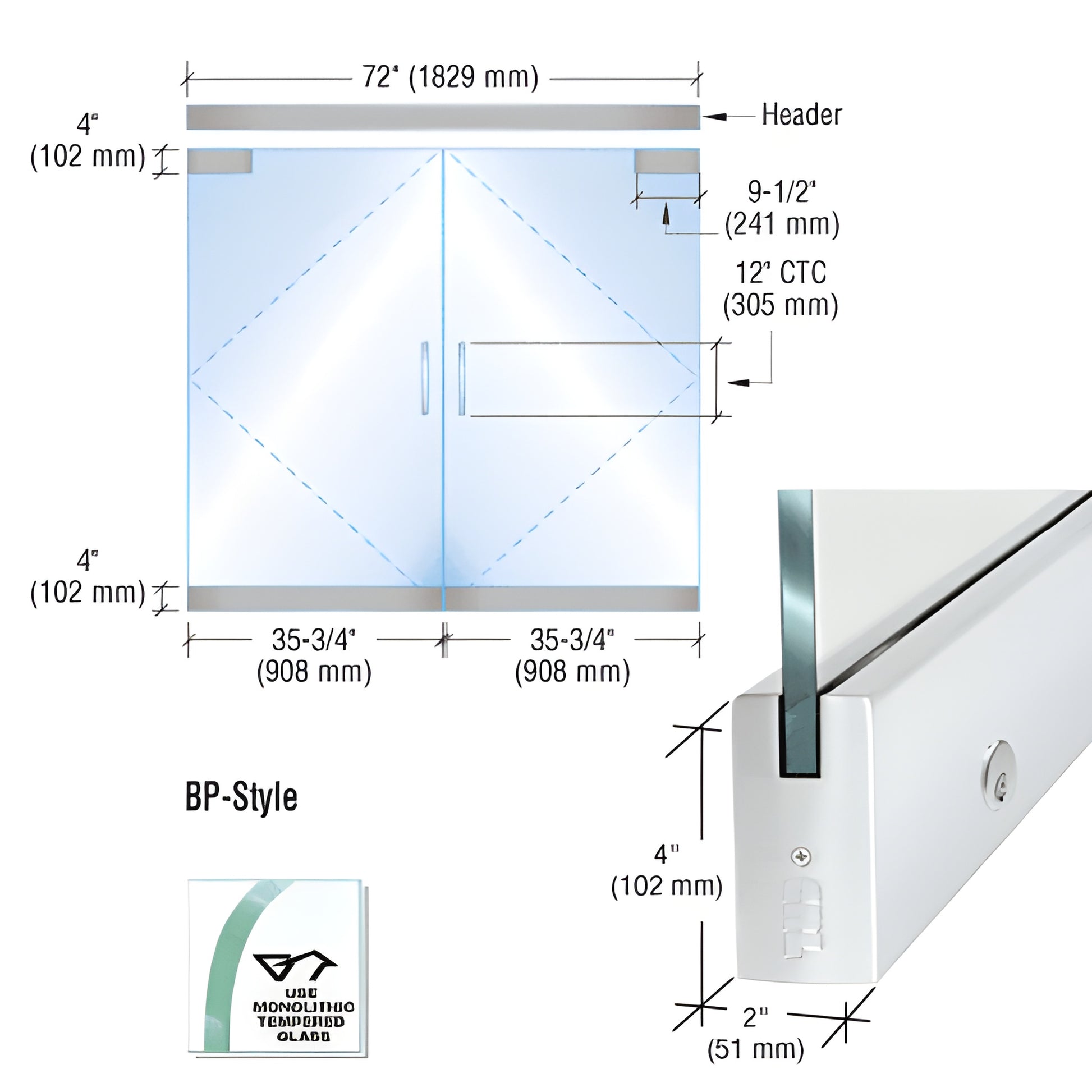

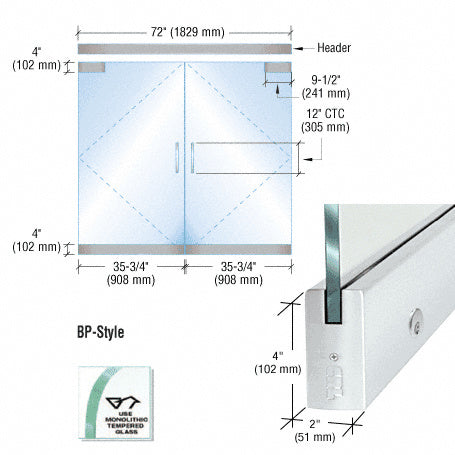

• Net door width: 35-3/4" (908 mm)

CRL Dry Glazed Frameless Glass Door Kits provide a clean, commercial entrance solution for 1/2" (12 mm) fully tempered glass. Choose Door Only kits or Complete Entrance Kits — all kits use our patented dry glaze rails for a no-rubber, low-profile frameless appearance. This is a 'BP' Style Door Type available in brushed or polished stainless steel and clear or black/bronze anodized finishes.

Installation notes: requires two 5/8" (16 mm) holes at 12" (305 mm) on center for the pull handle and a notch for the top patch. CRL follows GANA Guidelines for maximum door sizes.

Kit contents

Door Only Kits include rails, Jackson® Overhead Concealed Door Closer with bottom pivot, and a pull handle. Complete Entrance Kits also include a 1-3/4" x 4" (45 x 102 mm) header prepped for a Jackson® Overhead Concealed Door Closer. Locks in bottom rails, and thresholds, are available as options (thresholds ordered separately).

With Lock Kits include:

• Two DR4S Series dry glaze top patch rails
• Two DR4S Series dry glaze rails with 777S locks
• Two Model DRA1020 cylinder/thumbturn combos
• Two Model 777SP strike plates
• Two Model 20104M20 Jackson® overhead door closer sets
• Two CRL8010AS closer arms
• Two CRL8010DP bottom pivots
• Two CRL8010FS mounting clips
• Two Model CM12X12 pull handles
• One Model DCH4 72" header

NOTE: For maximum door sizes when using this product
