• CRL PHE8DU black bronze European double door hardware kit for 3/8-1/2" tempered glass: pivots, top/bottom/transom patches
1 1

CRL

CRL Black Bronze Anodized Patch Kit for Double Glass Doors - No Lock

CRL Black Bronze Anodized Patch Kit for Double Glass Doors - No Lock

$893.78 CAD
$893.78 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PHE8DU
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Configuration
Sidelite-Pair With Transom-Sidelite
Door Type
A Style Glass Door
Finish/Color
Black Bronze Anodized
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback
2-9/16

Overview

  • For 3/8" or 1/2" (10 or 12 mm) tempered glass
  • Available with or without locks
CRL PHE8 European Double Door Kits (SKU: PHE8DU)

Complete hardware kit for a pair of free-swinging glass doors with fixed transom and two sidelites (glass and additional supports for transom/sidelites not included). Designed for 3/8" or 1/2" tempered glass; holes and notches are required in the glass. Pivot setback: 2-9/16" (65 mm). Compatible with a floor closer using a tapered spindle (ordered separately). Ideal for commercial and residential glass storefronts requiring European-style double door hardware.

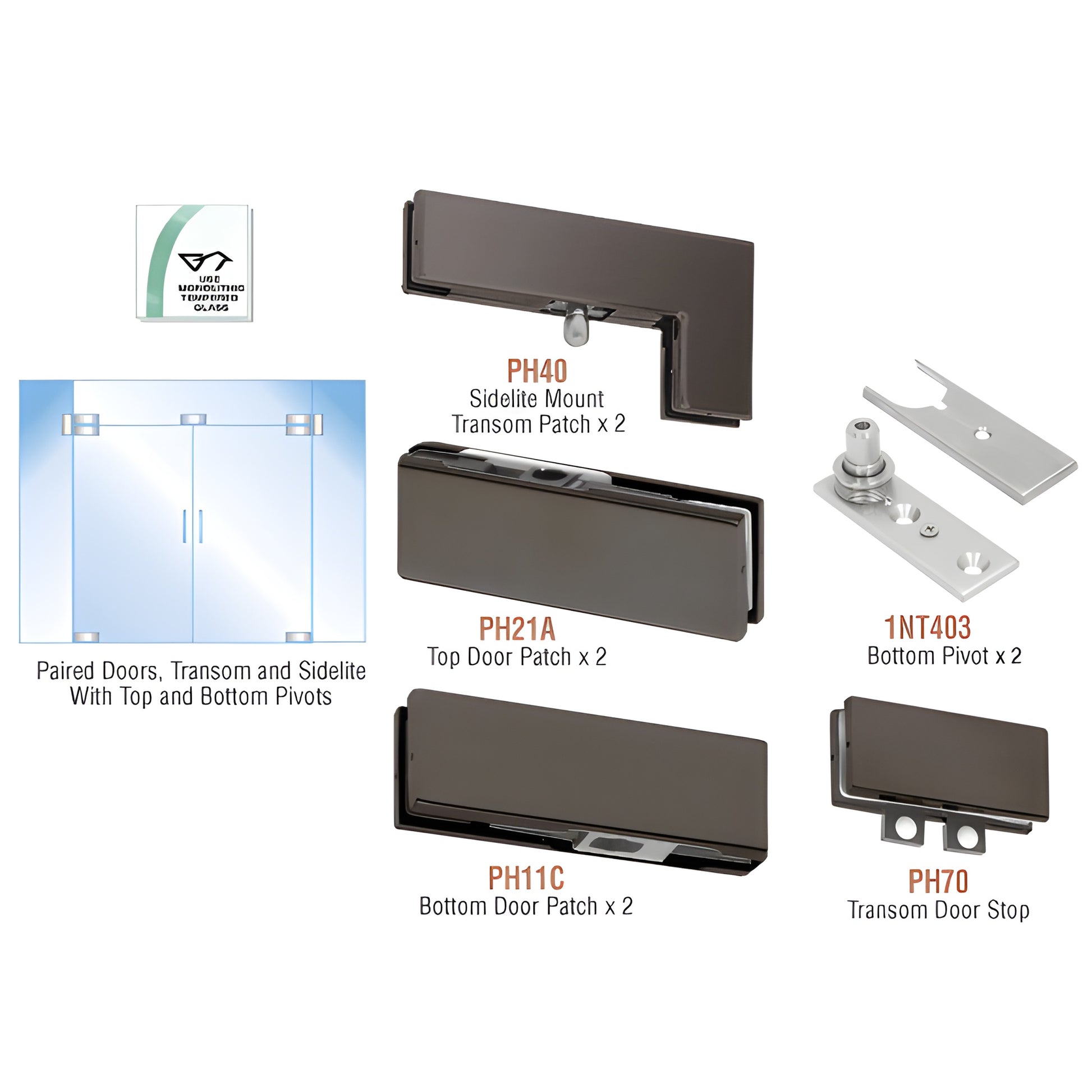

Kit contains:
  • 2 - PH40 sidelite mount transom patches
  • 2 - PH21A top door patches
  • 2 - PH11C bottom door patches
  • 1 - PH70 transom door stop
  • 2 - 1NT403 bottom pivots
  • Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass

Kits with locks include two Cat. No. EUR205 patch locks; cylinders, thumbturns, and keepers are ordered separately.

NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.

Most shipping weights are approximate and have not been verified. If exact weight (for accurate shipping costs) is required to complete your order, please request it prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and monitor settings.

Find the CRL PHE8DU European double door kit for tempered glass sidelites and transom installations—order now or contact CRL for a quote and technical assistance.
