CRL Black Bronze Anodized Patch Door Kit w/ Lock, Transom/Sidelites

• “All-Glass” look for a seamless glass door appearance
• Fits 3/8" or 1/2" (10 or 12 mm) tempered glass
• Available with or without locks (optional EUR205 patch lock included in locked kits; cylinders, thumbturns, and keepers sold separately)

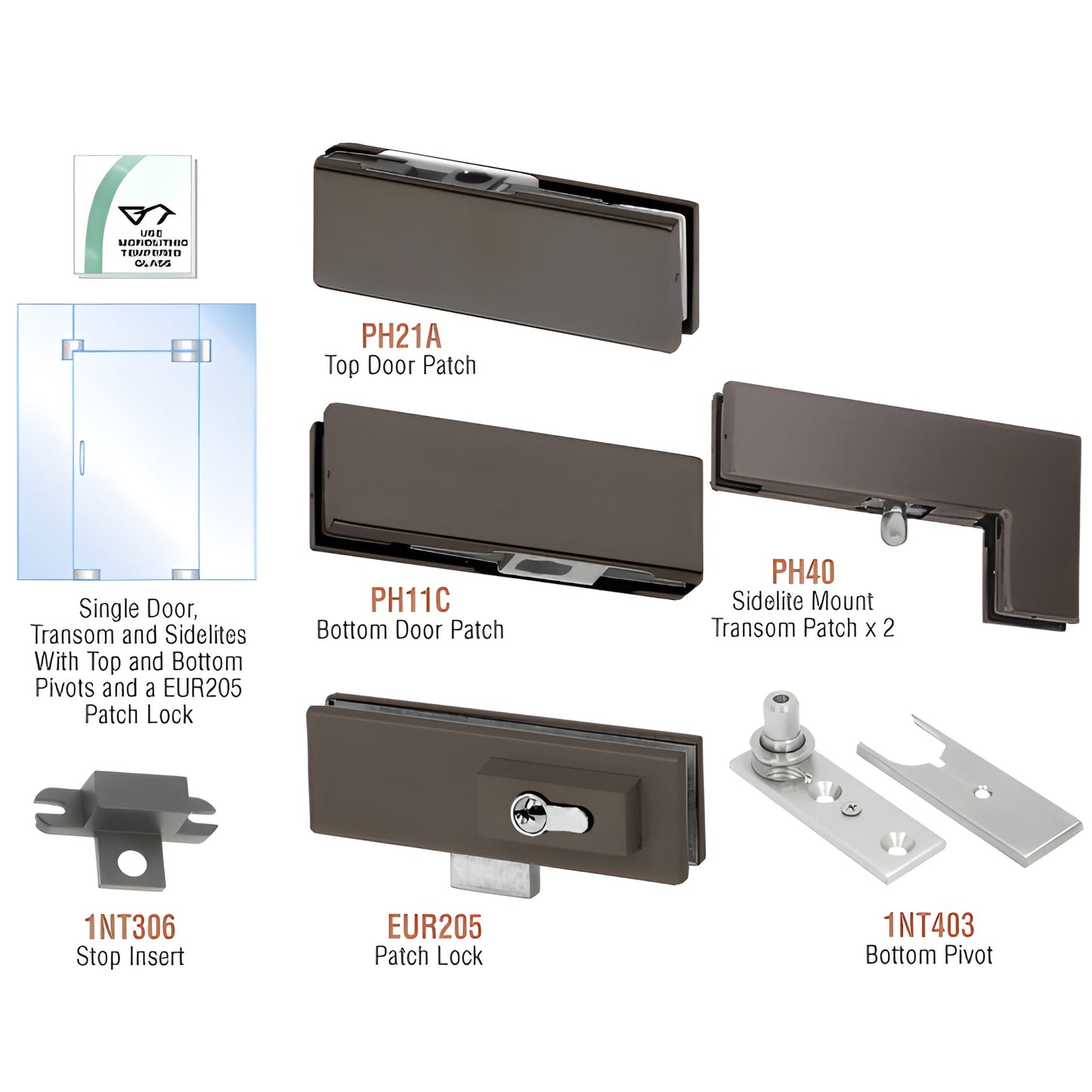

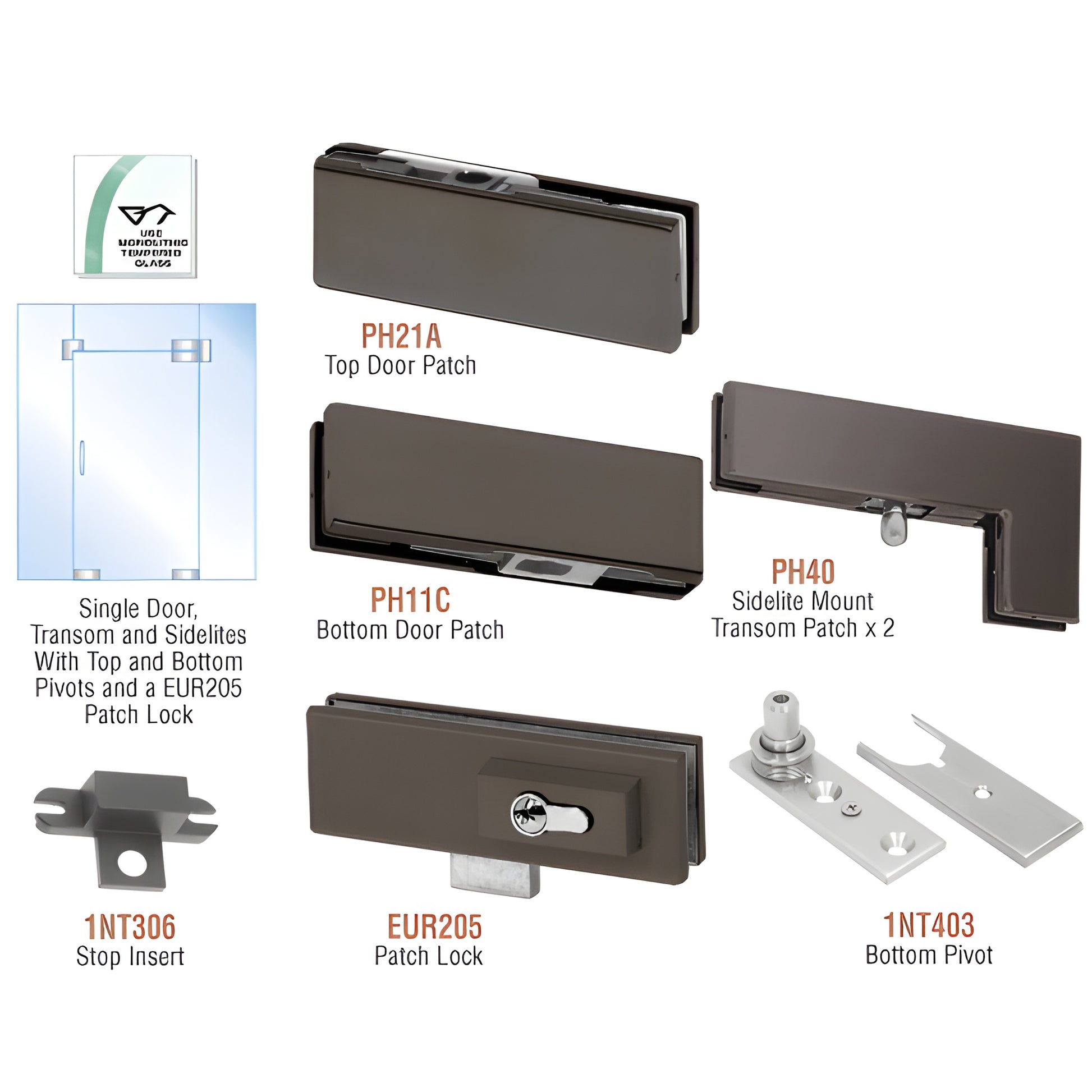

CRL PHE5 European Door Kits (SKU: PHE5LDU) contain the hardware needed to assemble a free-swinging pivot door with a fixed transom and two sidelites (glass and any additional supports for the fixed transom and sidelites are not included). Pivot setback: 2-9/16" (65 mm). A floor closer with tapered spindle (ordered separately) may be used with this kit. Ideal for commercial and architectural installations requiring a frameless glass appearance and durable European-style pivot hardware. Kit Contains:

• 2 × PH40 sidelite mount transom patches
• 1 × PH21A top door patch
• 1 × PH11C bottom door patch
• 1 × 1NT306 stop insert
• 1 × 1NT403 bottom pivot
• Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (holes and notches required in the glass)

Kits with lock include one EUR205 patch lock. Cylinders, thumbturns, and keepers are ordered separately. CRL follows GANA Guidelines for maximum door sizes when using this product.

Order the PHE5 European pivot door kit (SKU: PHE5LDU) for a clean, all-glass commercial pivot door solution—contact CRL or add to cart to get started.
