CRL Black Bronze European Patch Kit for Double Doors (No Lock)

• Most popular European double door kit design
• For 3/8" or 1/2" (10 or 12 mm) tempered glass
• Available with or without locks (SKU: PHE6DU)

CRL PHE6 European Double Door Kits (PHE6DU) include all glass-to-frame hardware required for a pair of free-swinging tempered glass doors with a fixed transom (glass and transom supports not included). Pivot setback is 2-9/16" (65 mm). Compatible with a separately ordered floor closer with tapered spindle. These kits are a top choice for frameless glass storefronts, office entrances, and commercial interior glass doors where durable, low-profile pivot hardware is needed.

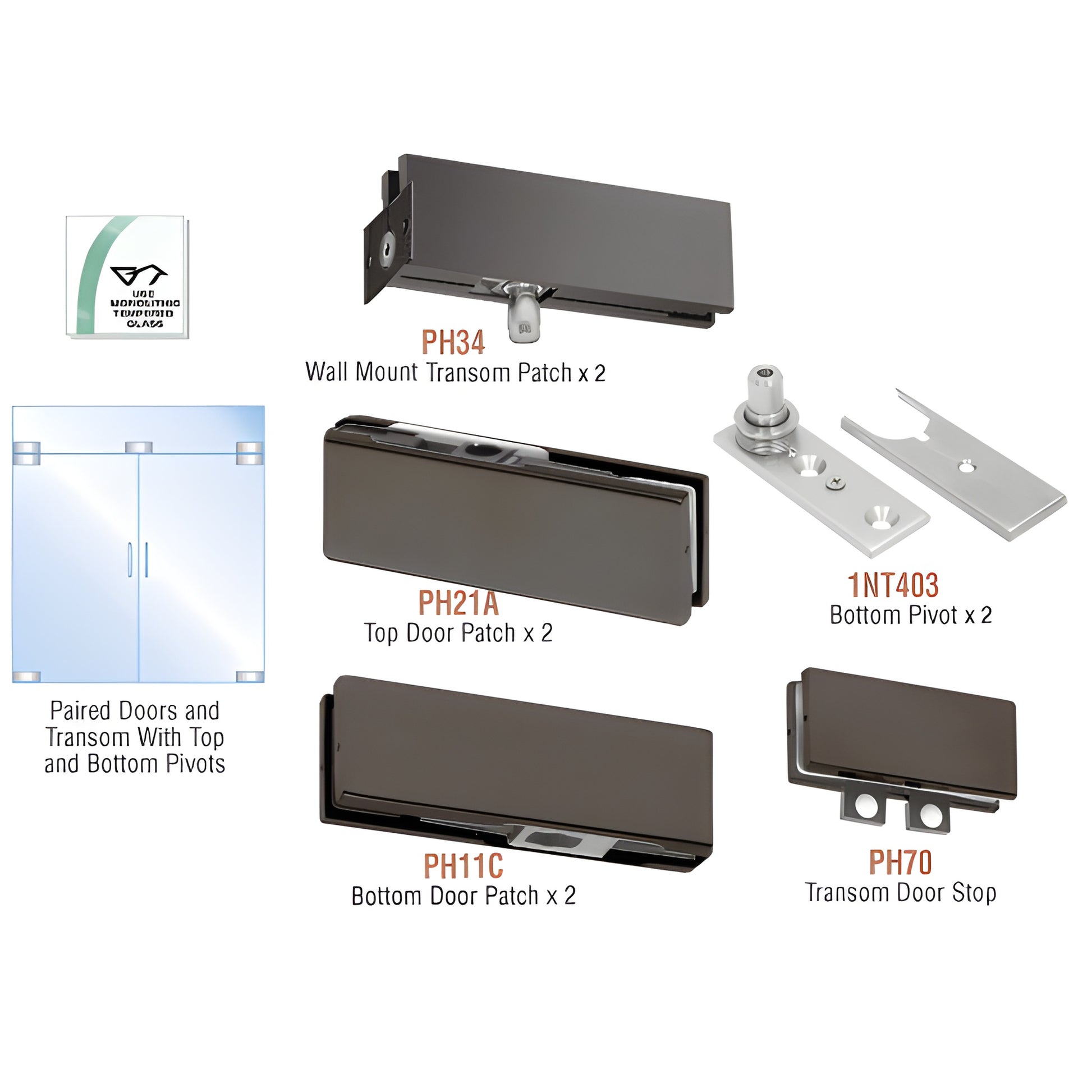

Kit contains:

• 2 - PH34 Wall Mount Transom Patches
• 2 - PH21A Top Door Patches
• 2 - PH11C Bottom Door Patches
• 1 - PH70 Transom Door Stop
• 2 - 1NT403 Bottom Pivots
• Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (holes and notches required in the glass)

Kits with locks include two EUR205 patch locks; cylinders, thumbturns, and keepers are ordered separately. These European-style double door kits are engineered for commercial glass doors and tempered glass storefront applications.

NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.

Need help selecting the right PHE6DU kit or ordering locks and cylinders? Contact CRL Customer Service to confirm specifications and place your order.
