• PHE7LDU: black bronze double-door frameless hardware kit for 3/8-1/2" tempered glass; patches, pivots, transom, lock
1 1

CRL

CRL Black Bronze European Patch Kit for Double Glass Doors with Lock

CRL Black Bronze European Patch Kit for Double Glass Doors with Lock

$1,227.87 CAD
$1,227.87 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PHE7LDU
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Configuration
Pair With Transom-Sidelite
Door Type
F Style Glass Door
Finish/Color
Black Bronze Anodized
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback
2-9/16

Overview

  • For 3/8" or 1/2" (10 or 12 mm) tempered glass
  • Five architectural finishes
  • Available with or without locks (SKU PHE7LDU)

CRL PHE7 European Double Door Kits include all hardware needed to complete a pair of free-swinging frameless glass doors with a fixed transom and sidelite (glass and additional supports for the fixed transom and sidelite not included). Pivot setback: 2-9/16" (65 mm). Compatible with standard floor closers using a tapered spindle (floor closer ordered separately). Ideal for commercial and high-end residential applications requiring durable, architectural glass door hardware.

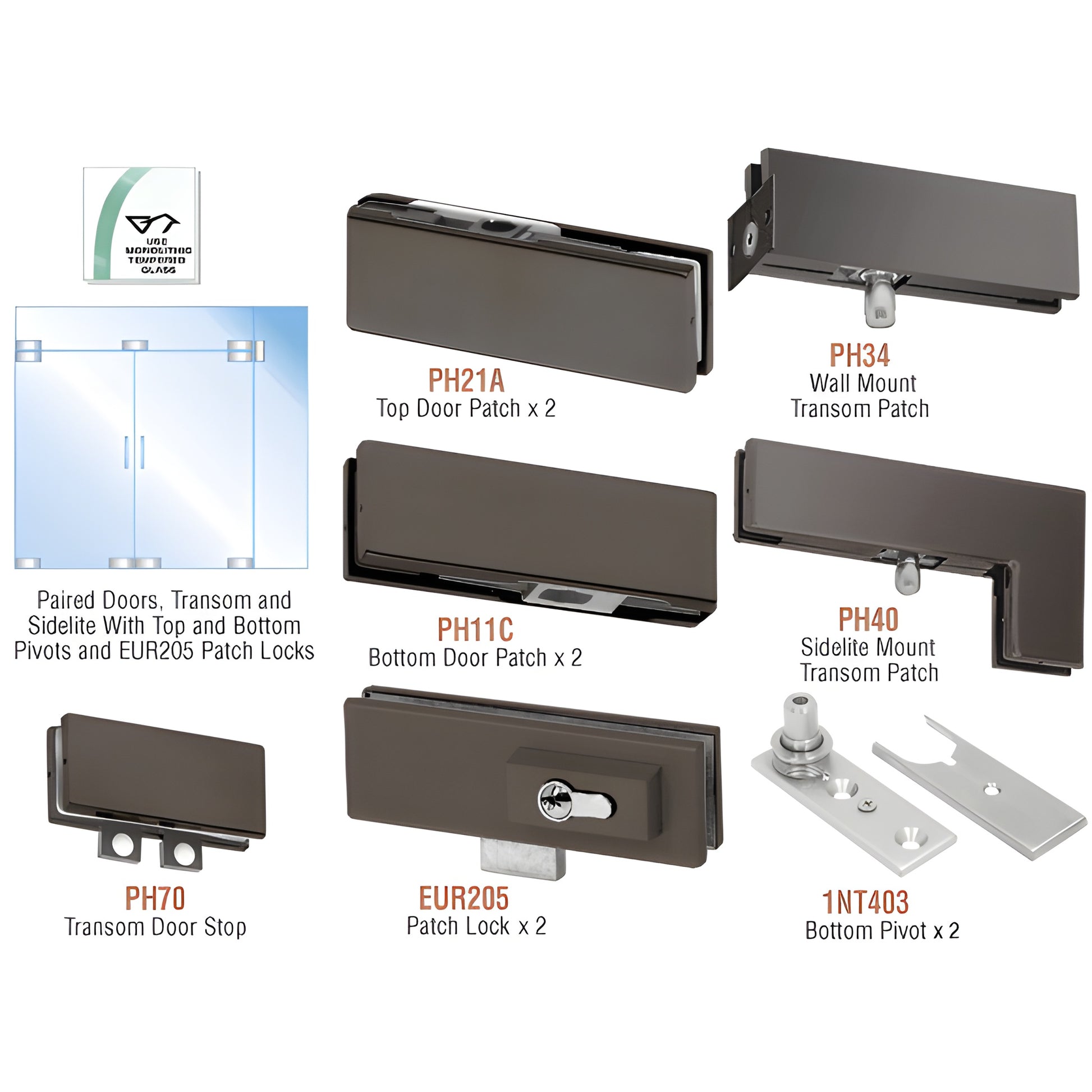

Kit contains:

  • 1 - PH34 Wall Mount Transom Patch
  • 1 - PH40 Sidelite Mount Transom Patch
  • 2 - PH21A Top Door Patches
  • 2 - PH11C Bottom Door Patches
  • 1 - PH70 Transom Door Stop
  • 2 - 1NT403 Bottom Pivots
  • Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (glass requires holes and notches)

Kits with locks include two Cat. No. EUR205 patch locks; cylinders, thumbturns, and keepers are ordered separately. For maximum door sizes, CRL follows GANA Guidelines.

Most shipping weights are approximate and not verified. If you require exact weight to calculate shipping, contact CRL Customer Service before placing your order. Product images are representative; actual colors may vary by monitor.

Looking for a durable European double door hardware kit for tempered glass with multiple finish options? Order the PHE7LDU kit or contact us for specifications and pricing.
