- 2-9/16" (65 mm) Pivot Setback
- High Density Cast Body
- For 3/8" or 1/2" (10 or 12 mm) Glass

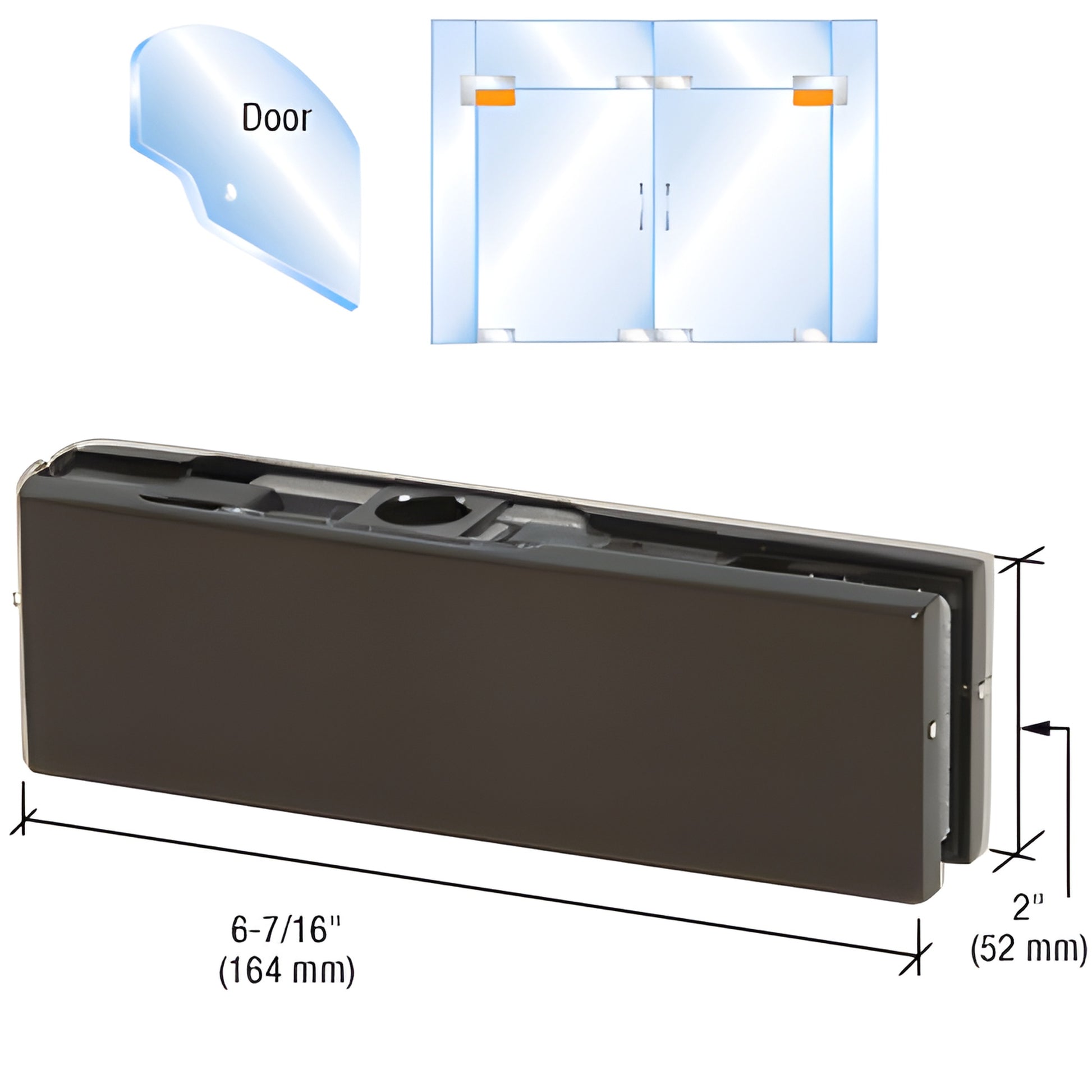

The
CRL Top Door Patch Fitting (SKU:
PH21ADU) includes the
1NT303 insert for use with the
CRL860 Top Walking Beam Pivot,
1NT401 Surface Mount Top Pivot,
1NT405 Threaded Top Pivot, or other 19/32" (15 mm) diameter pivots. Finished covers are available in four standard finishes. Supplied gaskets allow use with either 3/8" or 1/2" (10 or 12 mm) glass—ideal for frameless glass door installations and commercial glass door projects.
Guidelines for building a door with this top patch fitting:
Maximum Weight: 176 Lbs. (80 kg)
Maximum Width: 43" (1.11 m)
If the door exceeds any of these limits, use full door rails.
GLASS FABRICATION REQUIRED:One 3/4" (19 mm) diameter hole and corner notch
COMES WITH:Template and instructions
Product Warning:These fittings are not for use with laminated glass.
When used with 1/2" glass, follow these additional limits:
Maximum Height: 102" (2.59 m)
Maximum Weight: 194 Lbs. (88 kg)
Maximum Width: 42" (1.09 m)
If the door exceeds any of these limits, use full door rails.
