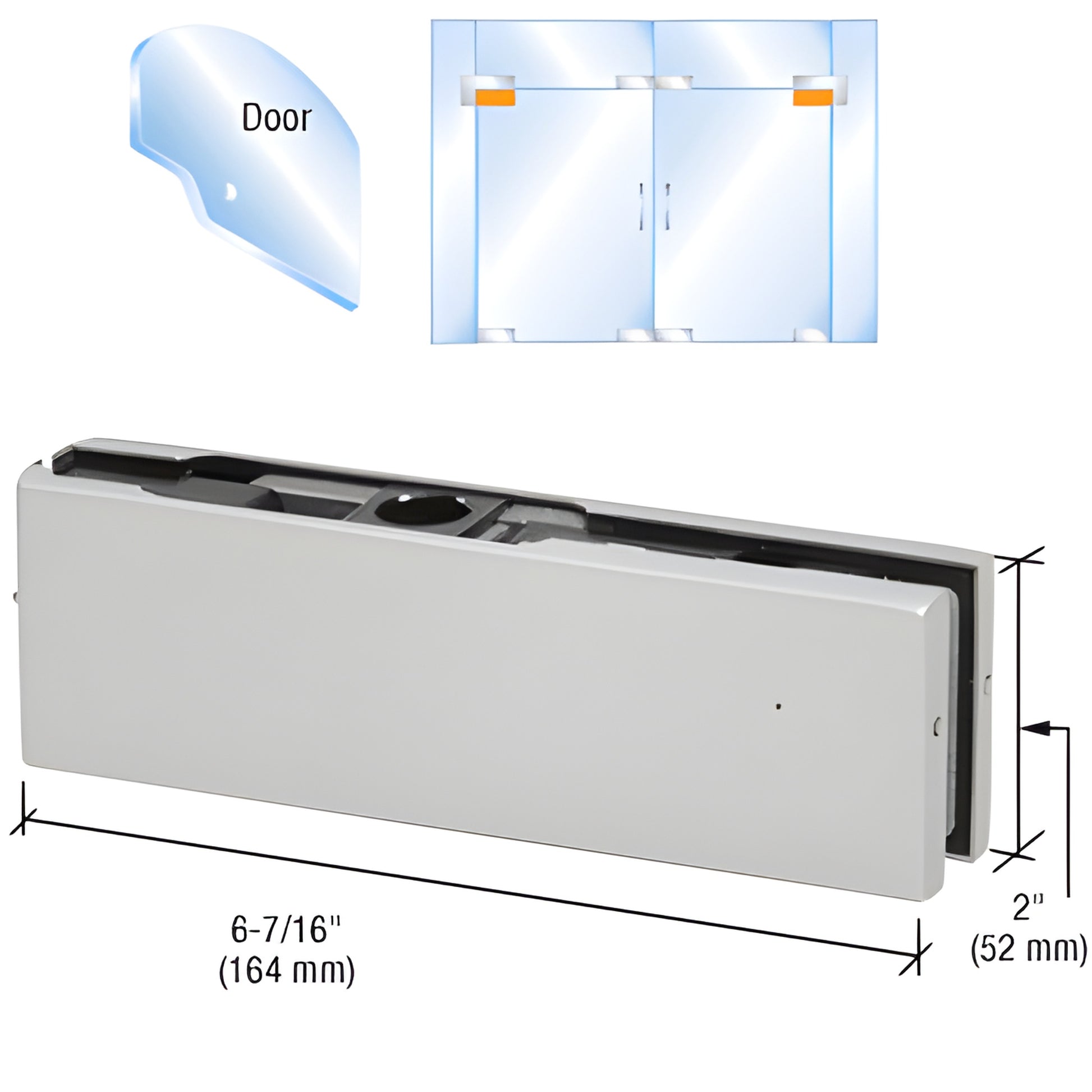

CRL Satin Anodized European Top Patch Fitting for Glass Doors 1NT303

• 2-9/16" (65 mm) Pivot Setback
• High-density cast body
• For 3/8" or 1/2" (10 or 12 mm) glass

The CRL Top Door Patch Fitting is a heavy-duty patch fitting for frameless glass doors and includes the 1NT303 insert for compatibility with the CRL860 Top Walking Beam Pivot, 1NT401 Surface Mount Top Pivot, 1NT405 Threaded Top Pivot, or other 19/32" (15 mm) diameter pivots. Finished covers are offered in four standard finishes. Supplied gaskets permit use with either 3/8" or 1/2" (10 or 12 mm) glass.

Use these guidelines when specifying this top patch fitting for a frameless glass door:

• Maximum weight (3/8" glass): 176 lbs (80 kg)
• Maximum width (3/8" glass): 43" (1.11 m)

If the door exceeds any limitation above, use full door rails.
GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) diameter hole and corner notch.
COMES WITH:
Template and instructions.

Product Warning:
Not for use with laminated glass.

For a 1/2" glass door using this hardware, follow these limits:

• Maximum height (1/2" glass): 102" (2.59 m)
• Maximum weight (1/2" glass): 194 lbs (88 kg)
• Maximum width (1/2" glass): 42" (1.09 m)

If the door exceeds any of these limitations, full door rails should be used.

Why choose this top door patch fitting? High-density cast body,
