CRL Matte Black European Top Door Patch Fitting with 1NT303 Insert
CRL Matte Black European Top Door Patch Fitting with 1NT303 Insert
Regular price
$88.91 CAD
Regular price
Sale price
$88.91 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PH21AMBL
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Finish/Color | Matte Black |
| Glazing Thickness | 3/8 in., 1/2 in. (10 mm, 12 mm) |
| Height 2 in. | (51 mm) |
| Insert Type | 1NT303 |
| Length 6-7/16 in. | (164 mm) |
| Pivot Setback | 2-9/16 |
| Series | European |
| Type | Top |
| With | Insert Yes |
Overview

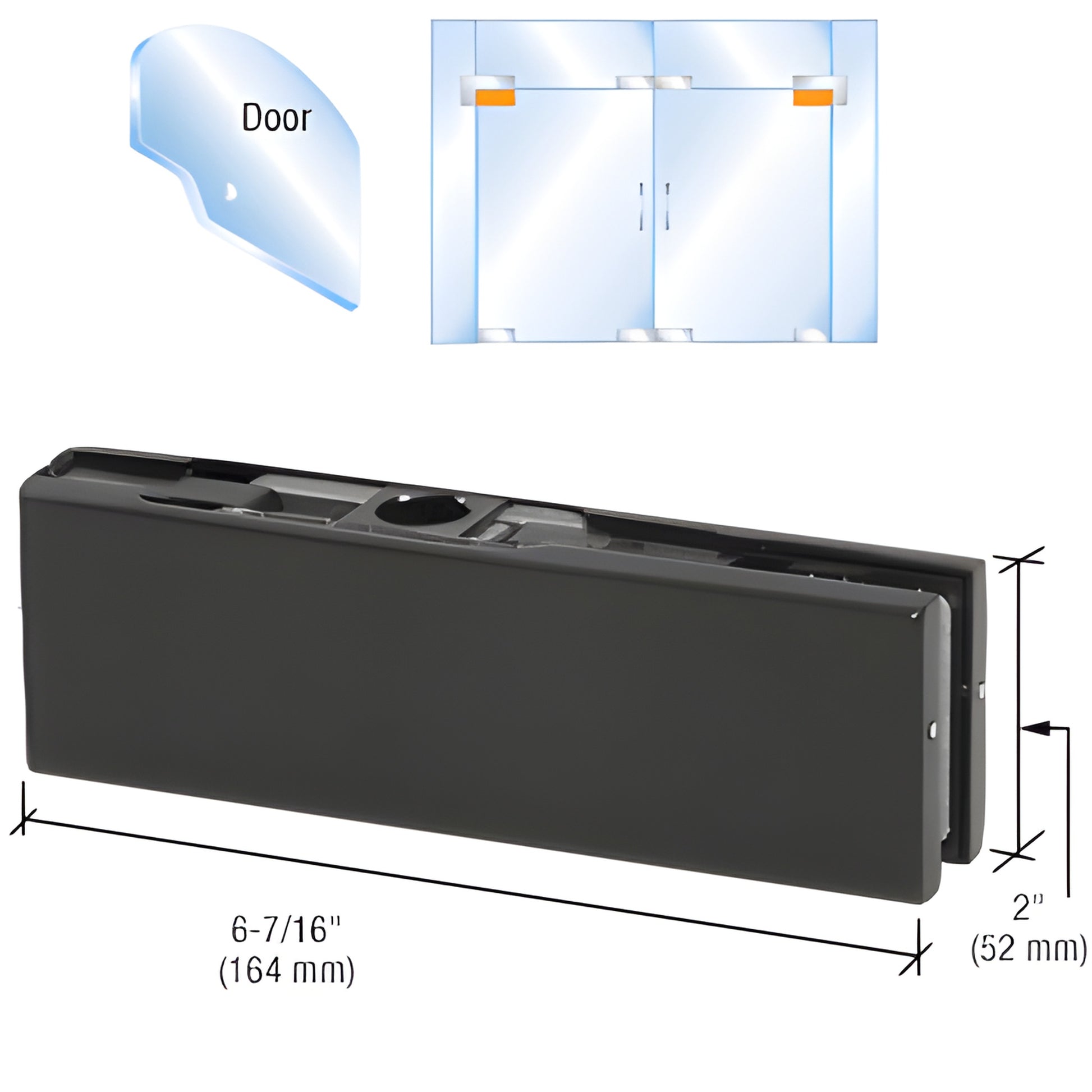

The CRL Top Door Patch Fitting offers a 2-9/16" (65 mm) pivot setback and features a high-density cast body, making it ideal for 3/8" or 1/2" (10 or 12 mm) glass doors.
This versatile fitting includes the 1NT303 insert, compatible with the CRL860 Top Walking Beam Pivot, 1NT401 Surface Mount Top Pivot, 1NT405 Threaded Top Pivot, or other 19/32" (15 mm) diameter pivots.
With finished covers available in four standard finishes and gaskets supplied for glass compatibility, it accommodates a maximum weight of 176 lbs (80 kg) and a maximum width of 43" (1.11 m).
Note that these fittings are not suitable for laminated glass, and full door rails are recommended if the door exceeds specified limits.
For precise shipping costs, please contact CRL Customer Service.
This versatile fitting includes the 1NT303 insert, compatible with the CRL860 Top Walking Beam Pivot, 1NT401 Surface Mount Top Pivot, 1NT405 Threaded Top Pivot, or other 19/32" (15 mm) diameter pivots.
With finished covers available in four standard finishes and gaskets supplied for glass compatibility, it accommodates a maximum weight of 176 lbs (80 kg) and a maximum width of 43" (1.11 m).
Note that these fittings are not suitable for laminated glass, and full door rails are recommended if the door exceeds specified limits.
For precise shipping costs, please contact CRL Customer Service.
Specifications
CAD Drawings - pdf
CAD Drawings - dwg
