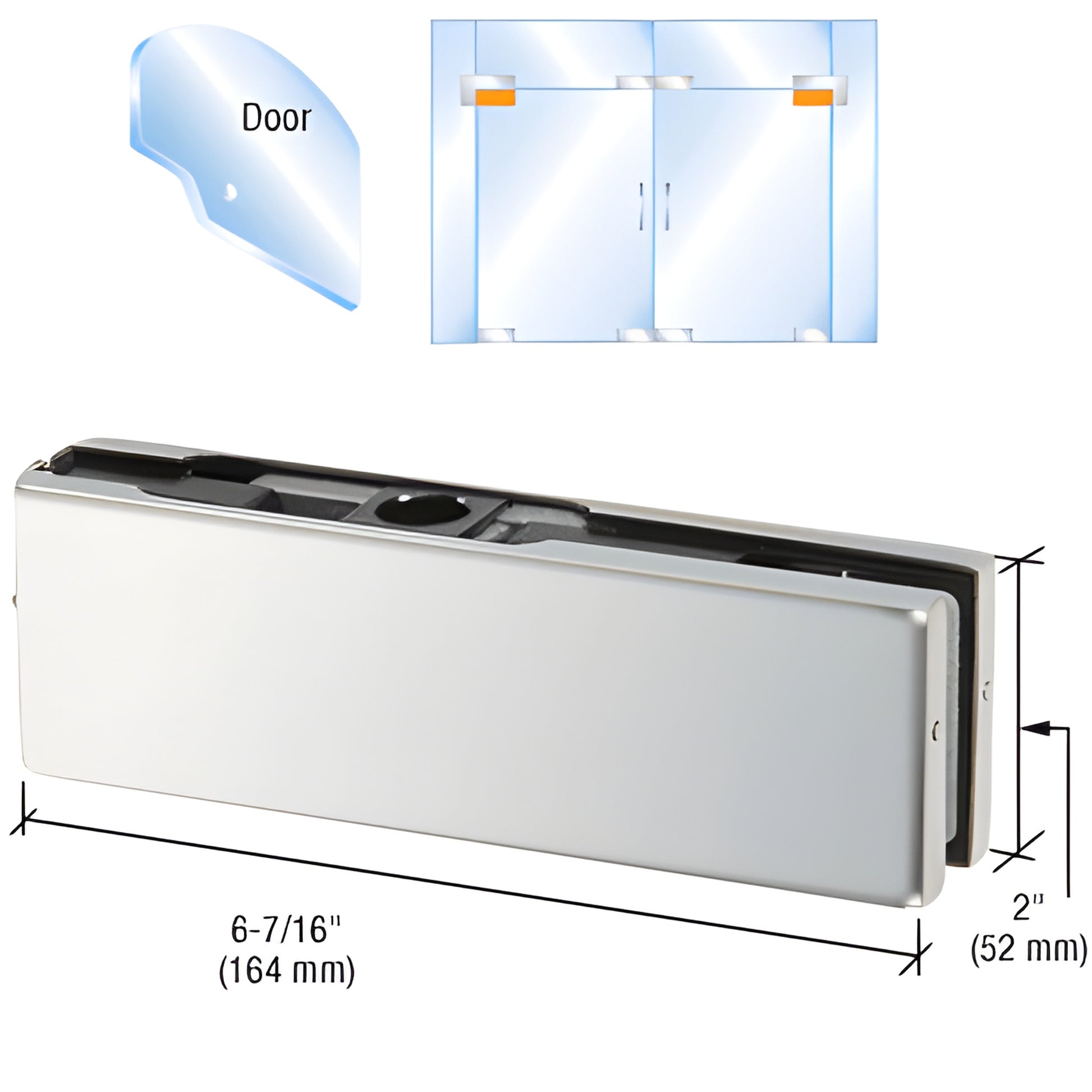

• PH21APS polished stainless steel top door patch fitting for 3/8-1/2 in glass, 6-7/16" 2" (164 52 mm), includes insert
1 1

CRL

CRL Polished Stainless Steel Top Patch Fitting for Glass Doors 1NT303

CRL Polished Stainless Steel Top Patch Fitting for Glass Doors 1NT303

$79.95 CAD
$79.95 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PH21APS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Polished Stainless Steel
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Height
2 in. (51 mm)
Insert Type
1NT303
Length
6-7/16 in. (164 mm)
Pivot Setback
2-9/16
Series
European
Type
Top
With Insert
Yes

Overview

  • 2-9/16" (65 mm) Pivot Setback
  • High Density Cast Body
  • For 3/8" or 1/2" (10 or 12 mm) Glass

The CRL Top Door Patch Fitting (SKU: PH21APS) fits frameless glass doors and includes the 1NT303 Insert for use with our CRL860 Top Walking Beam Pivot, 1NT401 Surface Mount Top Pivot, 1NT405 Threaded Top Pivot, or other 19/32" (15 mm) diameter pivots. Finished covers are available in four standard finishes. Supplied gaskets allow use with either 3/8" or 1/2" (10 or 12 mm) glass.

The following guidelines apply when building a door with this top patch fitting:
Maximum Weight: 176 Lbs. (80 kg)
Maximum Width: 43" (1.11 m)
If the door exceeds these limits, full door rails are recommended.

GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) diameter hole and corner notch

COMES WITH:
Template and instructions

Product Warning:
These fittings are not for use with laminated glass.

Guidelines for 1/2" glass doors using this hardware:
Maximum Height: 102" (2.59 m)
Maximum Weight: 194 Lbs. (88 kg)
Maximum Width: 42" (1.09 m)
If the door exceeds any of these limitations, full door rails should be used.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, contact CRL Customer Service before submitting your order. Product images are of the actual product or a close representation; colors may vary by monitor.

Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for details.
