CRL-Blumcraft® Mill Aluminum 324 Series 1-3/8" x 1-3/8" Extruded Aluminum Cap Rail
CRL-Blumcraft® Mill Aluminum 324 Series 1-3/8" x 1-3/8" Extruded Aluminum Cap Rail
Regular price
$567.61 CAD
Regular price
Sale price
$567.61 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 324M
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1

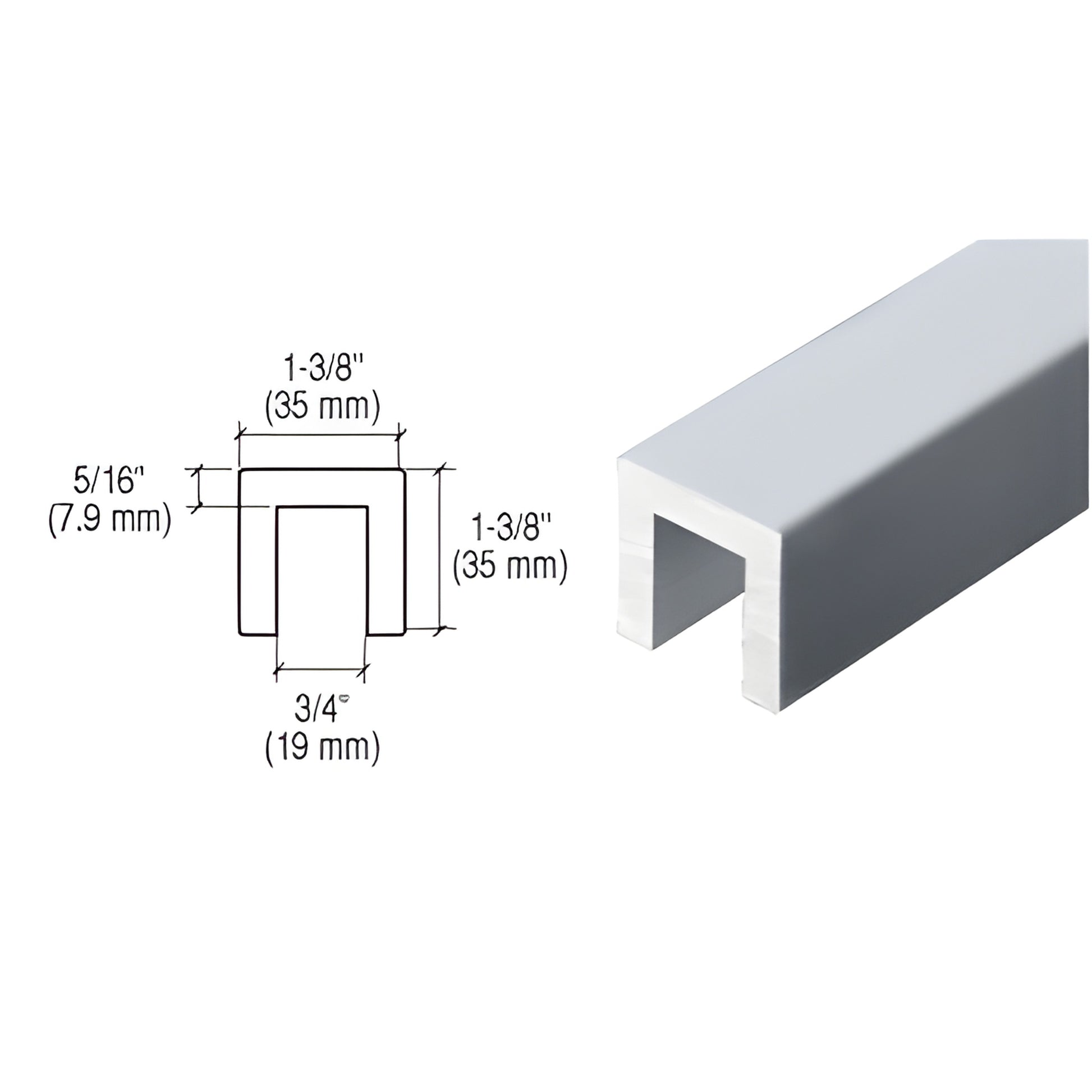

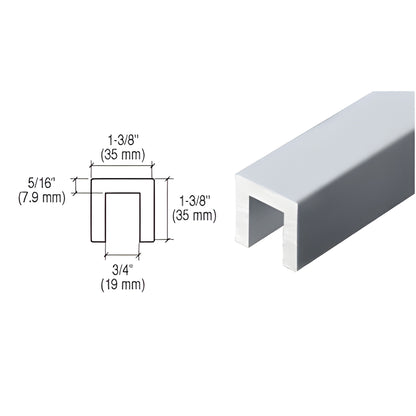

Description
| Finish/Color | Mill |
| Glass Pocket Width 3/4 in. | (19 mm) |
| Glazing Insert ST | 302 |
| Glazing Thickness | 9/16 in. (14 mm) |
| Height 1-3/8 in. | (35 mm) |
| ICC ESR Number ESR | 3842 |
| Material | 6063-T5 Aluminum |
| Top of Rail to Top of Glass Pocket | 5/16 |
| Width 1-3/8 in. | (35 mm) |
Overview
CRL-Blumcraft® offers top-quality extruded cap rails designed for 1/2" (12 mm) glass, crafted from durable 6063-T5 aluminum.
Available in two architectural finishes and mill aluminum, these ready-to-install cap rails can be purchased in 120” (3.05 m) stock lengths or custom-fabricated to your specifications.
For a secure installation, stainless steel adapter strips are necessary, and these should be mounted onto the glass edge using Very High Bond Tape before attaching the cap rail.
Each cap rail features pre-drilled holes every 24" (610 mm) and includes set screws for reliable attachment to the adapter strips.
For precise shipping costs or weight details, please contact CRL Customer Service prior to order submission.
Available in two architectural finishes and mill aluminum, these ready-to-install cap rails can be purchased in 120” (3.05 m) stock lengths or custom-fabricated to your specifications.
For a secure installation, stainless steel adapter strips are necessary, and these should be mounted onto the glass edge using Very High Bond Tape before attaching the cap rail.
Each cap rail features pre-drilled holes every 24" (610 mm) and includes set screws for reliable attachment to the adapter strips.
For precise shipping costs or weight details, please contact CRL Customer Service prior to order submission.
