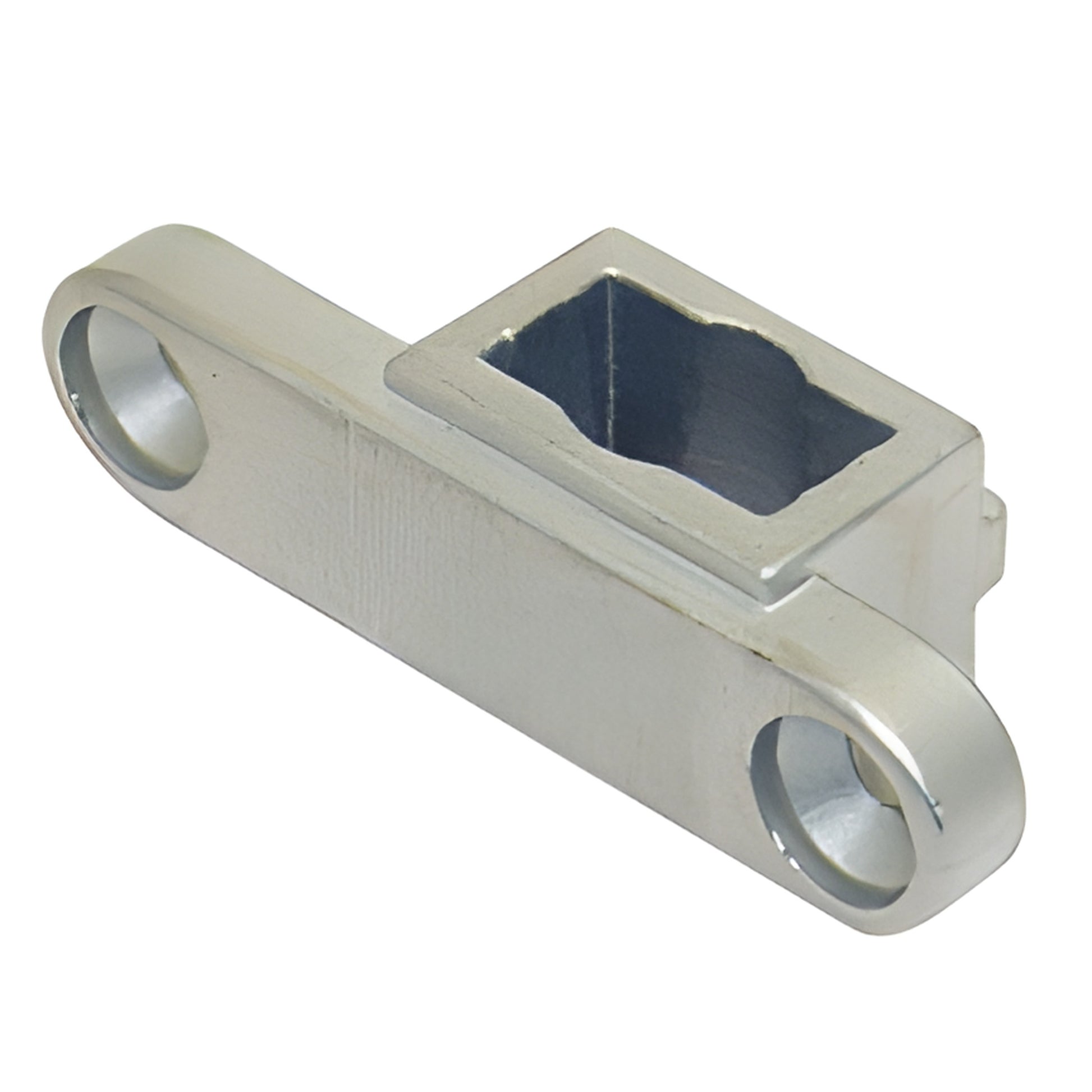

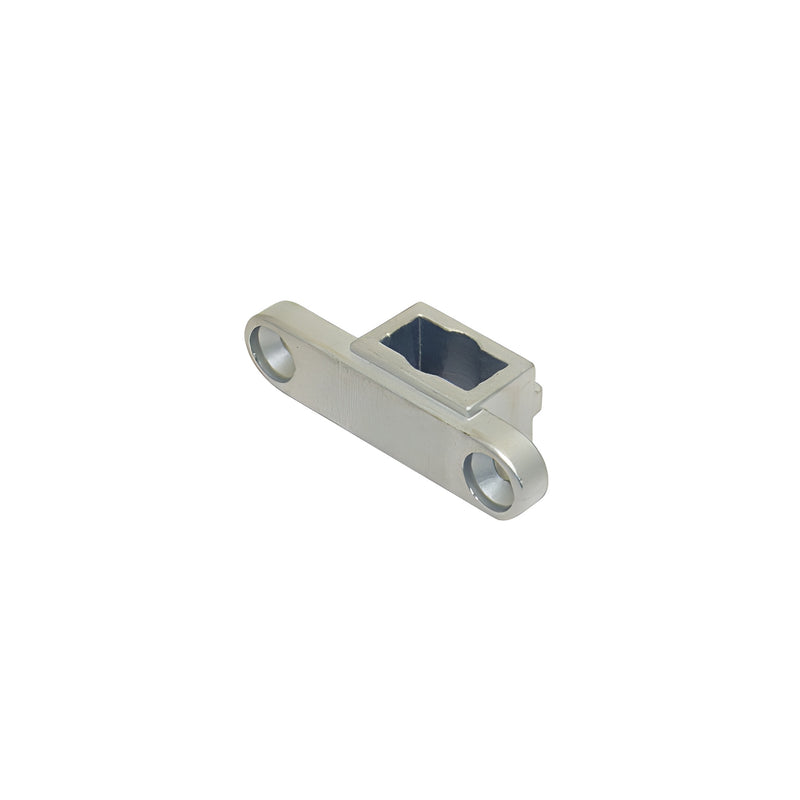

CRL Bottom Door Patch Insert to Fit Tapered Spindle

• For Use With: PH10 and PH11 Bottom Door Patch Fittings.
• For Use With Tapered Closer Spindles or Universal Round Free-Swing Floor Spindle
• Fits Floor Closers and Free-Swing Bottom Pivots

This

CRL Patch Fitting Insert

Connects to a Flat Tapered Spindle used with our

Series and

Series Floor Closers. This Insert also Fits our Free-Swing Style Floor Mount Pivot No.

and No.

Adjustable Round Floor Mount Pivot.

1 Each: 1NT301 Bottom Door Patch Insert;

2 Each: Hex Head Cap Screws for Attaching Insert to the Bottom Door Patch

PH10 and PH11 Bottom Door Patch Fittings

CRL8300 and CRL8400 Series Floor Closers;

Floor Closers with International Type Pivot;

1NT402 Bottom Free-Swinging Pivot;

1NT403 and 1NT406 Adjustable

Bottom Free-Swinging Pivots
