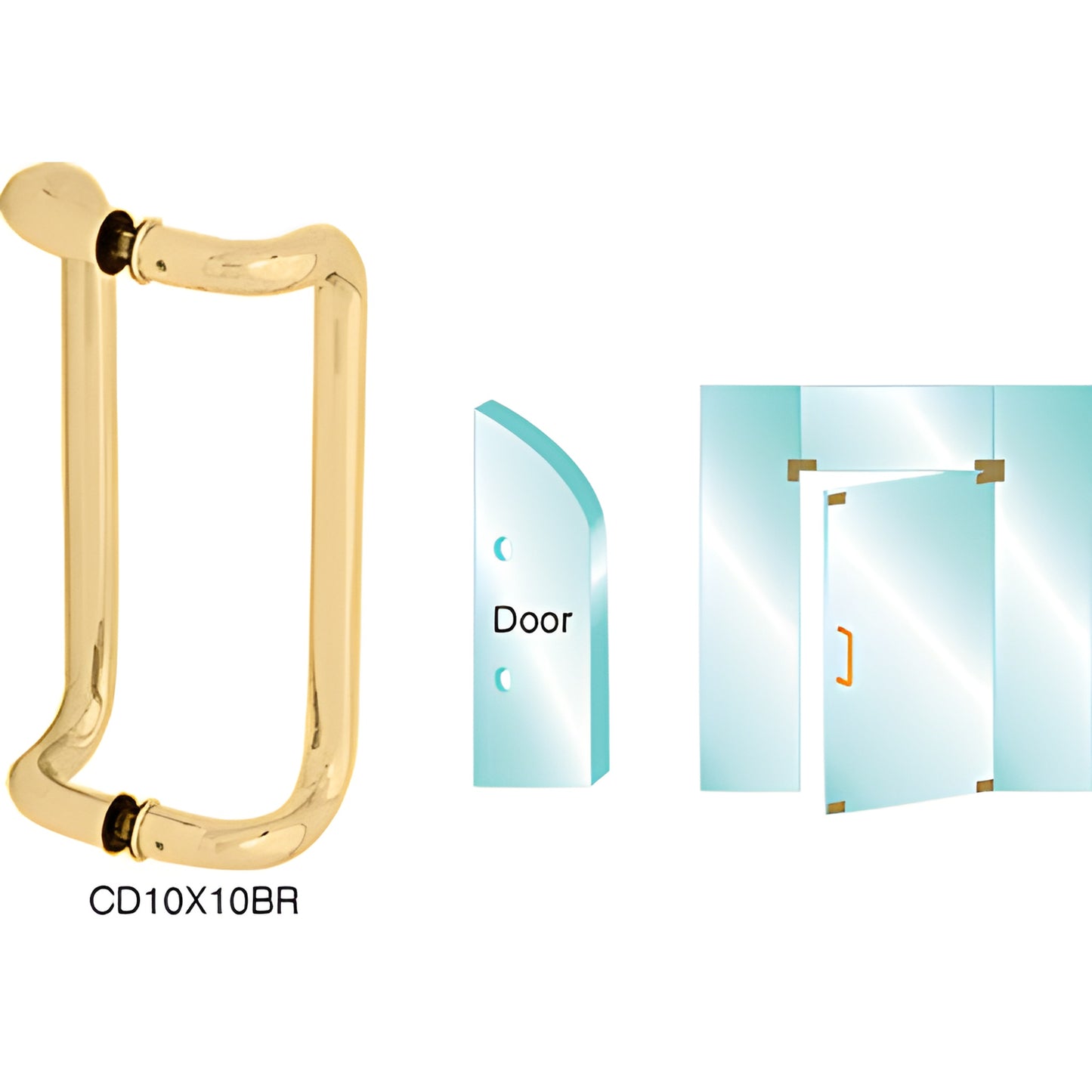

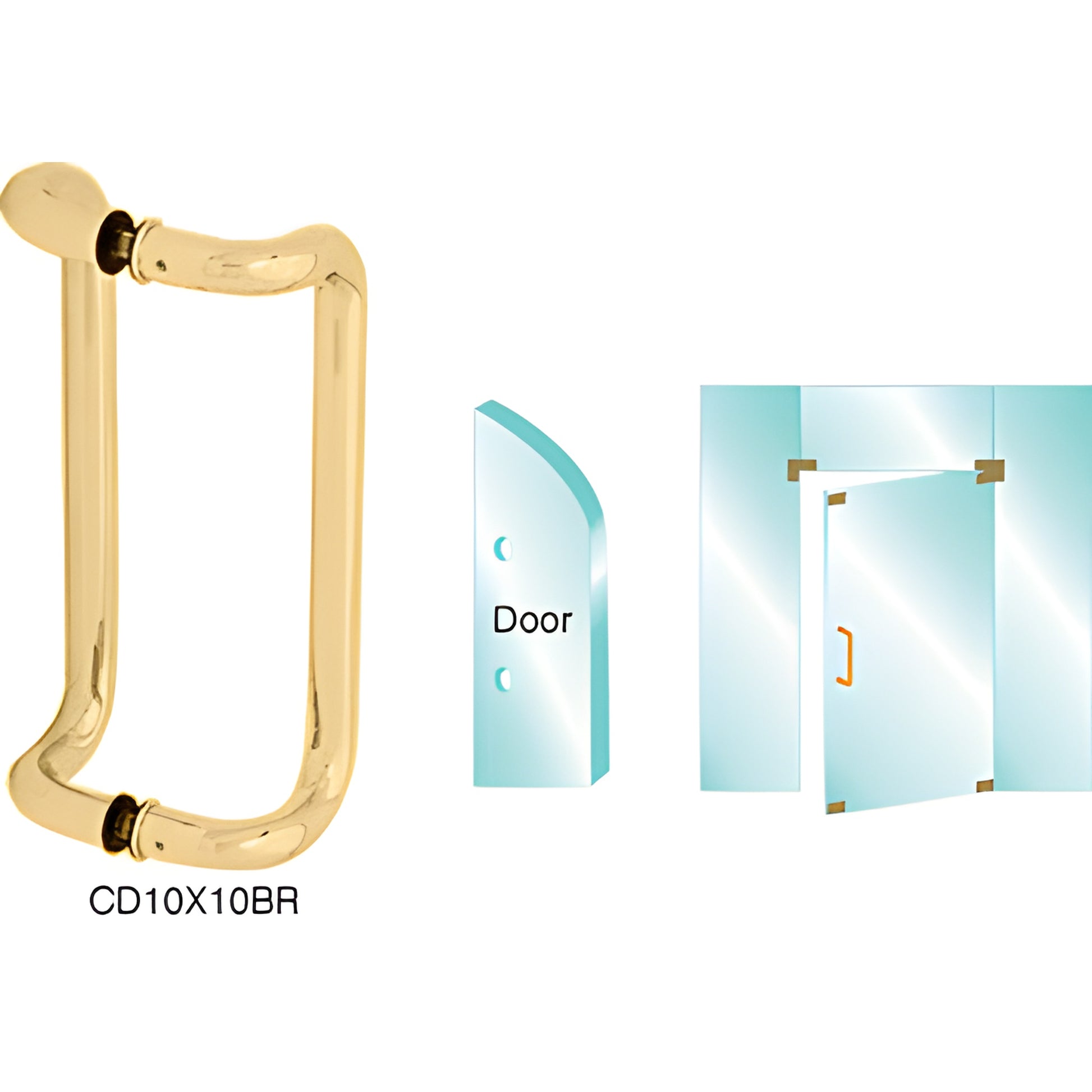

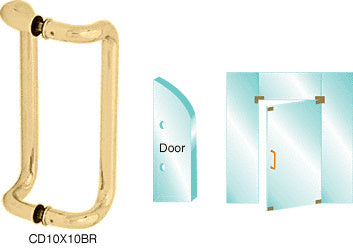

CRL 10" Brass Offset Pull Handle for Glass Doors
CRL 10" Brass Offset Pull Handle for Glass Doors
Regular price
$185.60 CAD
Regular price
Sale price
$185.60 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CD10X10BR
Shipping Weight: 2.535 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 2.535 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Diameter
1 in. (25 mm)
Finish/Color
Polished Brass
Glazing Thickness
3/8 in. To 3/4 in. (10 mm To 19 mm)
Material
Brass
Mounting Center To Center
10 in. (254 mm)
Mounting Hole Diameter
5/8 in. (16 mm)
Mounting Type
Back-to-Back
Style Washer Diameter
1-1/4 in. (32 mm)
Style Washers
Yes
Overview
- Stocked in up to five architectural finishes
- For use with 3/8" to 3/4" (10 to 19 mm) glass
- Complete with matching finish metal washers and through-bolts for mounting
- Use monolithic tempered glass
This CRL Glass Mounted Standard Pull Handle is available in three sizes and multiple architectural finishes. Ideal for glass door projects requiring a sturdy, finished look on monolithic tempered glass.
SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) glass
Construction: 1" (25 mm) diameter stainless steel or brass tubing
- *1-1/4" (32 mm) diameter stainless steel (Cat. No. CD24X24BS125 model only)
Glass Fabrication Required: Two 5/8" (16 mm) diameter holes
INCLUDES:
2 Each: Through-bolts for glass mounting
4 Each: 1-1/4" (32 mm) diameter matching finish metal washers and rubber gaskets
Brass Finish Advisory:
Although durable, brass is prone to oxidation and may develop a tarnished appearance over time. See the Brass Finish Disclaimer in the Technical References section for care and maintenance details.
SKU: CD10X10BR
Choose this CRL glass-mounted pull handle for reliable mounting hardware, matching finish washers, and compatibility with 3/8"–3/4" tempered glass. Order now to complete your glass door installation.
