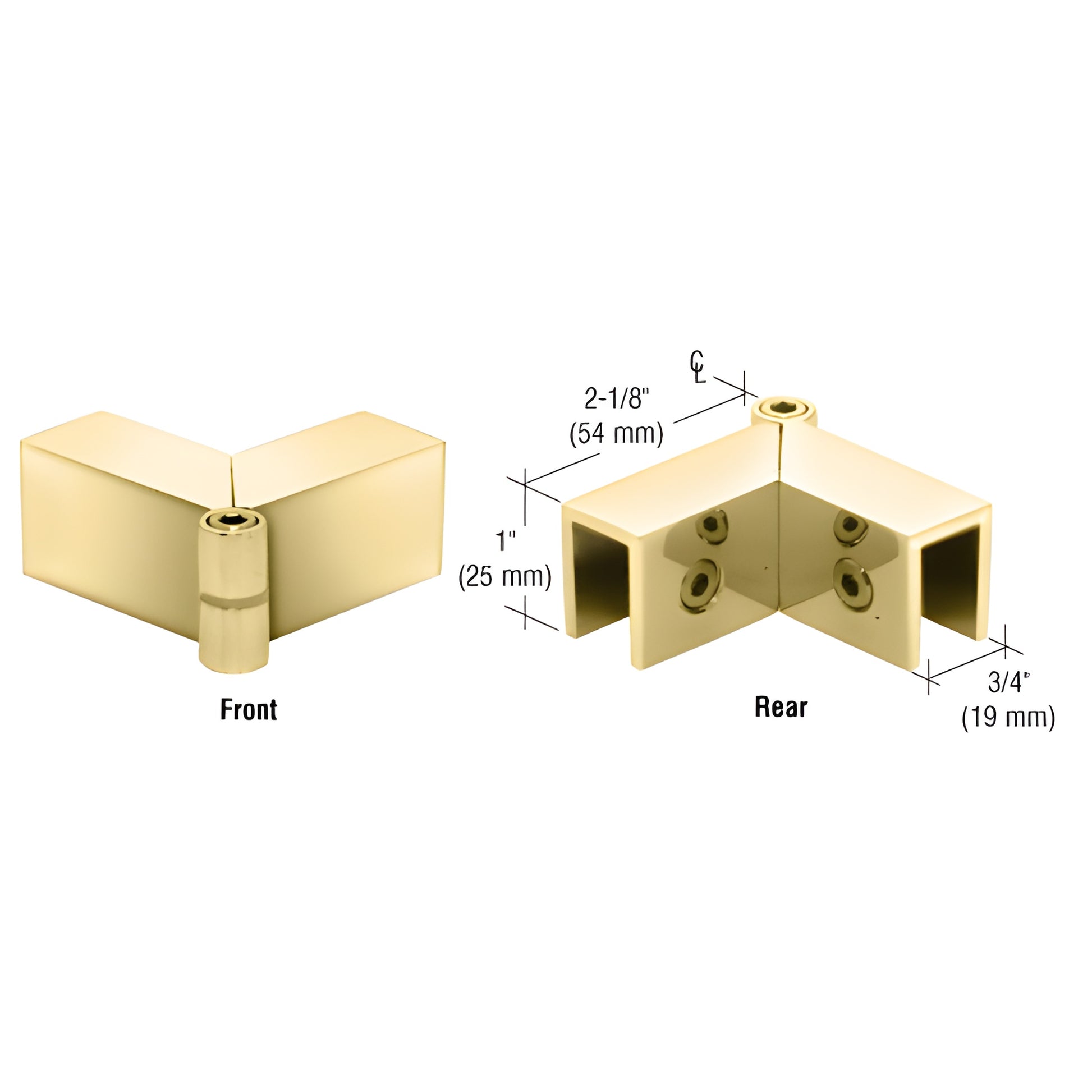

CRL Brass Adjustable Sleeve-Over Clamp for Frameless Shower Door

• For 5/16" to 1/2" (8 to 12 mm) thick glass
• Use monolithic tempered glass
• Adjustable from 90° to 180°
• Solid brass construction
• Assists with shear forces on glass panels
• Holds panels in position while sealant cures

CRL Sleeve Over Glass Clamps (SKU: S0GC91BR) are solid-brass frameless shower glass clamps designed to mechanically support shear loads on 8–12 mm tempered glass without special glass fabrication. Use these clamps to temporarily secure square-cut or mitered panels while silicone sealant cures—the sealant provides long-term pull strength and water protection. Clamps tighten with nylon-tipped Allen set screws and include gaskets for a secure, glass-friendly fit.

Key Differentiators:

• Solid brass for durability and corrosion resistance
• No glass fabrication required — installs on existing tempered glass
• Adjustable hinge from 90° to 180° for versatile frameless shower configurations
• Includes gaskets and nylon-tipped set screws to protect glass

SPECIFICATIONS:
Material: Solid brass
Glass Thickness Range: 5/16" to 1/2" (8 to 12 mm)
Glass Type: Monolithic tempered glass recommended
No Glass Fabrication Required: Clamps tighten using nylon-tipped Allen screws
Includes: Gaskets

NOTE: These clamps are not designed to replace headers or a support bar. For structural guidance, contact CRL Frameless Shower Technical Sales. Can be used on both square-cut and mitered panels.

Product Warning:
These clamps are not designed to take the place of headers or a support bar.
