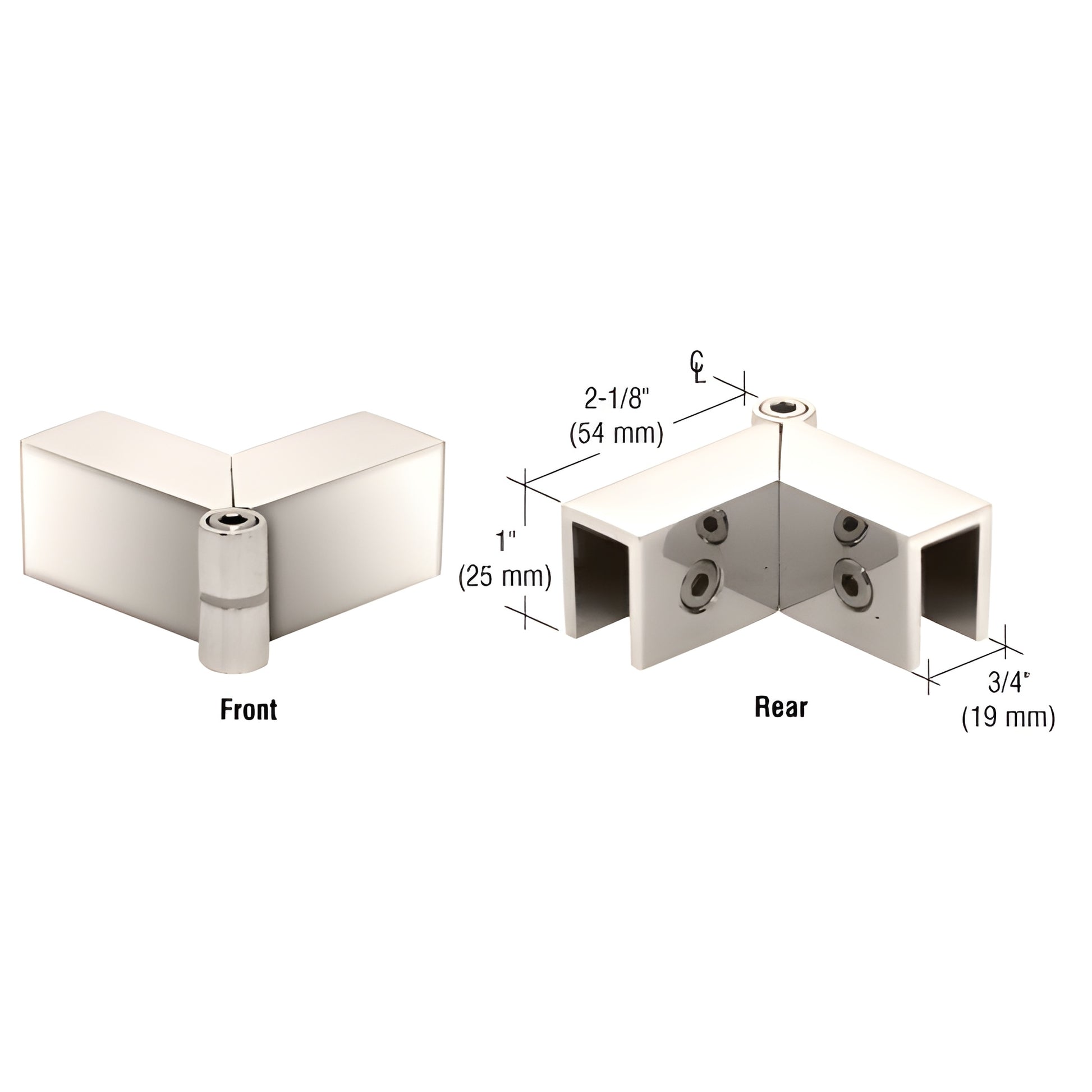

• Polished nickel sleeve-over corner glass clamp, brass, fits 8-12mm glass, adjustable 90-180 , SKU S0GC91PN.
1 1

CRL

CRL Polished Nickel Adjustable Sleeve-Over Glass Clamp

CRL Polished Nickel Adjustable Sleeve-Over Glass Clamp

$64.99 CAD
$64.99 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# S0GC91PN
Shipping Weight: 5.92 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Adjustable
Yes
Finish/Color
Polished Nickel
Glazing Thickness
5/16 in. To 1/2 in. (8 mm To 12 mm)
Material
Brass
Mounting Type
Glass To Glass

Overview

  • For 5/16" to 1/2" (8 to 12 mm) Thick Glass
  • Use Monolithic Tempered Glass
  • Adjustable from 90 to 180 Degrees
  • Solid Brass
  • Assists with Shear Forces
  • Holds Glass Panels in Position While Sealant Cures

CRL Sleeve Over Glass Clamps (SKU S0GC91PN) are frameless shower glass clamps and sleeve-over glass fasteners designed to absorb shear forces and secure glass panels without special glass fabrication. Ideal for frameless shower enclosures and other architectural glass installations, these solid brass clamps stabilize panels while silicone sealant cures—preventing movement and helping ensure a watertight joint. Clamps are tightened with nylon-tipped Allen set screws and include gaskets for a secure, non-marring fit.


SPECIFICATIONS:
Material: Solid Brass
Glass Thickness Range: 5/16" to 1/2" (8 to 12 mm)
No Glass Fabrication Required: Clamps tighten using nylon-tipped Allen screws; fits square-cut or mitered panels.
Includes: Gaskets

NOTE: These clamps provide mechanical support and positioning but are not a replacement for headers or a support bar. For load-bearing requirements, contact CRL Frameless Shower Technical Sales Department for guidance.


Product Warning:

These clamps are not designed to take the place of headers or a support bar.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and monitor settings.
