Product Details
- For 5/16" to 1/2" (8 to 12 mm) Thick Glass
- Use Monolithic Tempered Glass
- Adjustable from 90 to 180 Degrees
- Solid Brass
- Assists with Shear Forces
- Holds Glass Panels in Position While Sealant Cures

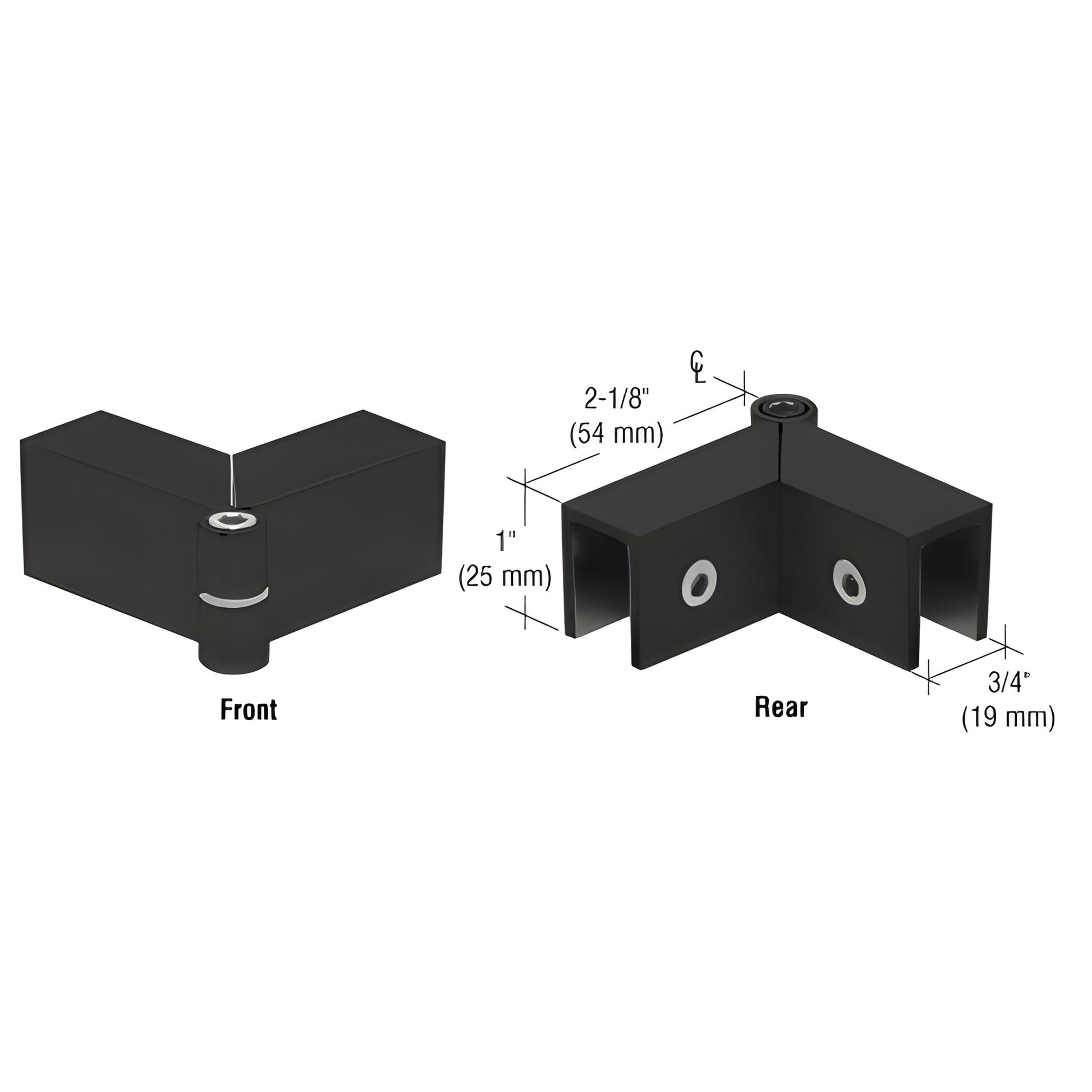

CRL Sleeve Over Glass Clamps are designed to provide a mechanical fastener to cover the shear forces placed on the glass panels. No special fabrication of the glass is required. Can also be used to secure the glass panels in position while the applied silicone sealant in the joint cures (the silicone sealant glues the glass panels together, prevents water leakage, and provides the pull strength to keep the panels from separating). Clamps are secured in place by nylon tipped Allen set screws.
SPECIFICATIONS:
Material: Solid Brass
Glass Thickness Range: 5/16" to 1/2" (8 to 12 mm)
No Glass Fabrication Required (Clamps tighten using nylon tipped Allen screws).
Includes: Gaskets
NOTE: These Clamps are not designed to take the place of Headers or a Support Bar. Contact CRL Frameless Shower Technical Sales Department for more details. Can be used on both square cut or mitered panels.
Product Warning:
These Clamps are not designed to take the place of Headers or a Support Bar.
