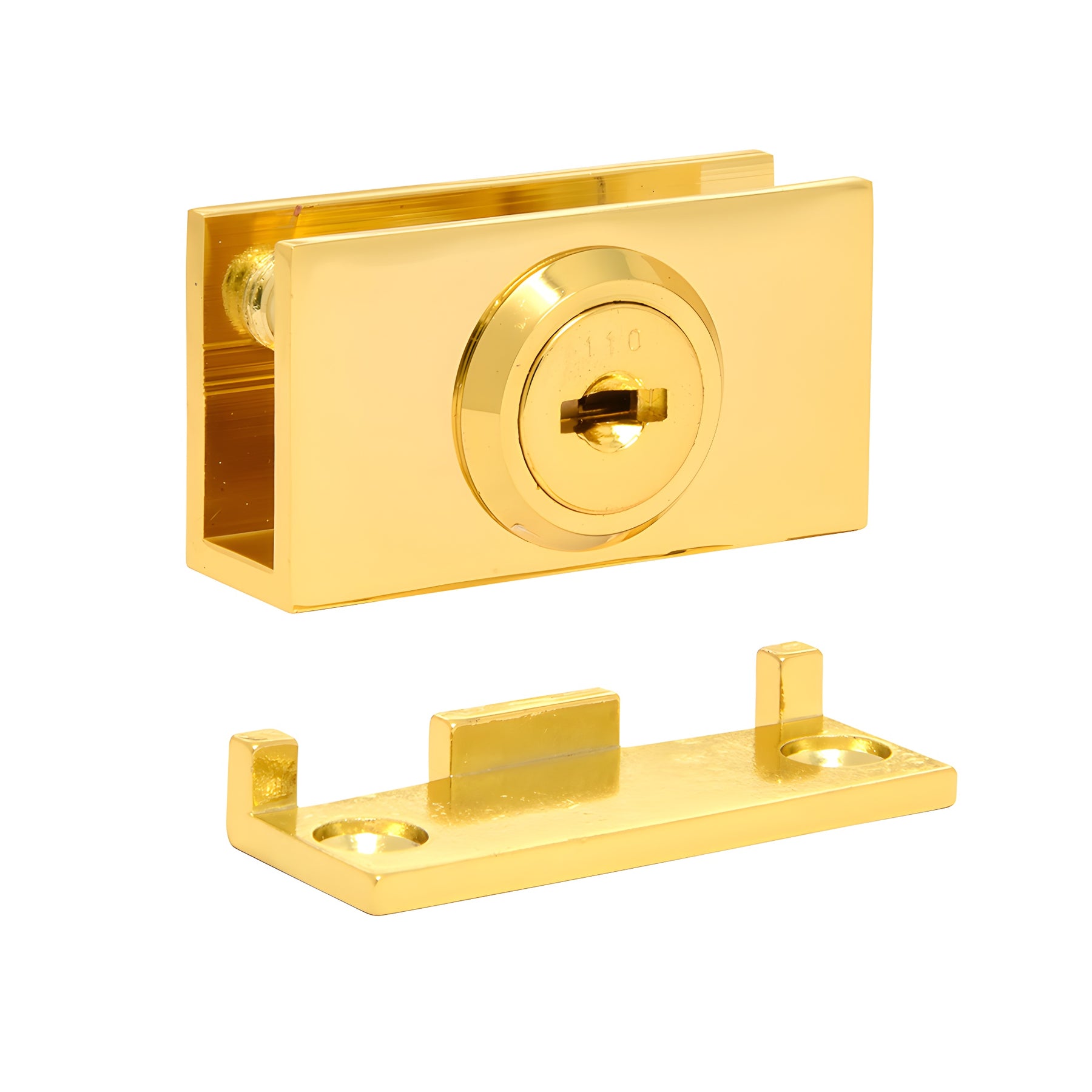

CRL Brass Cam Lock with Stop Plate for 1/4" or 3/8" Glass - Keyed Alike

• For 1/4" or 3/8" (6 to 10 mm) Thick Glass
• An Excellent Showcase Lock
• Chrome or Brass Finishes

CRL Cam Locks

are suitable for 1/4" or 3/8" (6 or 9.5 mm) thick glass. Tightening is done by means of two plastic tipped screws. The key can be removed in both the locked and unlocked positions. Lock is supplied with gaskets and template. A matching Stop Plate is included to match the finish of the lock of choice. A cut-out in the glass door is required for installation and a notch template is included in the package.

The key can be removed in both the locked and unlocked positions.

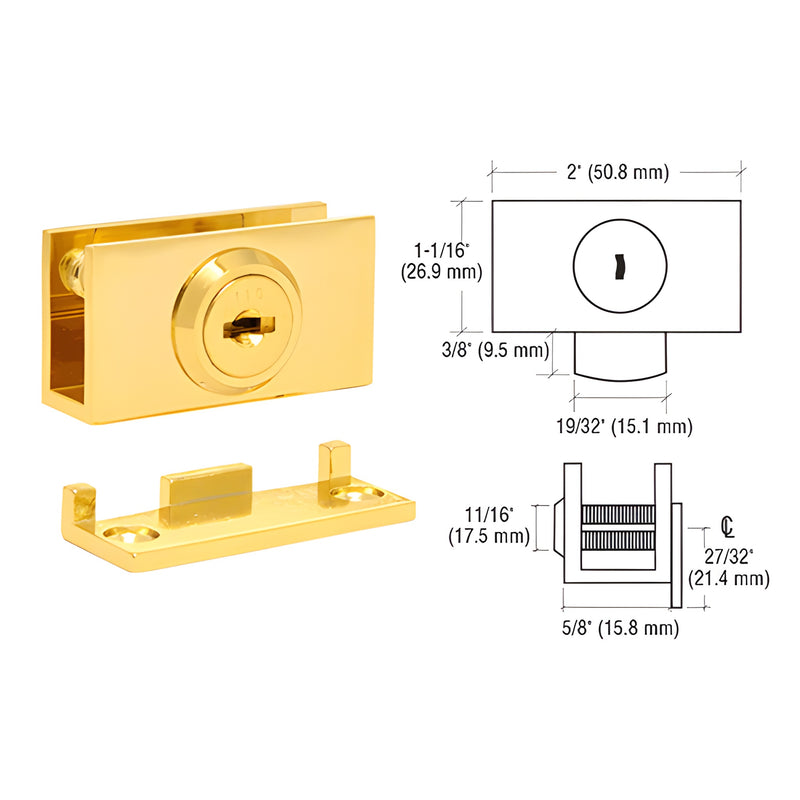

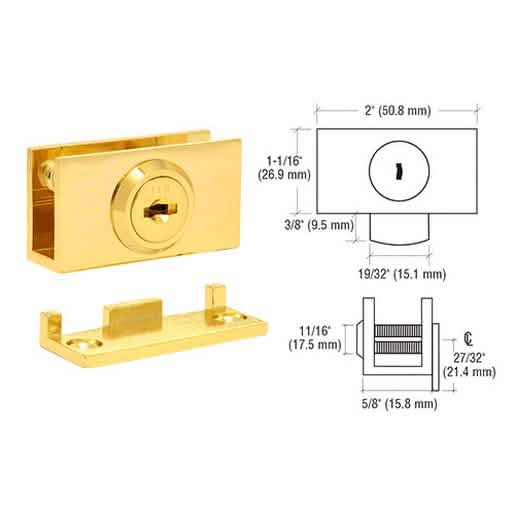

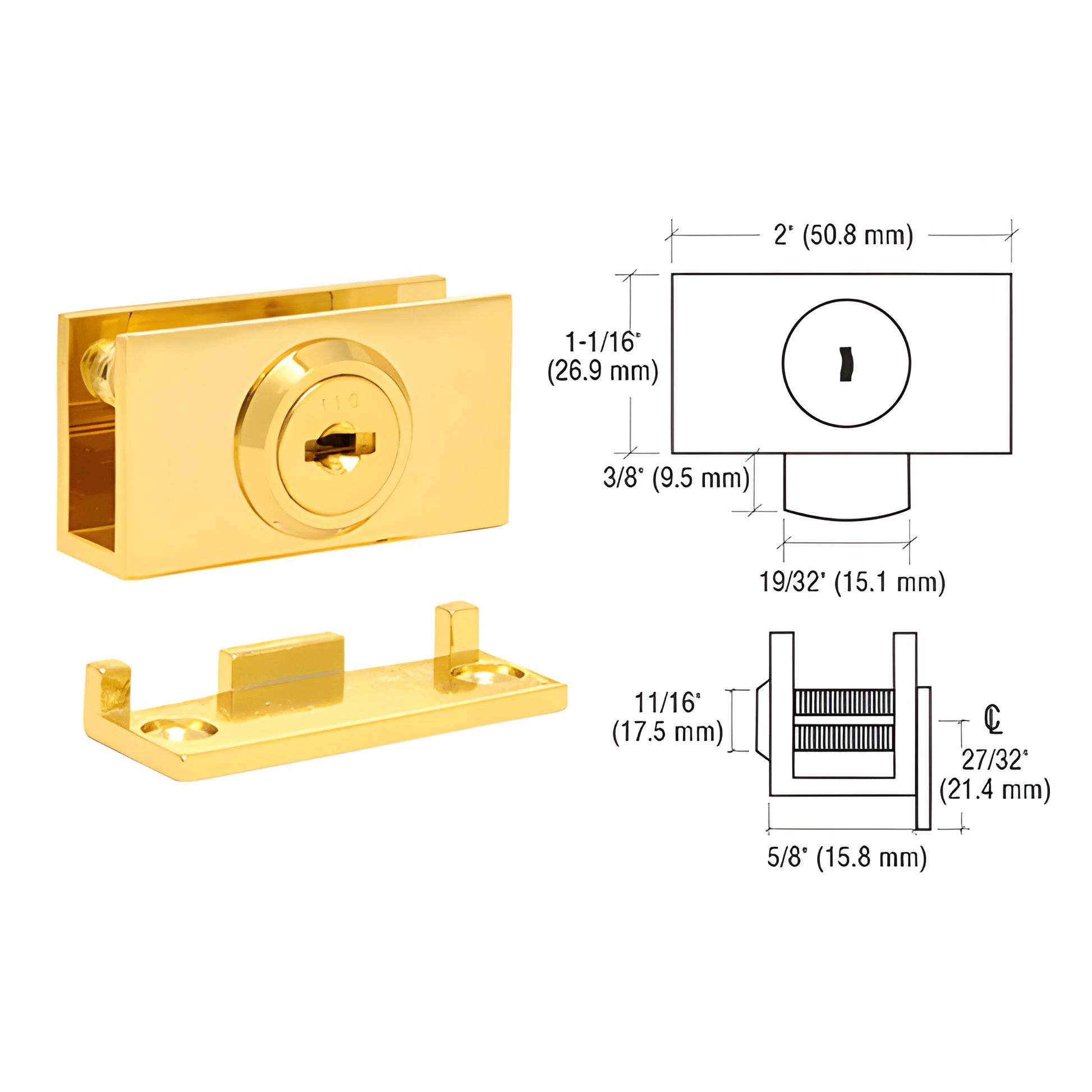

The inside channel dimension of this lock is .397" (10.08 mm). If installing Lock on 10 mm thick glass, measure the glass thickness prior to any glass fabrication.

Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
