Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and display settings.
CRL
CRL Brass Sidelite Transom Patch with Reversible Door Stop
CRL Brass Sidelite Transom Patch with Reversible Door Stop
Regular price
$91.36 CAD
Regular price
Sale price
$91.36 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PH60BR
Shipping Weight: 1.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Brass
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Mounting Type
Sidelite
Overview
- Fits 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass
- Door can swing either in or out (reversible)
- Designed for monolithic tempered glass only — not for laminated glass

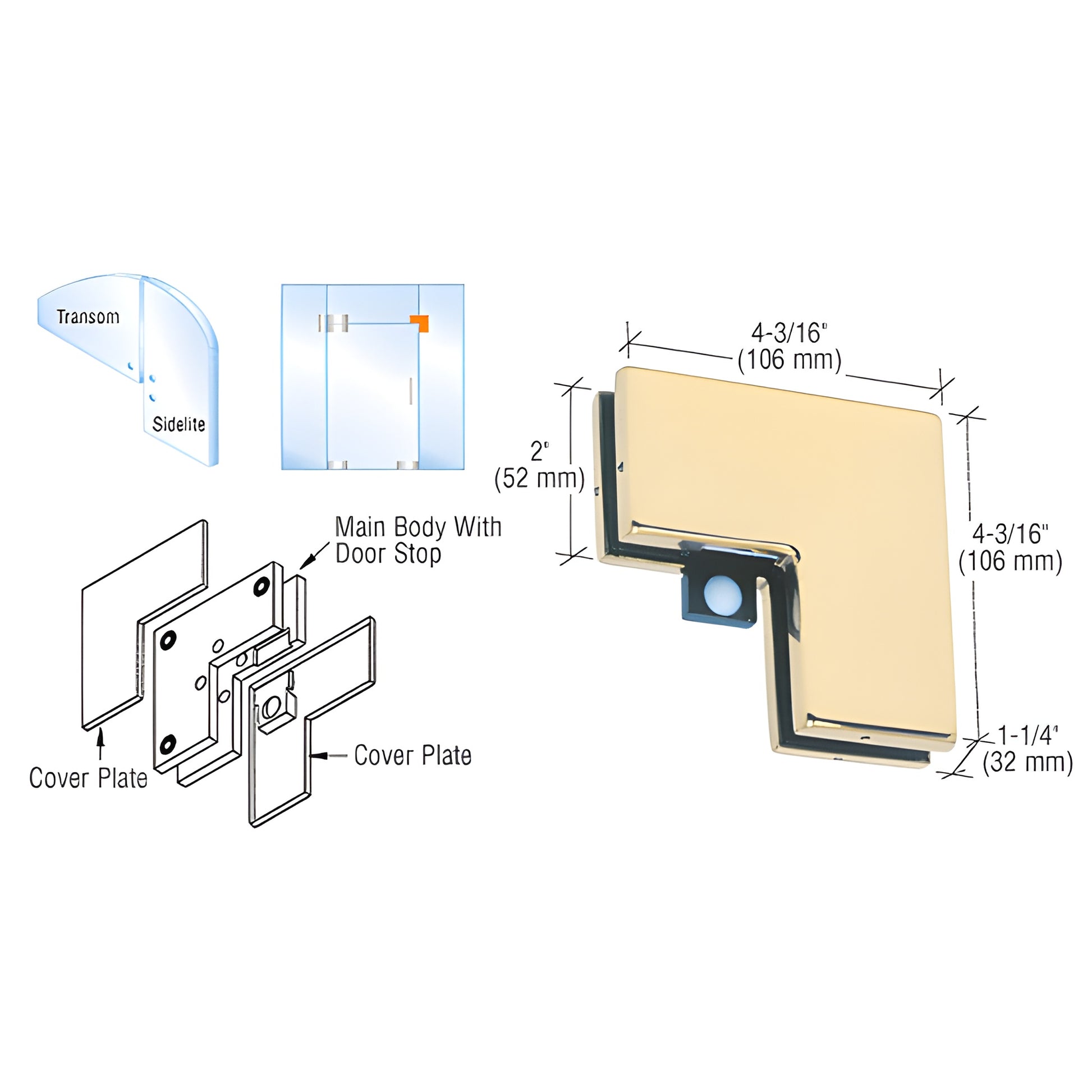

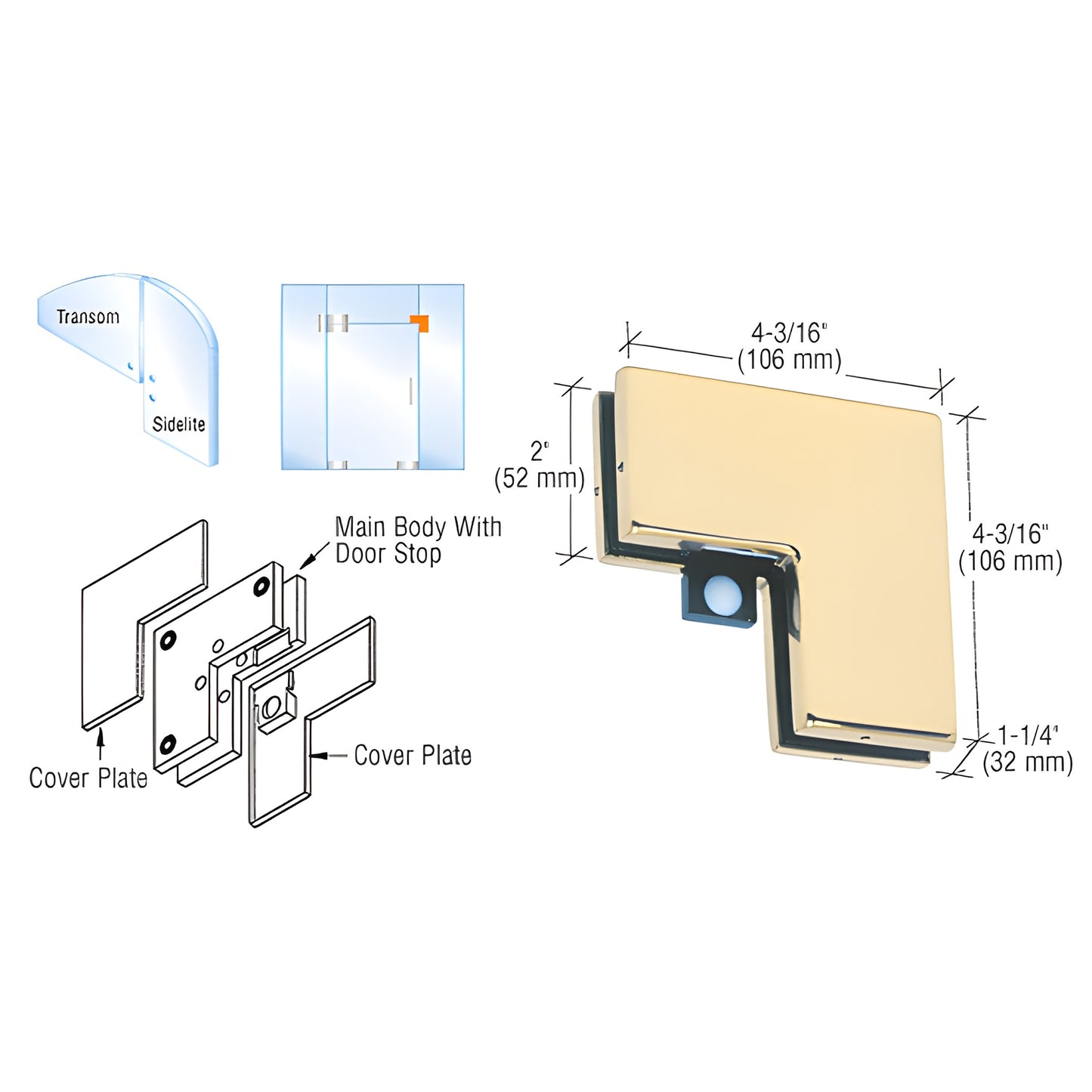

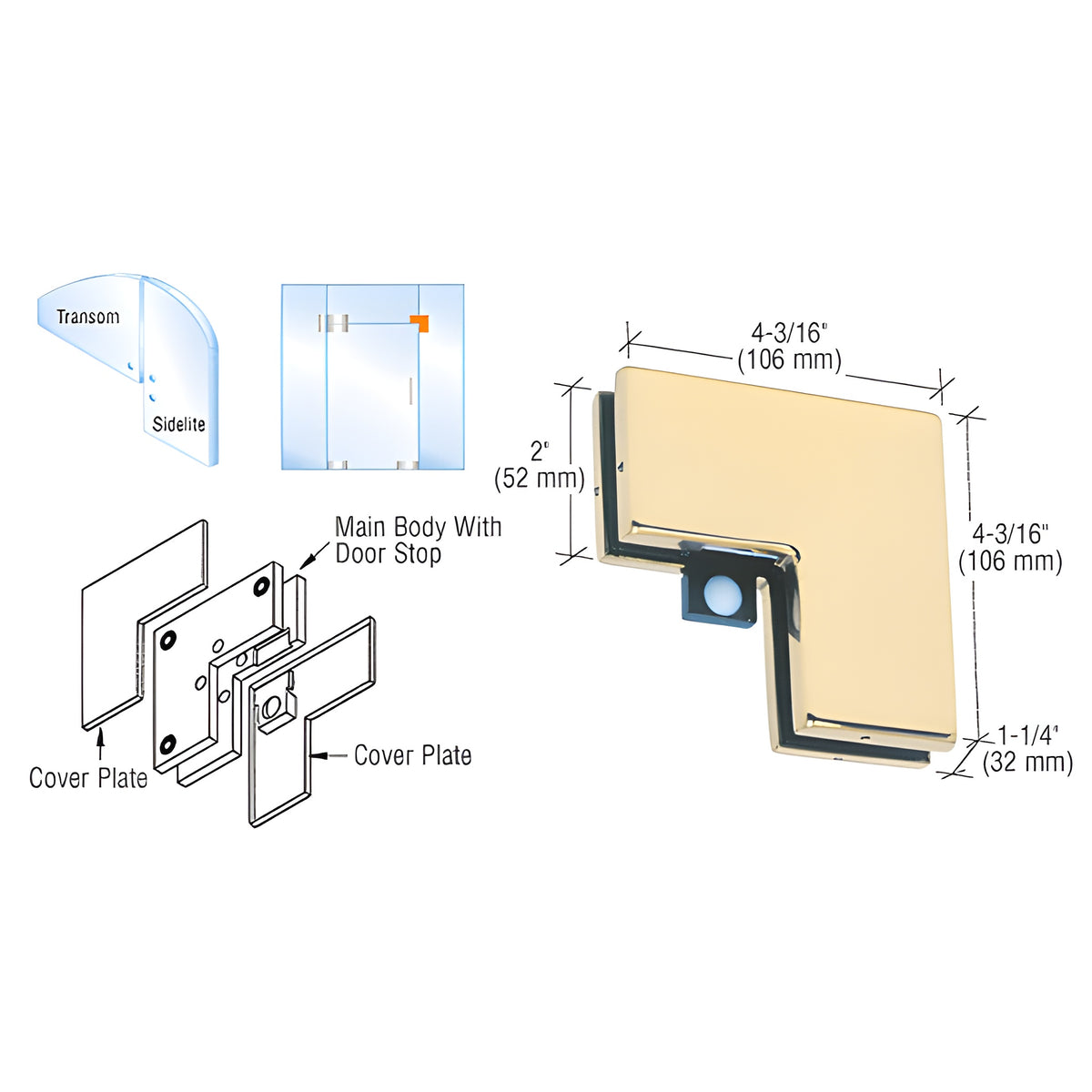

This CRL Sidelite Mounted Transom Patch Connector with Reversible Door Stop (SKU: PH60BR) connects a sidelite to a transom and is typically installed on the strike or swinging side of a glass door. The reversible door stop lets you quickly switch door swing from in-swing to out-swing; removing the stop converts the unit to a double-acting pivot — ideal for flexible commercial or residential glass door installations. This durable connector is a practical choice when you need a compact sidelite-to-transom patch connector for tempered glass applications.
GLASS FABRICATION REQUIRED:
Three 3/4" (19 mm) diameter holes in the glass
COMES WITH:
Template and installation instructions
Product Warning:
These fittings are not for use with laminated glass. Use only monolithic tempered glass as specified.
Brass Finish Advisory:
Although durable, brass is prone to oxidation and may develop a tarnished appearance over time regardless of packaging or storage. For maintenance and protection guidance, view the Brass Finish Disclaimer in the Technical References section.
Contact CRL Customer Service to confirm glass specs or to place an order.
Specifications
Cleaning & Maintenance
