CRL Polished Stainless Sidelite Transom Patch w/ Reversible Door Stop
CRL Polished Stainless Sidelite Transom Patch w/ Reversible Door Stop
Regular price
$89.93 CAD
Regular price
Sale price
$89.93 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PH60PS
Shipping Weight: 1.13 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.13 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Stainless Steel
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Mounting Type
Sidelite
Overview
- For 3/8" or 1/2" (10 or 12 mm) glass
- Doors can swing either in or out (reversible door stop)
- Use monolithic tempered glass

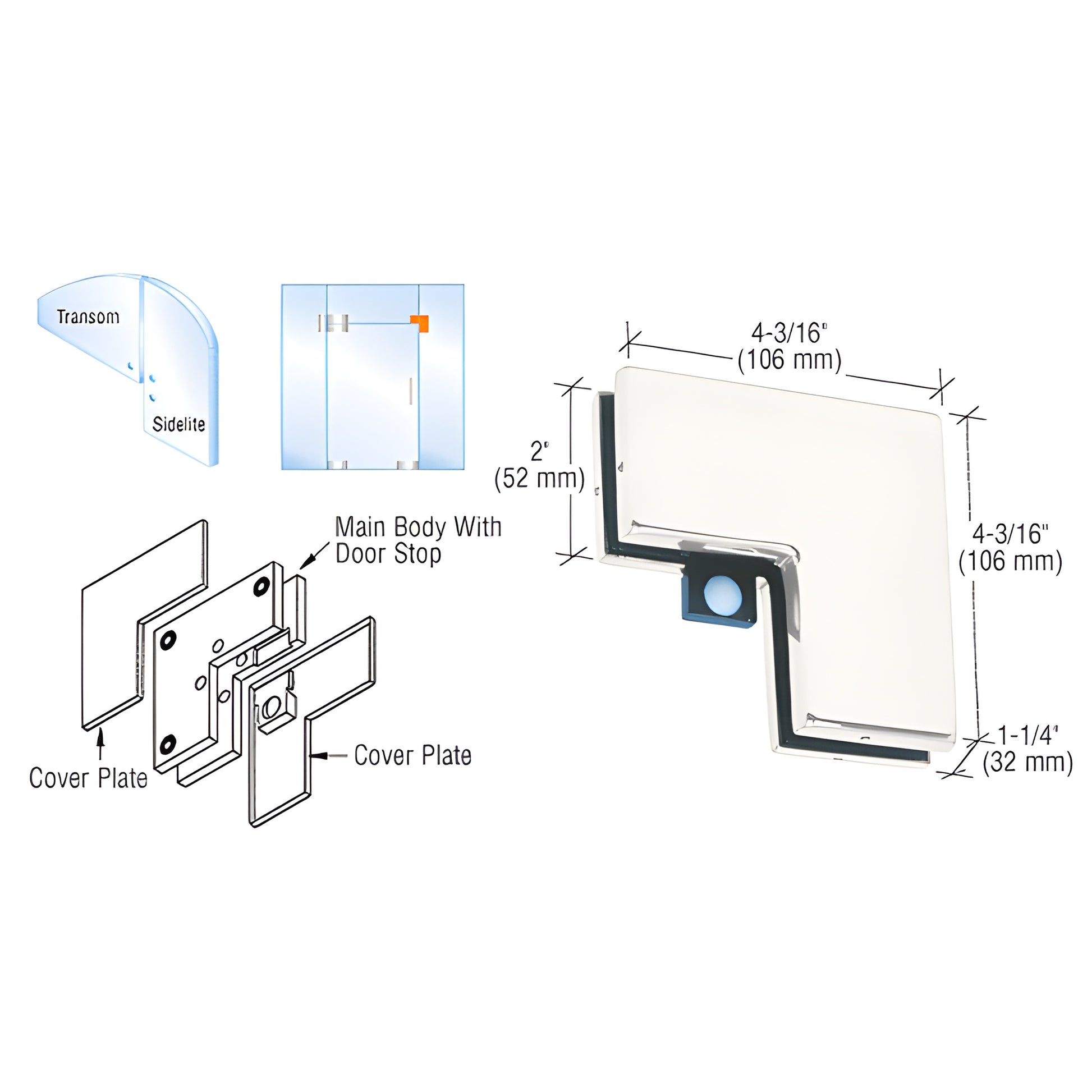

This CRL Sidelite Mounted Transom Patch Connector with Reversible Door Stop (SKU: PH60PS) connects a sidelite to a transom on the strike or swinging side of a glass door. The reversible door stop lets you quickly change door swing direction; remove the stop to convert to a double-acting door — ideal for frameless glass storefronts, office partition doors, and sidelite/transom assemblies.
GLASS FABRICATION REQUIRED:
Three 3/4" (19 mm) diameter holes
COMES WITH:
Template and instructions
Product Warning:
These fittings are not for use with laminated glass. Use only with monolithic tempered glass.
Stainless Steel Advisory:
Although stainless steel is corrosion-resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. For details, see the Stainless Steel Disclaimer in the Technical References section.
