CRL Satin Brass Glass Door Transom Patch w/ Reversible Door Stop
CRL Satin Brass Glass Door Transom Patch w/ Reversible Door Stop
Regular price
$99.94 CAD
Regular price
Sale price
$99.94 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PH60SB
Shipping Weight: 1.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Satin Brass
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Mounting Type
Sidelite
Overview
- For 3/8" or 1/2" (10 or 12 mm) Glass
- Doors Can Swing Either In or Out
- Use Monolithic Tempered Glass

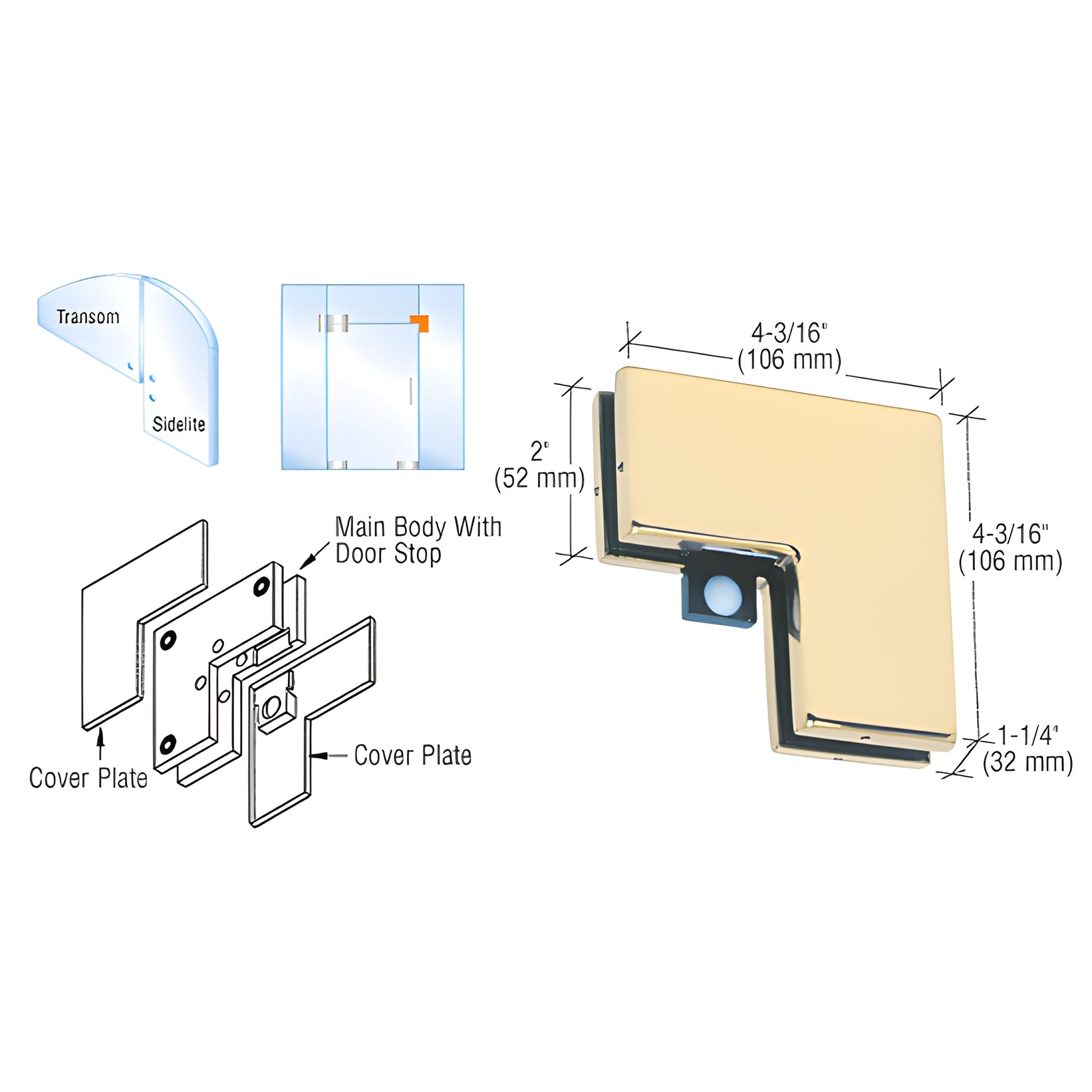

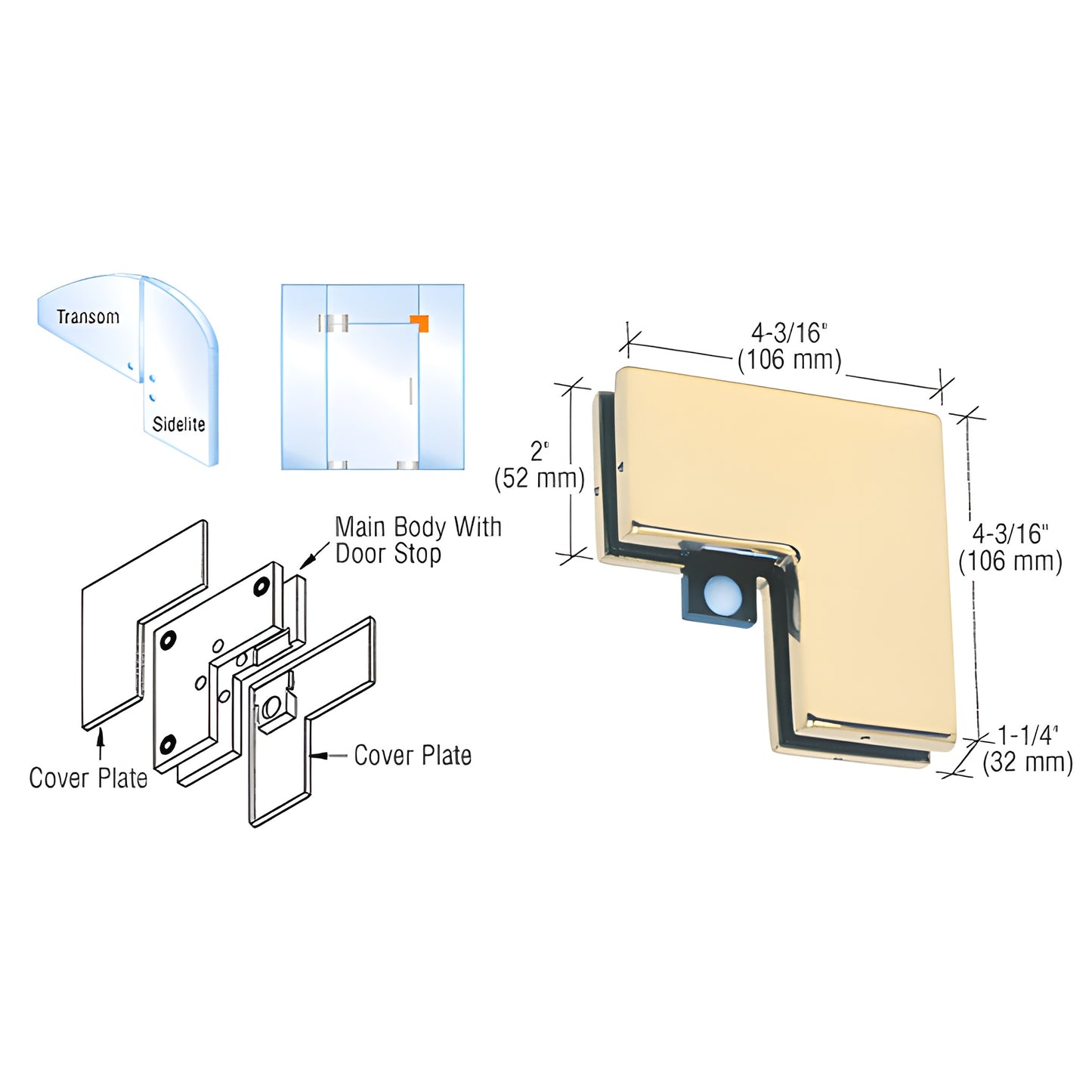

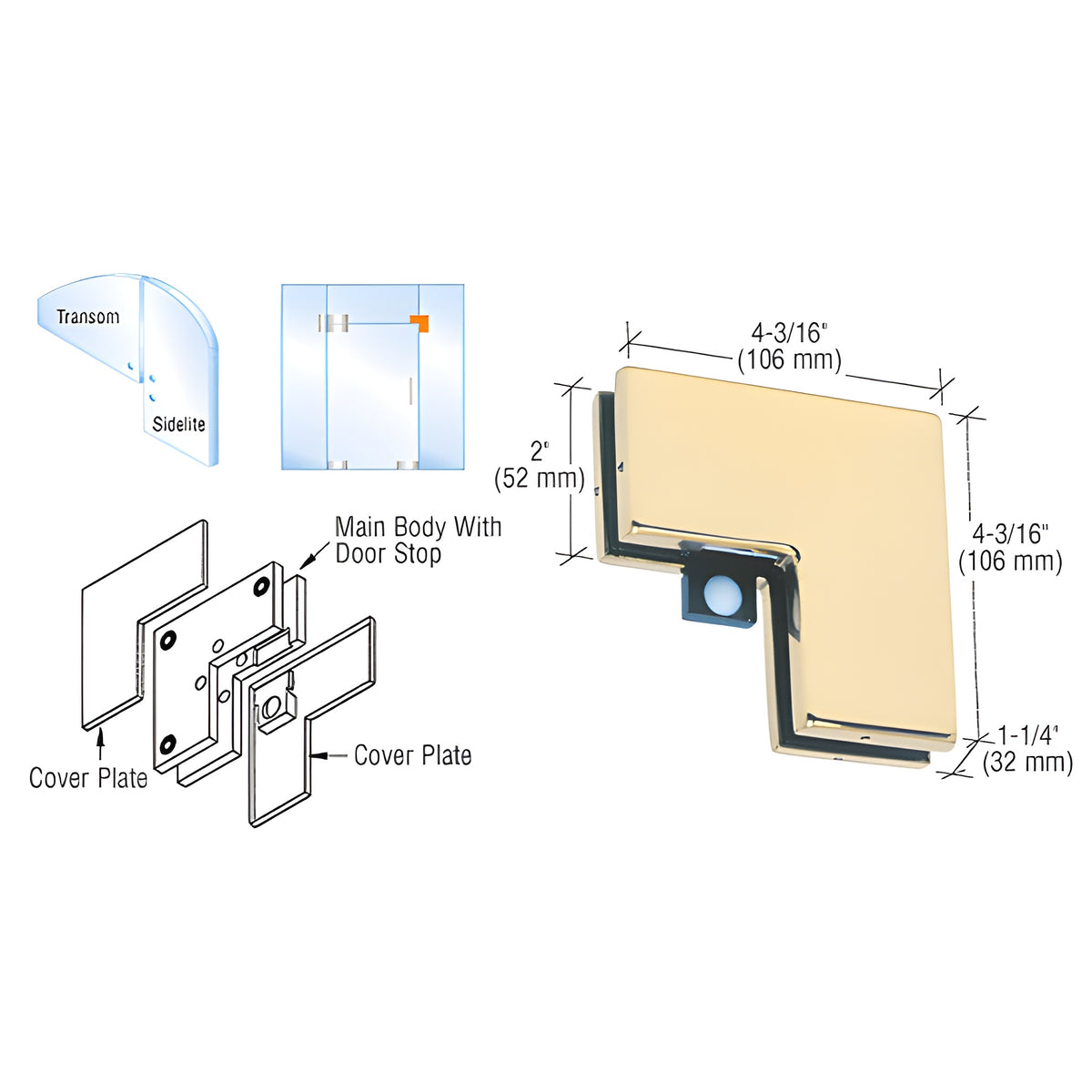

This CRL Sidelite Mounted Transom Patch Connector with Reversible Door Stop (SKU: PH60SB) connects a sidelite and transom for frameless glass door installations. Designed for the strike or swinging side of the door, the reversible door stop lets you quickly configure the door to swing in or out; removing the stop converts the unit to a double-acting door. Ideal for glass storefronts, office interiors, and commercial sidelite/transom assemblies where a clean, concealed patch connector is required.
GLASS FABRICATION REQUIRED:
Three 3/4" (19 mm) Diameter Holes
COMES WITH:
Template and Instructions
Product Warning:
These fittings are not for use with laminated glass. Use with monolithic tempered glass only.
Brass Finish Advisory:
Although durable, brass is prone to oxidation and may develop a tarnished appearance over time regardless of initial packaging or storage. For details, see the Brass Finish Disclaimer in the Technical References section.
