Product Details
- For 1/4" to 5/16" (6 to 8 mm) Glass
- No Holes or Cut-Outs Required on Glass Door
- Several Finishes
- 13/32" (10.3 mm) Top/Bottom Mounting Hole Required
- • Maximum recommended door width is 20" (508 mm).
- • Maximum weight should not exceed 28 lb. (12.7 kg).
- • One set "top and bottom" per pack. Product Warning:
- • Minimum clearance required = 5/16" (7.9 mm) top and 5/16" (7.9 mm) bottom.
- • INSTALLER determines the desired Width deductions considering clearance for Hardware, Locks, etc. (1/8" on hinge side, 1/8" between Doors is ideal)
- • Mounting/Pivot Pin = 3/8" from edge of Hinge to center of Pin Brass Finish Advisory: Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.

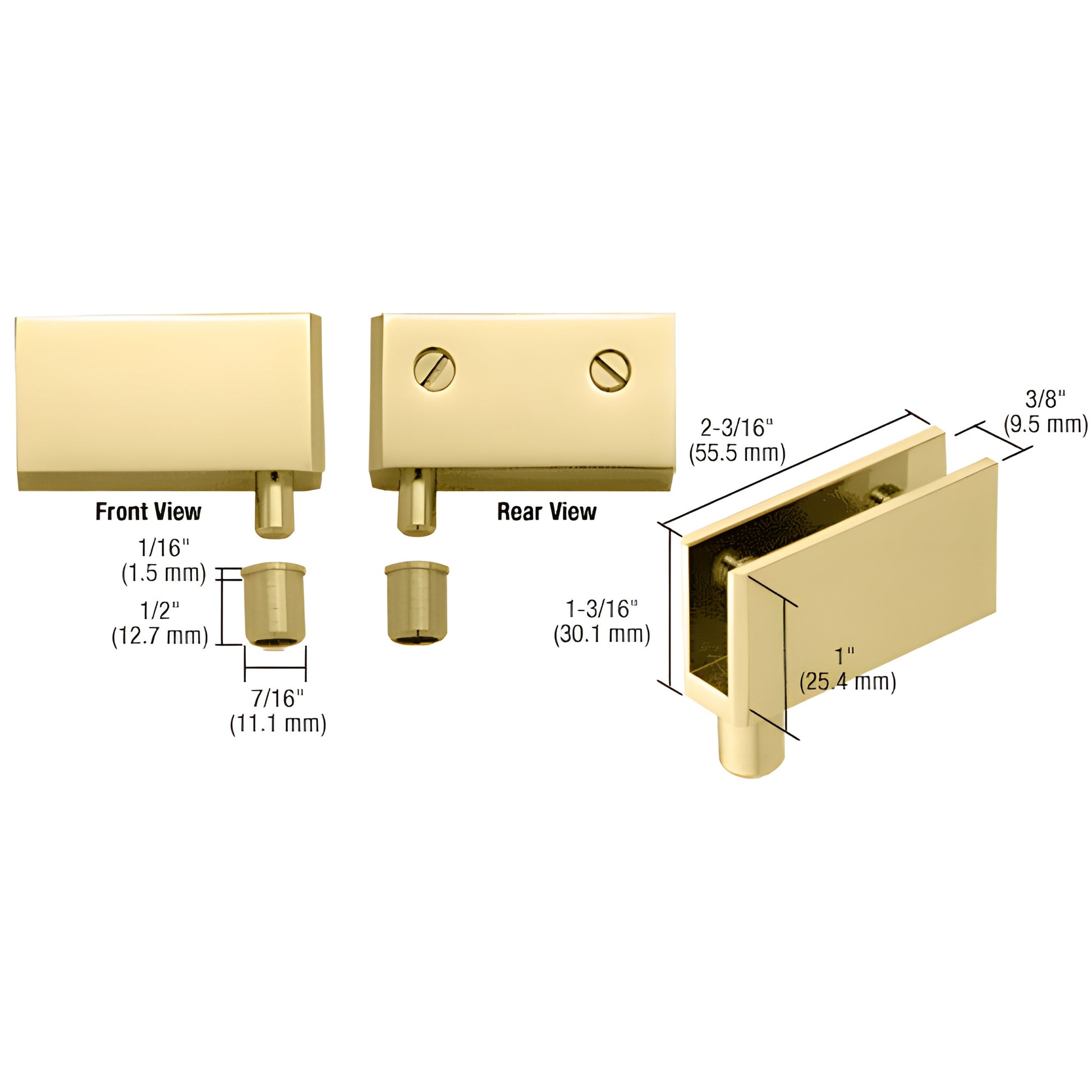

Installs in seconds, CRL's Wide Glass Door Pivot Hinges are similar to Cat. No. EH224 and Cat. No. EH226 but will accommodate larger and heavier doors. Simply tighten two set screws to secure to glass from 1/4" to 5/16" (6 to 8 mm) thick.
• Maximum recommended door width is 20" (508 mm).
• Maximum weight should not exceed 28 lb. (12.7 kg).
• One set "top and bottom" per pack.
Product Warning:
• Minimum clearance required = 5/16" (7.9 mm) top and 5/16" (7.9 mm) bottom.
• INSTALLER determines the desired Width deductions considering clearance for Hardware, Locks, etc.
(1/8" on hinge side, 1/8" between Doors is ideal)
• Mounting/Pivot Pin = 3/8" from edge of Hinge to center of Pin
Brass Finish Advisory:Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
