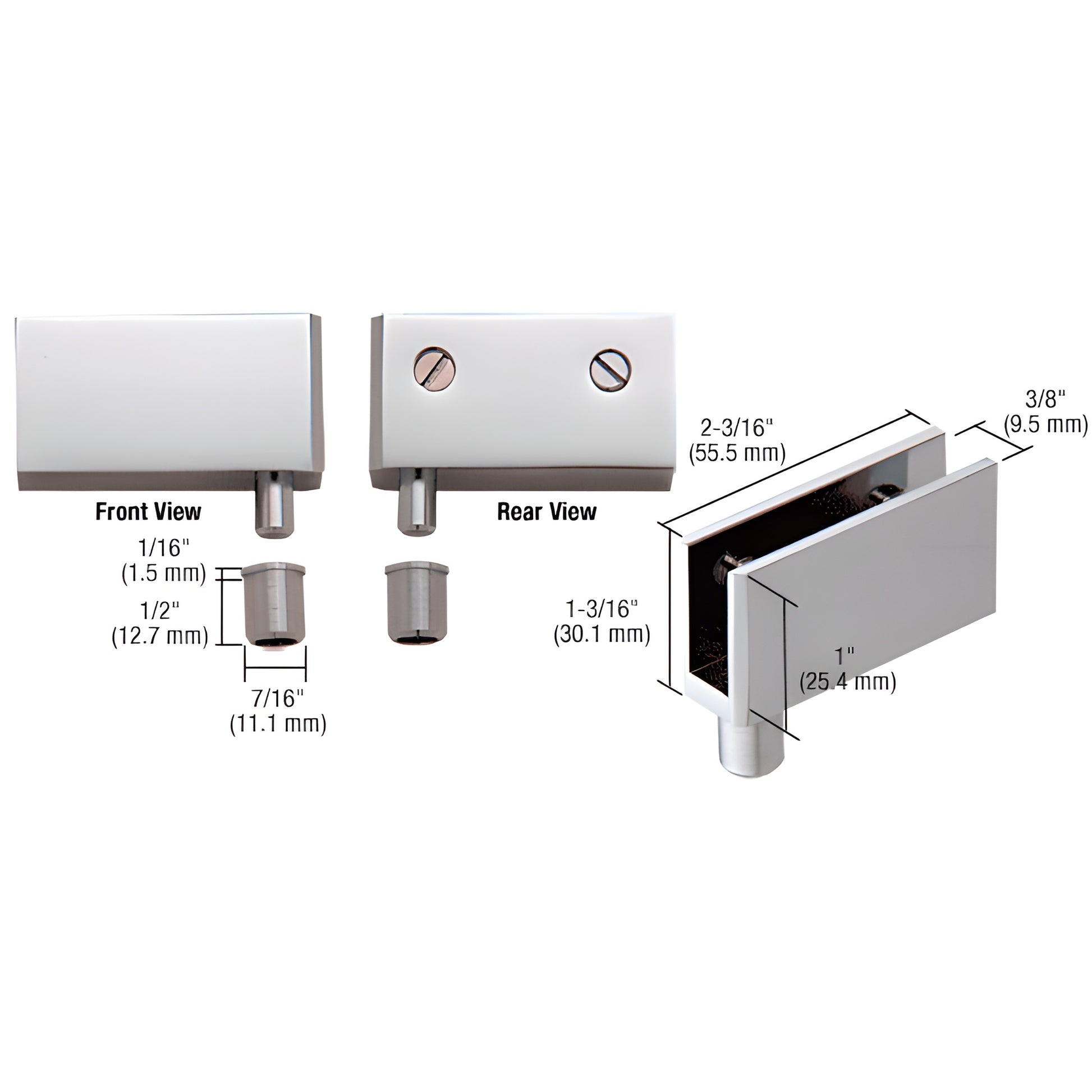

CRL Chrome Pivot Hinge for Wide Frameless Glass Doors
CRL Chrome Pivot Hinge for Wide Frameless Glass Doors
Regular price
$66.32 CAD
Regular price
Sale price
$66.32 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# EH324
Shipping Weight: 9.6 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 9.6 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Chrome
Glazing Thickness
1/4 in. To 5/16 in. (6mm To 8 mm)
Height
1-3/16 in. (30.2 mm)
Material
Brass
Maximum Door Width
20 in. (508 mm)
Pack Quantity
2
Weight Capacity
28 lbs. (12.7 kg)
Width
2-3/16 in. (55.6 mm)
Overview
- For 1/4" to 5/16" (6 to 8 mm) glass
- No holes or cut-outs required on glass door — clamp-on installation
- Several finishes available
- 13/32" (8.7 mm) top/bottom mounting hole required
Installs in seconds — CRL's Wide Glass Door Pivot Hinges (SKU: EH324) are similar to Cat. No. EH224 and Cat. No. EH226 but are engineered to accommodate larger, heavier frameless glass doors. Secure the hinge to 1/4"–5/16" (6–8 mm) glass by tightening two set screws; no drilling of the glass is necessary, making these pivot hinges ideal for frameless glass shower doors, interior glass doors, and retail display enclosures.
- Maximum recommended door width: 20" (508 mm)
- Maximum recommended door weight: 28 lb (12.7 kg)
- Sold as one set (top and bottom)
Product warnings & installation notes:
- Minimum clearance required: 5/16" (7.9 mm) top and 5/16" (7.9 mm) bottom
- Installer determines final width deductions for hardware and locks (recommended: 1/8" on hinge side and 1/8" between doors)
- Mounting/pivot pin location: 3/8" from edge of hinge to center of pin
Shop CRL Wide Glass Door Pivot Hinges (EH324) now to upgrade frameless glass installations with a quick, no-drill pivot solution.
Specifications
CAD Drawings - dwg
