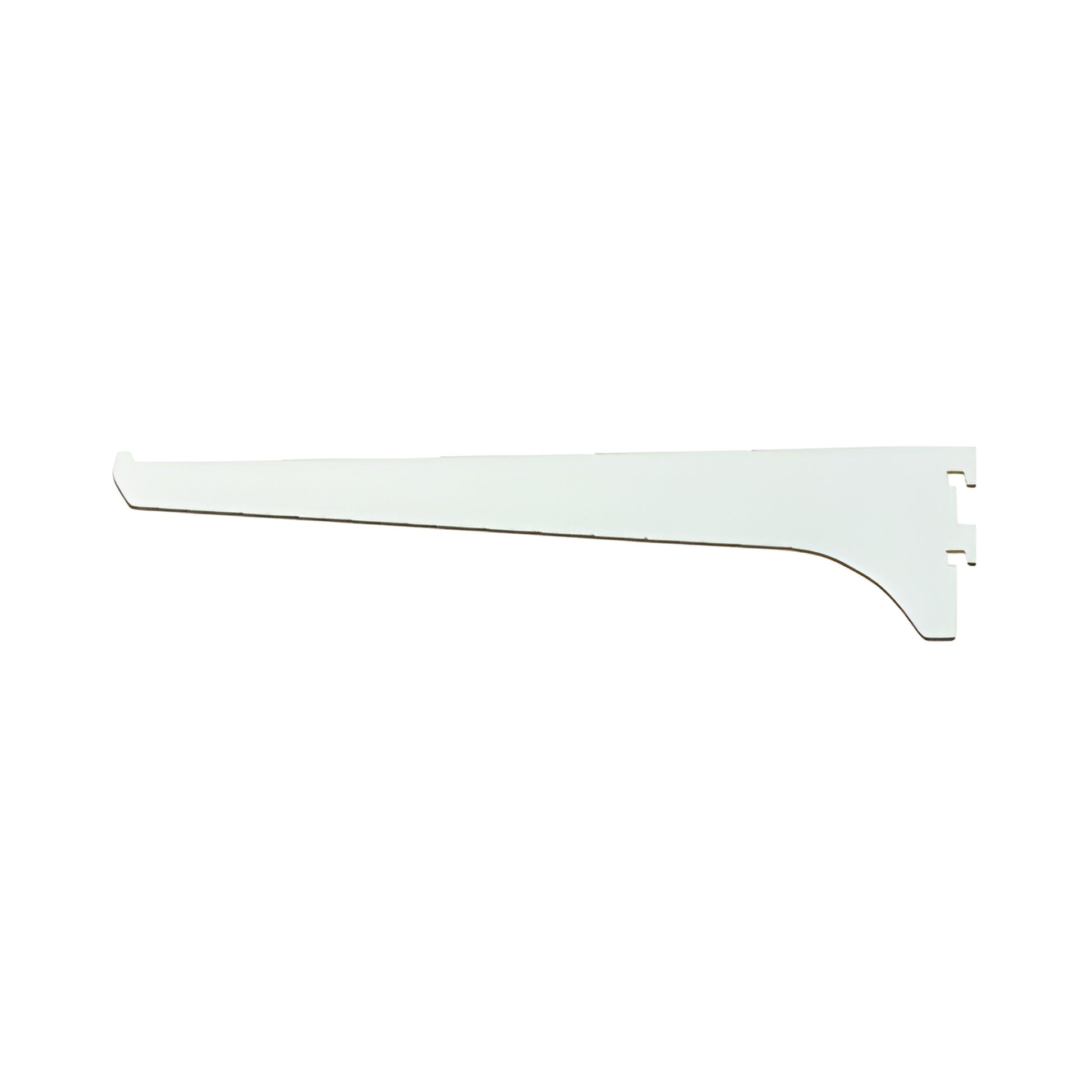

CRL Brite Anodized 10" Aluminum Bracket

• Available in Five Finishes and Five Lengths: 4", 6", 8", 10", and 12" (102, 152, 203, 254, and 305 mm)
• Fits CRL Series 22 and Series 322 Aluminum Standards (hidden-slot, slip-in design)
• Compact, no back flange — secures by tapping into the standard's hidden slot

CRL Aluminum Brackets (SKU: 122BA10) are slip-in aluminum shelf brackets offered in five finishes and five sizes. They are designed specifically for CRL Series 22 and Series 322 Aluminum Standards and do not include a back flange. Install by inserting into the hidden slot and lightly tapping down to secure. These brackets are not compatible with steel standards or bracket systems from other manufacturers.

Aluminum Bracket Weight Capacities
Based on two standards mounted 16" (406 mm) apart with screws into wall studs:
4" (102 mm) = 75 lbs (34 kg)
6" (152 mm) = 65 lbs (29 kg)
8" (203 mm) = 55 lbs (25 kg)
10" (254 mm) = 45 lbs (20 kg)
12" (305 mm) = 35 lbs (16 kg)

Installation Note:
Deduct 1/16" from the depth of the glass shelf when using aluminum brackets.


Contact CRL Customer Service to confirm finish availability or to request exact weights before ordering.
