CRL Brite Anodized 95" EZ-Adjust Aluminum Shower Door Header Kit

• Secures frameless shower enclosure not going to ceiling
• For monolithic tempered glass panels
• Allows horizontal (side-to-side) hinge adjustment after installation
• No drilling through header required for adaptor when using Prima Hinge PPH06 or Senior Prima Hinge SRPPH06
• Constructed of heavy 6063-T5 aluminum alloy
• Compatible with 5/16" (8 mm), 3/8" (10 mm), and 1/2" (12 mm) glass thicknesses

CRL EZ-Adjust Shower Door Header Kit (SKU: EHK98BA) — a frameless shower door header kit designed for secure, attractive installations where the enclosure does not reach the ceiling. Acting as a crown over the top of the glass, the EZ-Adjust header brackets to each wall and supports monolithic tempered glass panels. The system enables post-install horizontal adjustment of the hinge (PPH06 and SRPPH06 only), giving installers fine alignment control.

Because of a built-in hinge adaptation, Prima Hinge Model PPH06 and Senior Prima Hinge Model SRPPH06 require no drilling through the header when used with this kit. If using other top-mount pivot hinges, an adaptor block is required (sold separately) and drilling through the header will be needed to accommodate it.

The header is formed from heavy 6063-T5 aluminum alloy and is stocked in up to eight popular finishes. Choose from 95" (2.41 m) or 144" (3.66 m) stock lengths that can be cut to fit on-site. Each kit includes a snap-in filler insert for the door pocket, deluxe wall mounting brackets, and clear glazing vinyl for a complete frameless shower header solution.

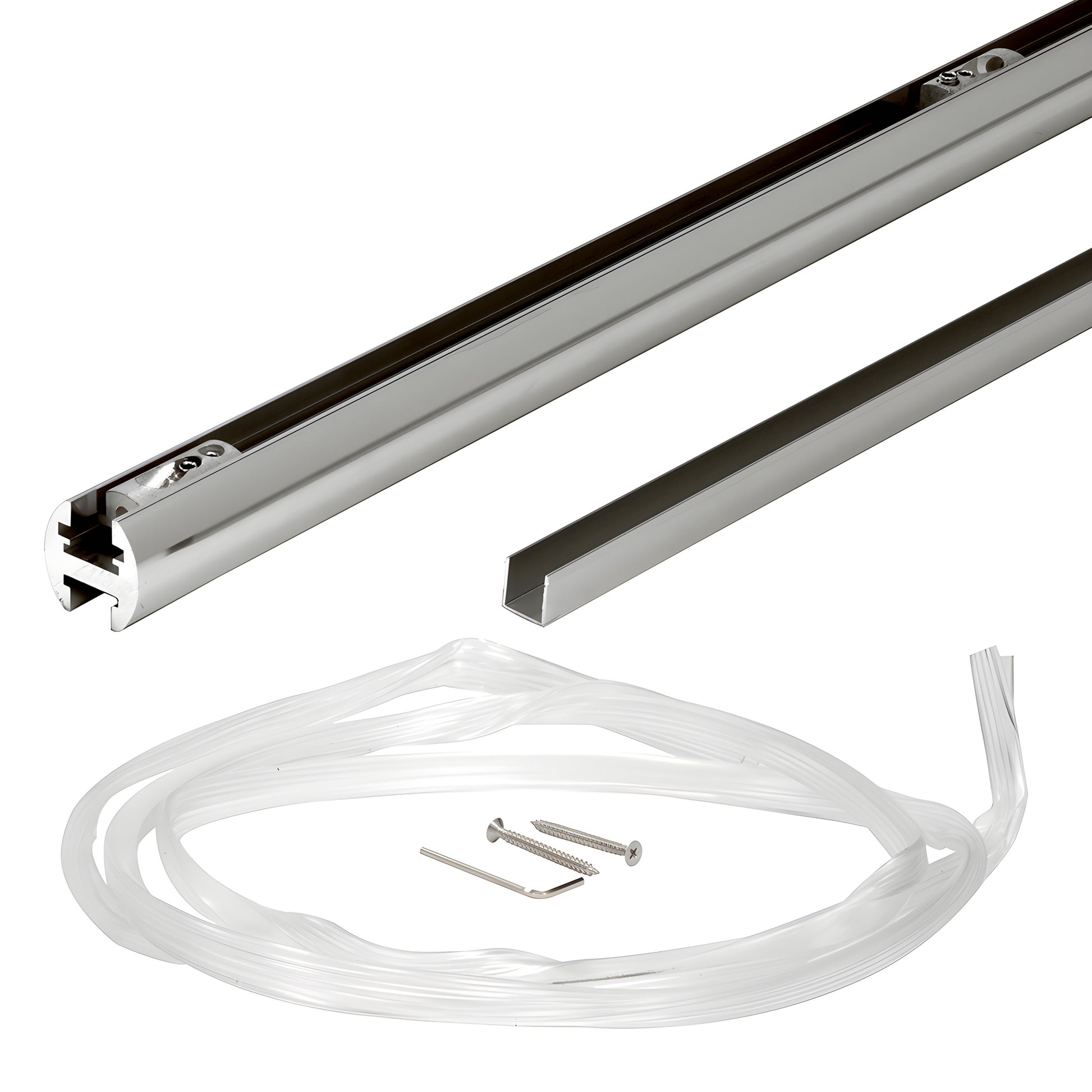

EACH EZ-ADJUST HEADER KIT CONTAINS:

• 1 — 95" (2.41 m) or 144" (3.66 m) header length
• 1 — 36" (914 mm) snap-in filler insert for door pocket
• 1 — Deluxe wall mount bracket kit (two brackets)
• 8' (2.44 m) of clear vinyl for 5/16" and 3/8" (8 and 10 mm) glazing

IMPORTANT NOTE / Product Warning: Prima Hinge Model PPH06 and Senior Prima Hinge Model SRPPH06 are compatible only with the EZ-Adjust header system due to their built-in adaptation — no drilling is required in the header when using these hinges. If other top-mount pivot hinges are used, an adaptor block must be ordered separately and drilling will be required through the header. Header attachment bracket: BWB2.
