- Secures frameless shower enclosure that does not reach the ceiling
- Use with monolithic tempered glass
- Allows horizontal (side-to-side) hinge adjustment after installation
- No header drilling required for adaptor when using Prima Hinge PPH06 or Senior Prima Hinge SRPPH06
- Constructed of heavy 6063‑T5 aluminum alloy
- Compatible with 5/16" (8 mm), 3/8" (10 mm), and 1/2" (12 mm) thick glass
The
CRL EZ-Adjust Shower Door Header Kit (SKU: EHK98SB) secures frameless shower enclosures that do not go to the ceiling, acting as a clean "crown" over the top of the glass. Bracketed to each wall, the EZ-Adjust Header Kit supports monolithic tempered glass and includes a hinge adjustment feature that lets the hinge move left or right after installation when using Prima Hinge PPH06 or Senior Prima Hinge SRPPH06. Because these hinges have a built-in adaptor interface, no drilling through the header is required for the adaptor block. Constructed from heavy 6063‑T5 aluminum alloy and stocked in multiple popular finishes, the kit is available in 95" and 144" (2.41 and 3.66 m) stock lengths for field cutting. Each kit includes a snap-in filler insert for the door pocket, deluxe wall mounting brackets, and clear glazing vinyl for a complete frameless shower door header solution.
IMPORTANT NOTE: Prima Hinge PPH06 and Senior Prima Hinge SRPPH06 are compatible only with the EZ-Adjust Header System due to the built-in hinge adaptation—no header drilling required when using these hinges. If using other top-mount pivot hinges, an adaptor block must be ordered separately and drilling through the header will be required to accommodate it.

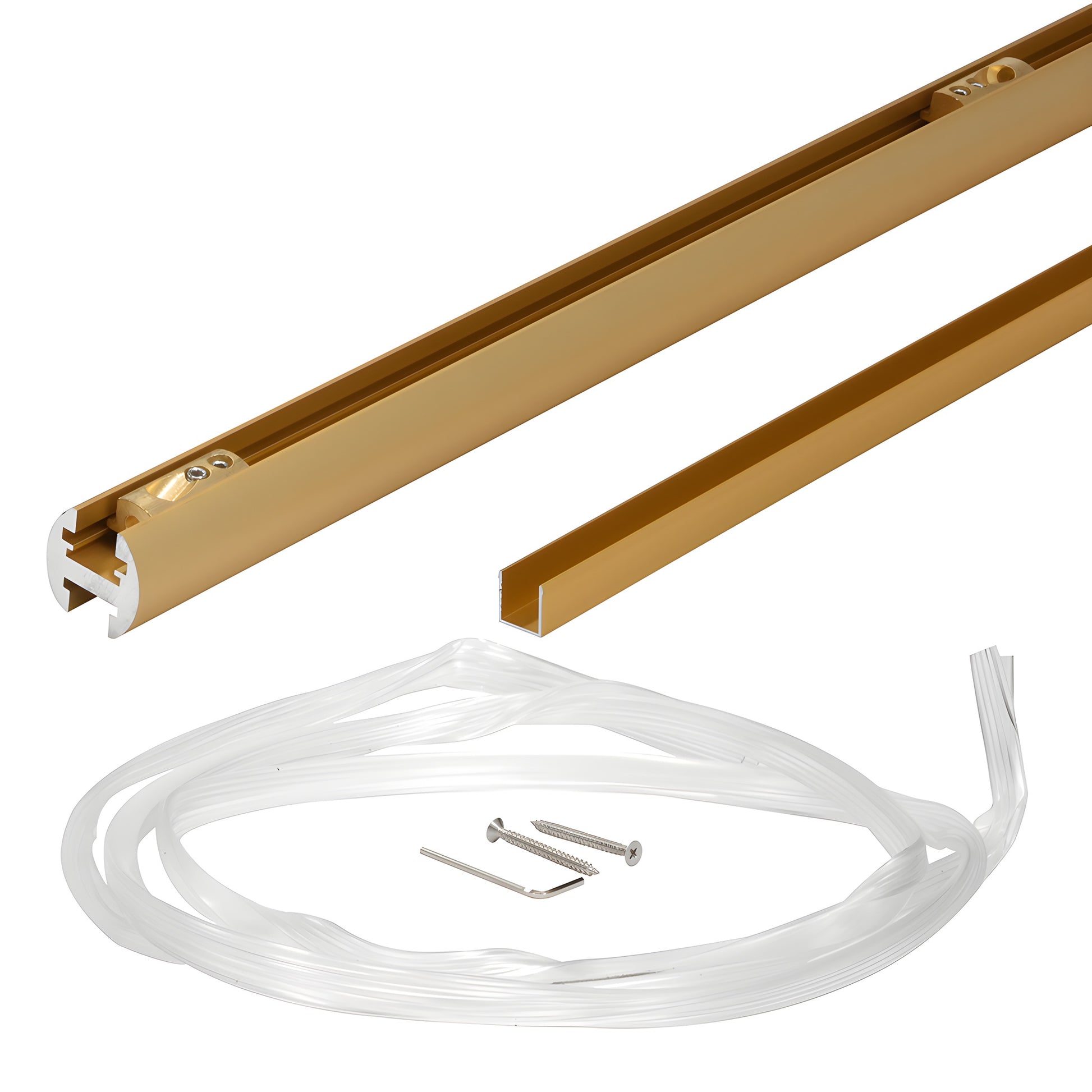

EACH EZ-ADJUST HEADER KIT CONTAINS:
1 – 95" (2.41 m) or 144" (3.66 m) header length
1 – 36" (914 mm) snap-in filler insert for door pocket
1 – Deluxe wall mount bracket kit (two brackets)
8' (2.44 m) of 5/16" and 3/8" (8 and 10 mm) clear vinyl
Product Warning:
Prima Hinge PPH06 and Senior Prima Hinge SRPPH06 can be used only with the EZ-Adjust Header System due to their built-in adaptation—no drilling required in the header when using those hinges. If using other top-mount pivot hinges, an adaptor block must be ordered separately and drilling will be required through the header to fit the adaptor block. Bracket used for header attachment is BWB2.
