CRL 3/4 in Bronze Roll-Formed Aluminum Standoff Screen Frame, 144 in

• Designed for Project‑In or Project‑Out Windows with Wicket Screens
• Roll‑formed aluminum, .025" (0.63 mm) wall thickness
• Multiple finishes available

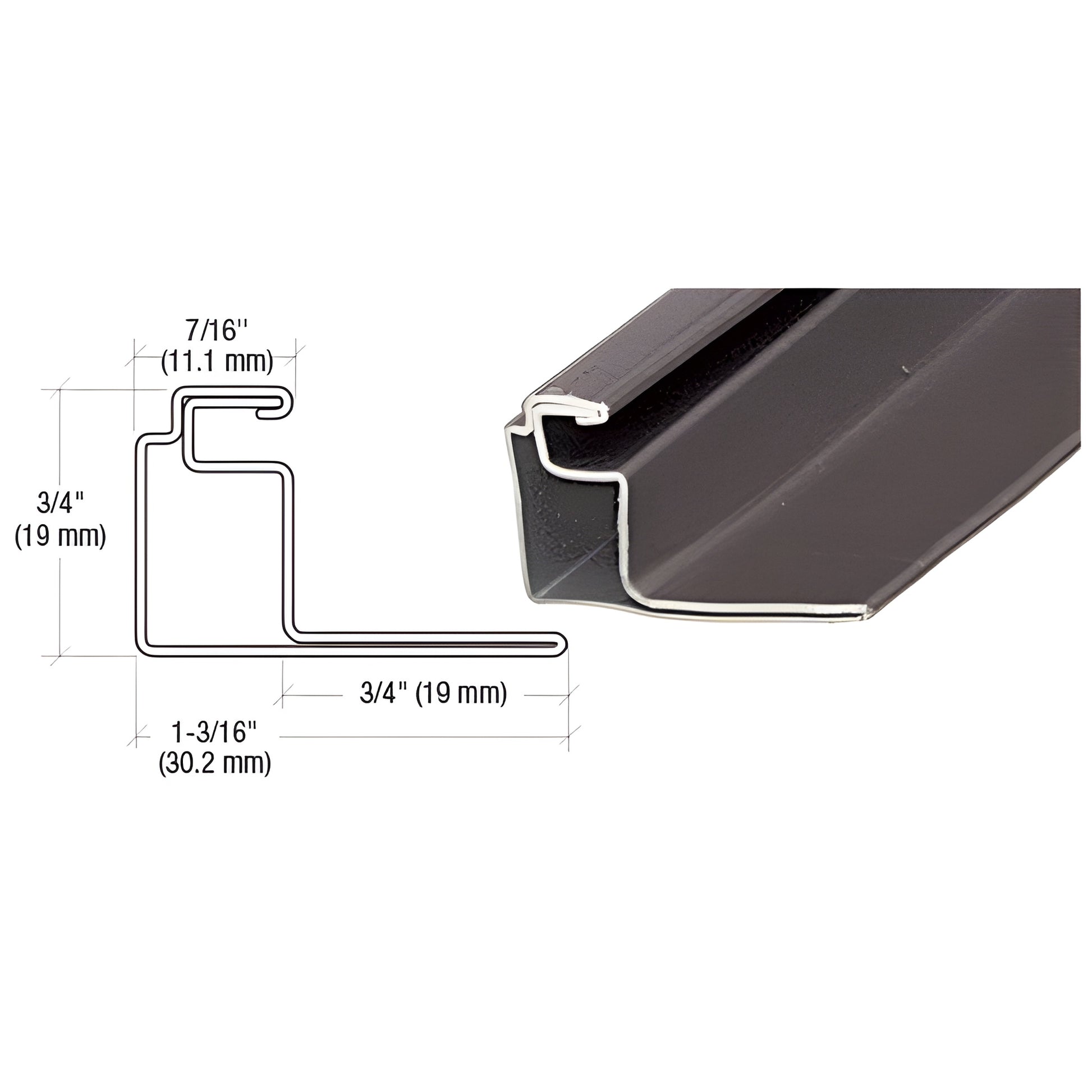

CRL 3/4" x 7/16" (19 x 11 mm) box type screen frame with an extended 3/4" (19 mm) standoff leg for easy installation where a wicket screen is used. Ideal long‑length roll formed aluminum frame for wicket screen applications. SKU: WSFS34BRZ.

Key differentiators:

• Extended standoff leg to accommodate wicket openings—works with project‑in and project‑out window designs
• Precision roll‑formed aluminum for consistent strength and lightweight performance
• Compatible with WSC111 corners for mitered corner assembly

NOTE: Due to the longer standoff member, this screen frame is not cambered (not bowed).

SPECIFICATIONS:
Material: Roll‑formed aluminum
Wall Thickness: .025" (0.63 mm) — industry tolerance ± .002" (0.05 mm)
Uses Spline Size: .175" (4.4 mm)
Uses Corners: WSC111 for mitered corners

Product Warning:

Stock lengths must ship via common carrier unless cut for UPS. Because of coil stock tolerances and the roll forming process, stock thickness can vary within the stated tolerance—this is standard industry practice.


Order the WSFS34BRZ 3/4" x 7/16" wicket screen frame today or contact CRL for custom cuts and finish options.
