CRL Bronze Anodized LH Ext Bi-Fold Door w/ Raised Sill & Lever Lock

CRL Bronze Anodized LH Ext Bi-Fold Door w/ Raised Sill & Lever Lock

Shipping calculated at checkout.
Quantity
Item# M3C16R0DUL
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Black Bronze Anodized
Glazing Thickness
1 in. (25 mm)
Maximum Panel Width
36 in. (914 mm)
Panel Count
6

Overview

  • Meets CW performance rating minimum design pressure of 30 psf
  • Meets CW performance rating maximum allowable deflection of L/175
  • Thermally broken with 1-inch insulating glass
  • For low- to mid-rise commercial applications
  • Maximum panel width: 36 inches; maximum frame height: 10 feet

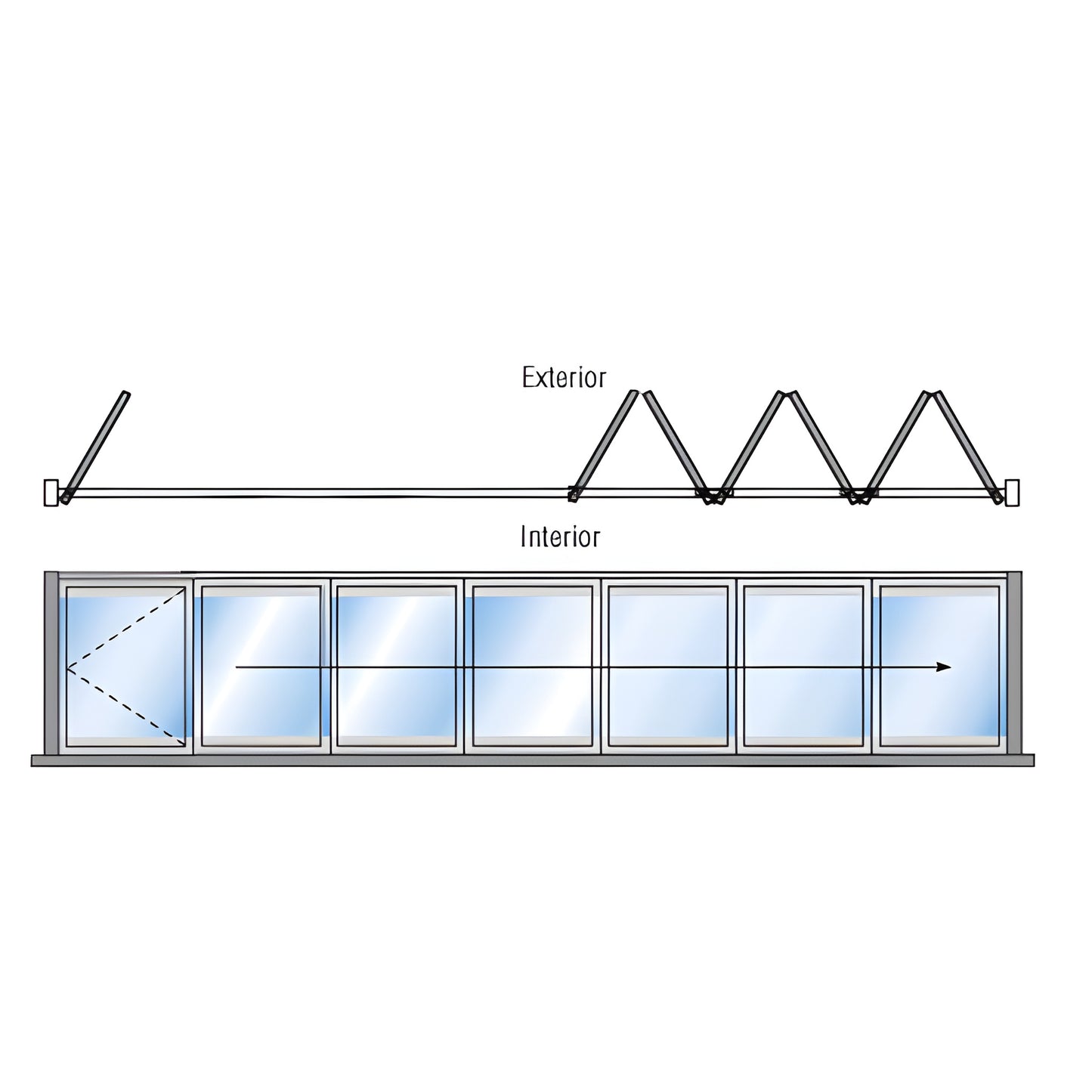

Monterey S80CW Bi-Folding Door — a commercial bi-folding door engineered for demanding exterior environments. The CW Performance Class rating and thermally broken frame with 1" insulating glass deliver superior weather resistance, structural performance, and reduced thermal transfer for low- to mid-rise commercial projects that require larger sizes and tighter deflection limits.

  • Outswing with raised sill only
  • Maximum interconnected panels: 9
  • Option for floating panels in even sets
  • Standard finishes: black bronze anodized, satin anodized, black & white powder coat (90% gloss)
  • Custom finishes available in any powder paint color

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors may vary by monitor.

SKU: M3C16R0DUL

Specify the Monterey S80CW Bi-Folding Door for a thermally broken, CW-rated commercial bi-folding solution that balances large-panel capability with reliable performance. Contact CRL to request quote, lead times, or technical details.
