- Made of Solid Brass
- No Glass Fabrication Required

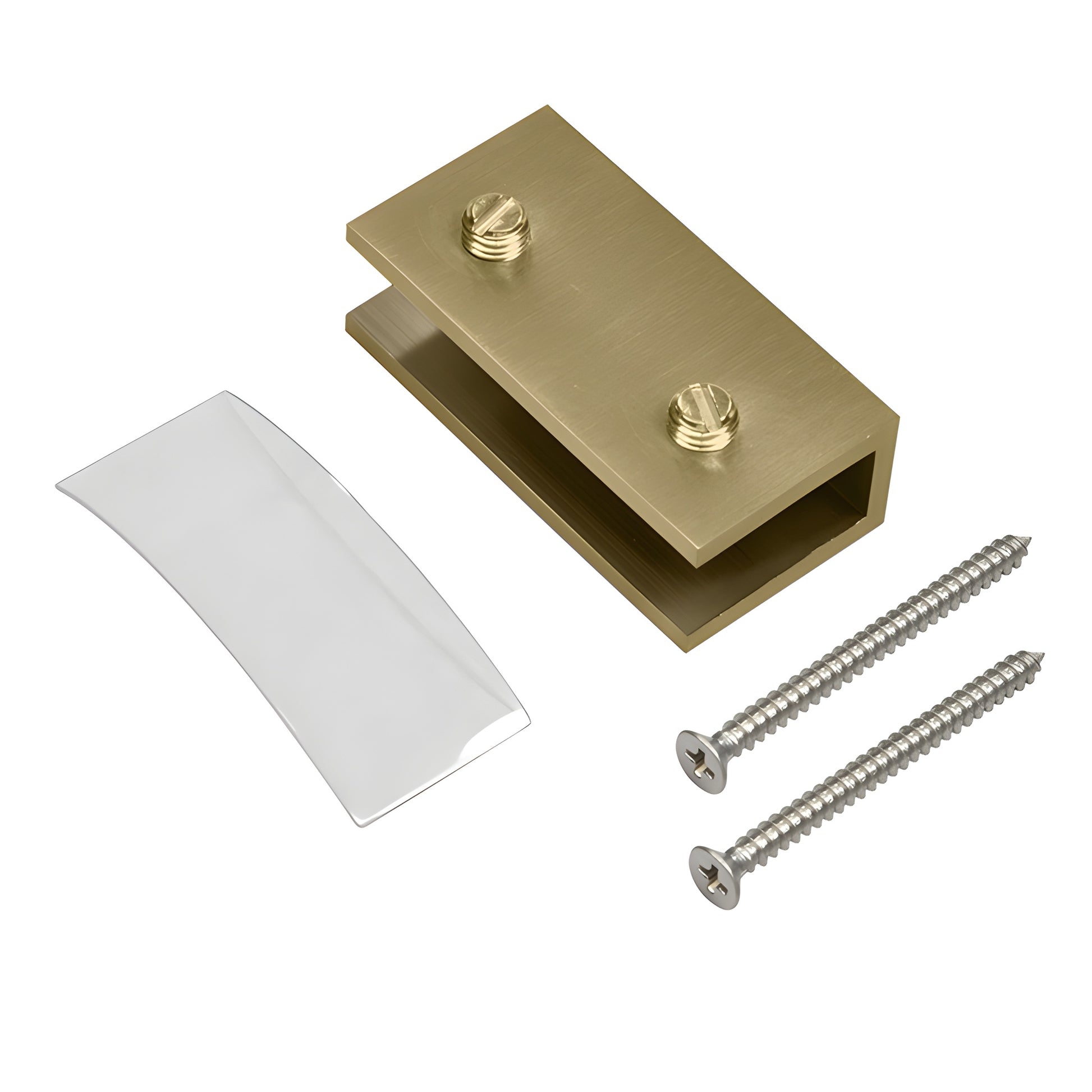

- Includes Clear Gaskets and Mounting Screws
- No-Drill Fixed Panel Clamps Allow Securing of Fixed Panels of Glass, But Only Under Certain Circumstances
- Use Monolithic Tempered Glass

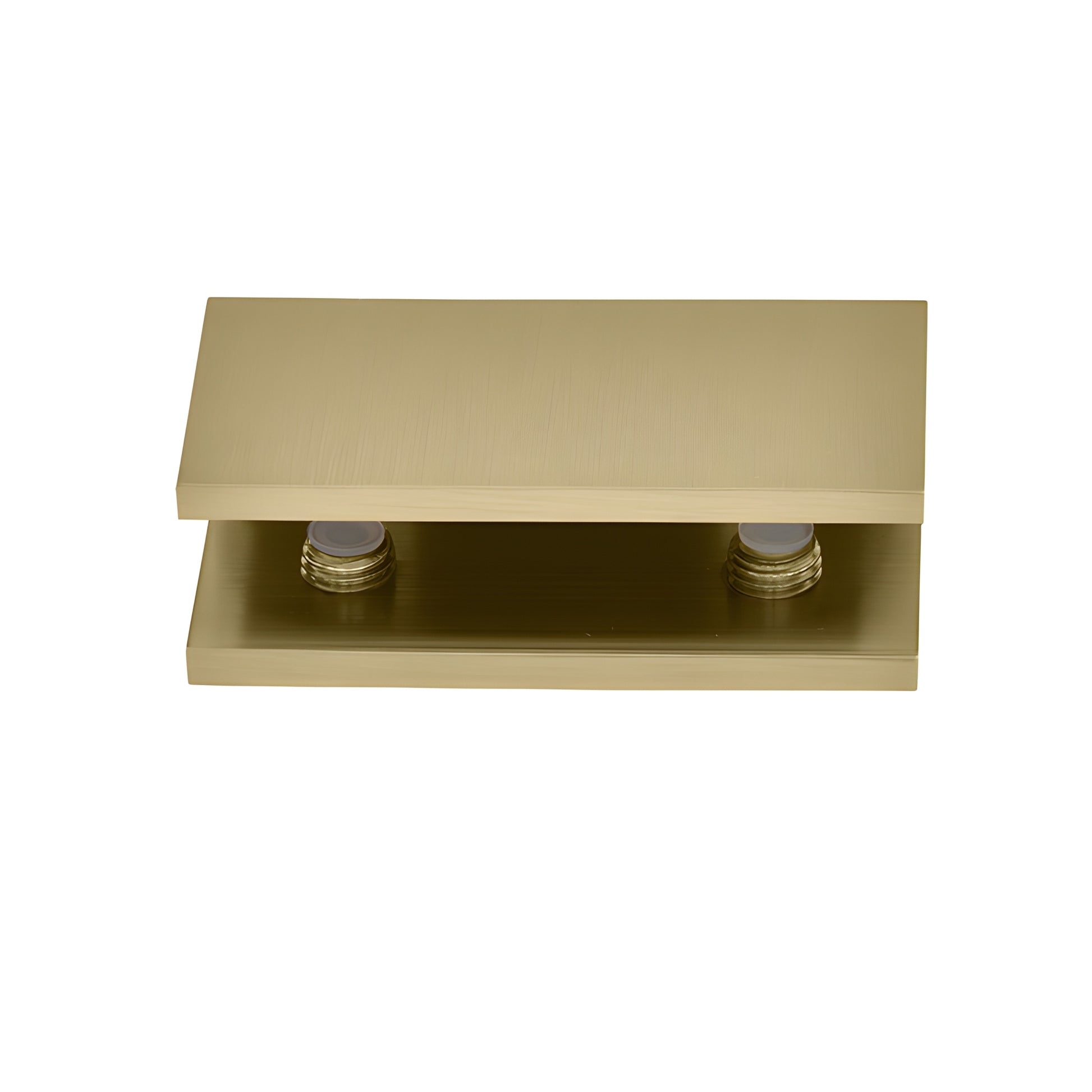

Made of solid brass, and available in numerous stock finishes, these
CRL No-Drill Fixed Panel Clamps
provide an alternative to Clamps requiring drilled holes or notches in the glass. Two nylon tipped set screws are tightened to secure the glass. Mounting screws are also provided for the wall/ceiling/floor. Silicone must also be used for reinforcement along all glass edges where Clamps are used.
IMPORTANT NOTE
Do not hinge a door off a fixed panel using these Clamps. Clamps must be used on minimum of three sides of fixed panel (top, bottom, and at least one side). Silicone must be used for reinforcement along the entire edge of the glass where Clamps are used. It is the responsibility of the installer to determine if adequate structural backing support is being used.
SPECIFICATIONS
Glass Thickness
5/16" to 3/8" (8 to 10 mm)
Material
Solid Brass
Includes
Mounting Screw and Clear Gaskets
No Glass Fabrication Required
