CRL Polished Chrome No-Drill Frameless Shower Glass Panel Clamp

• Made of Solid Brass
• No glass fabrication required — no drilled holes or notches in the glass
• Includes clear gaskets and mounting screws

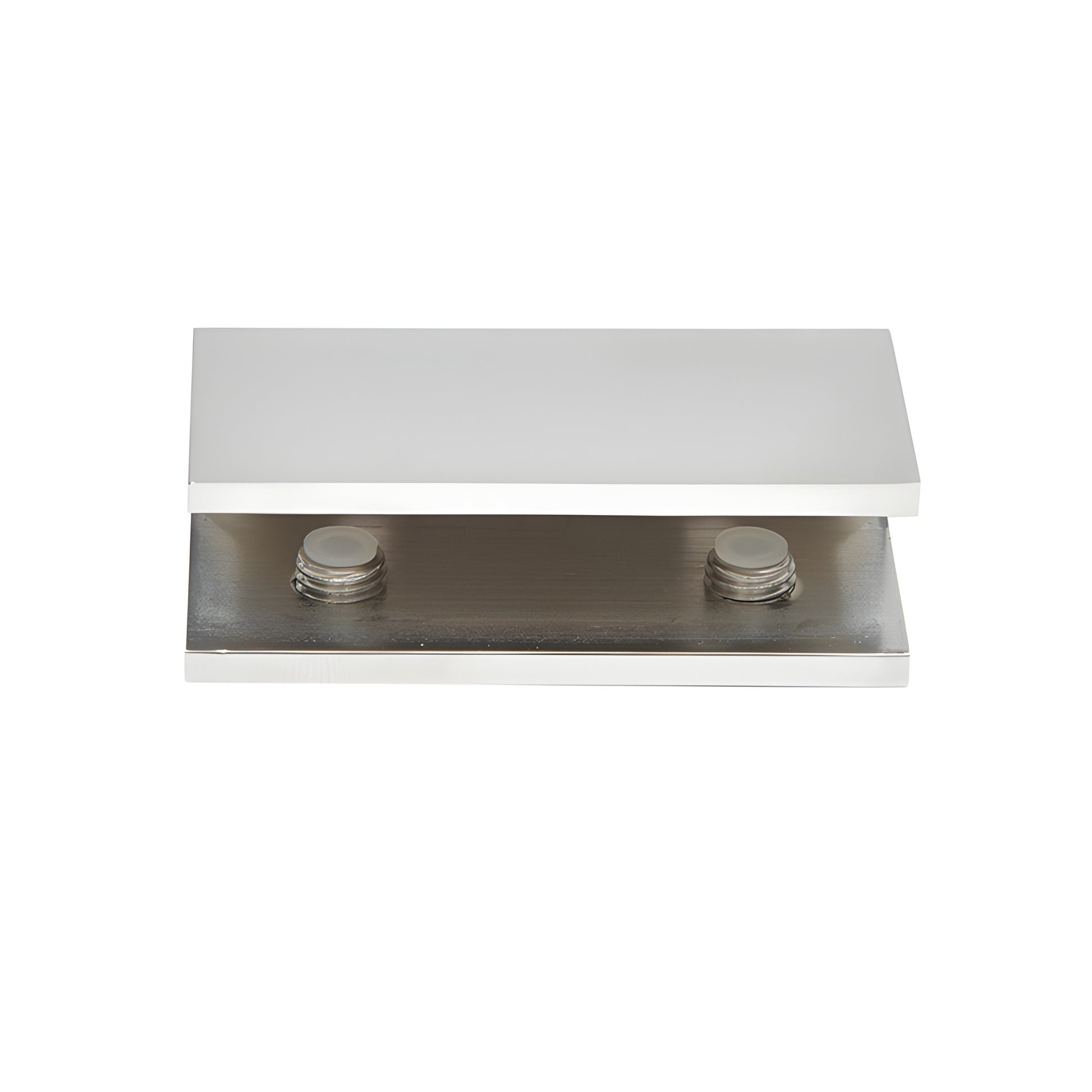

• No-drill fixed panel clamps secure monolithic tempered glass using nylon-tipped set screws
• For use with monolithic tempered glass, thickness 5/16" to 3/8" (8 to 10 mm)

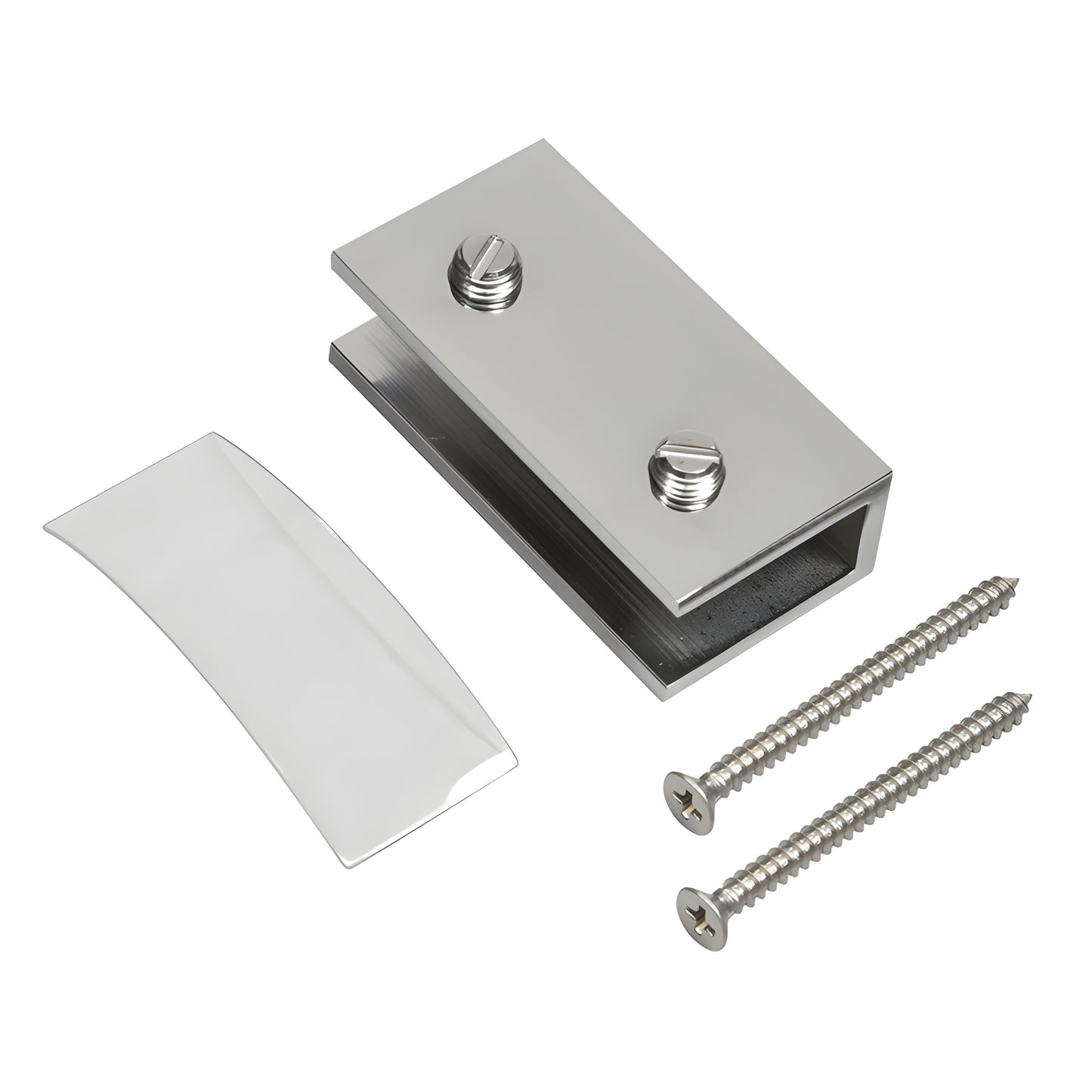

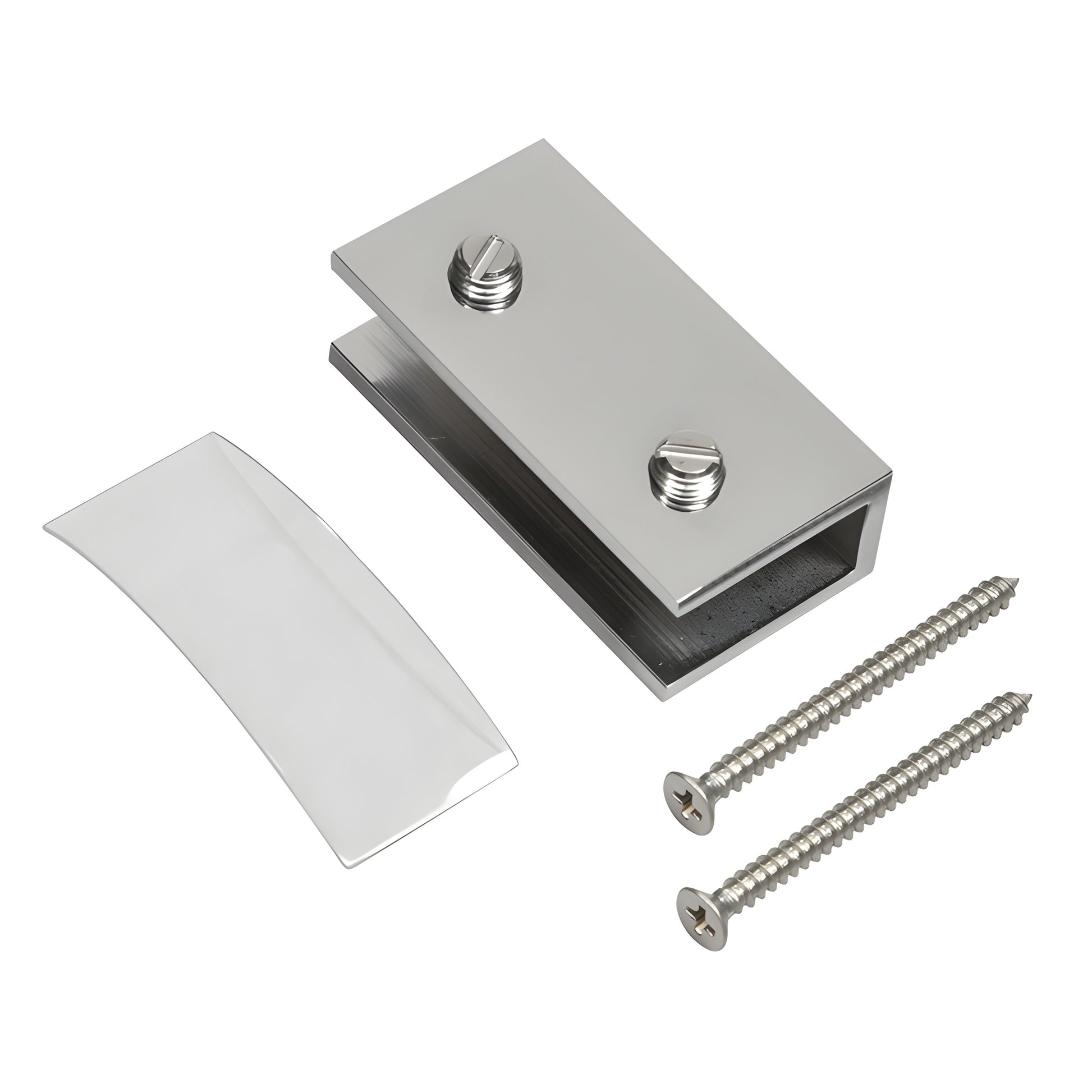

These CRL No-Drill Fixed Panel Clamps (SKU: NDC4CH) are made of solid brass and available in multiple stock finishes. They offer a no-drill solution for securing fixed glass panels—ideal for frameless shower enclosures and glass partition applications where preserving full glass edges is important. Two nylon-tipped set screws tighten to secure the glass; mounting screws and clear gaskets are included. Silicone along the glass edge is required for reinforcement when clamps are used.

Important — Installation & Use

• Do not hinge a door off a fixed panel using these clamps.
• Clamps must be used on a minimum of three sides of the fixed panel (top, bottom, and at least one side).
• Silicone reinforcement is required along the entire edge of glass where clamps are installed.
• Installer must verify adequate structural backing support.

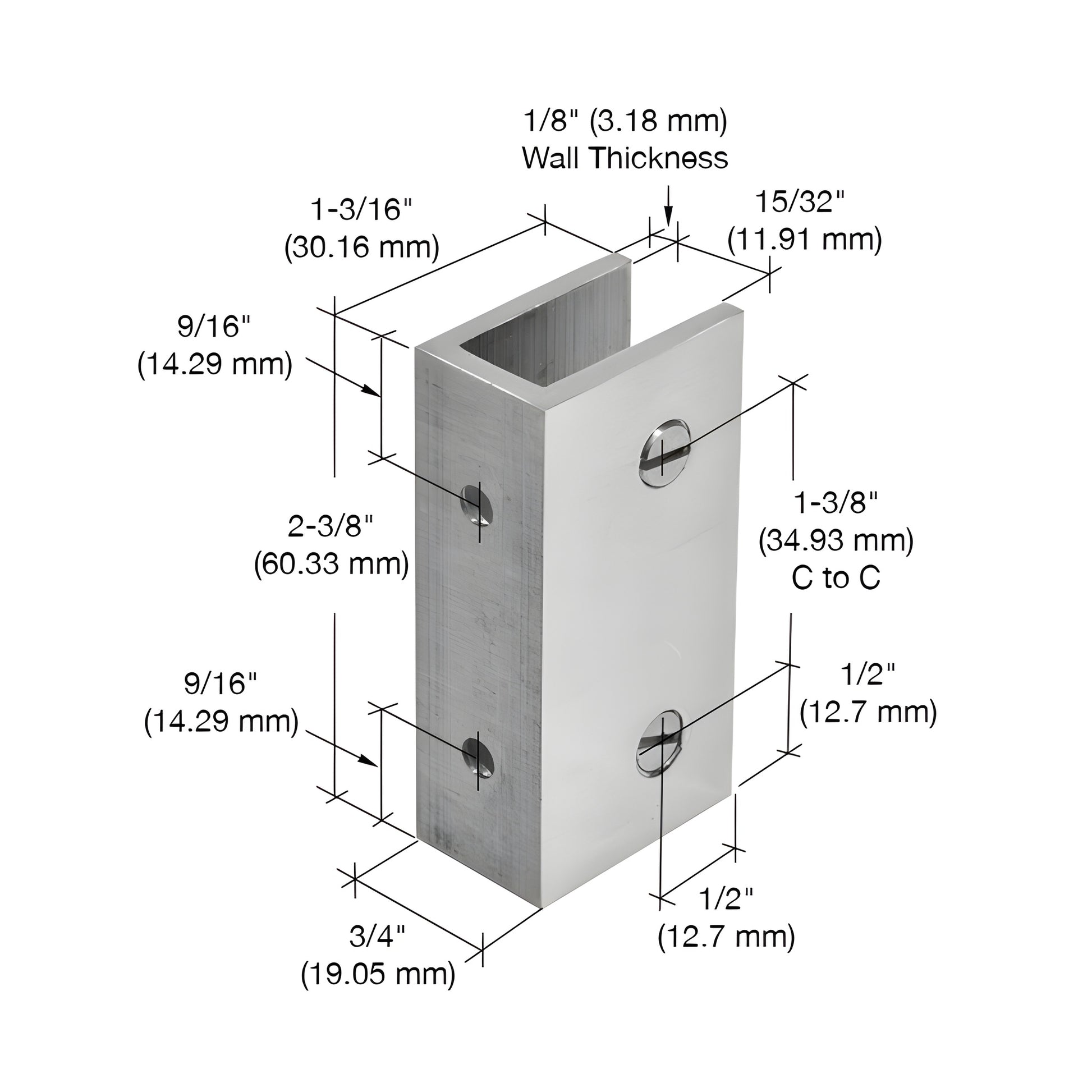

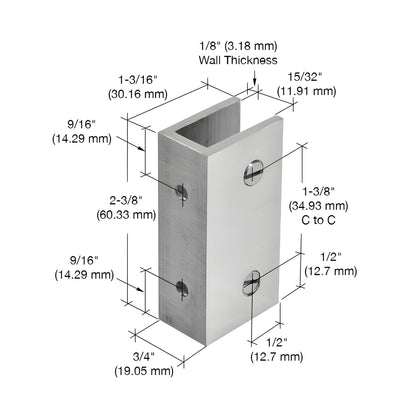

Specifications:
Glass Thickness: 5/16" to 3/8" (8 to 10 mm)
Material: Solid Brass
Includes: Mounting screw and clear gaskets

Product Warning: Do not hinge a door off a fixed panel using these clamps. Ensure clamps are used on at least three sides of the fixed panel and that silicone reinforcement and proper backing support are provided.

Order NDC4CH now — contact us for finish availability and installation guidance.
