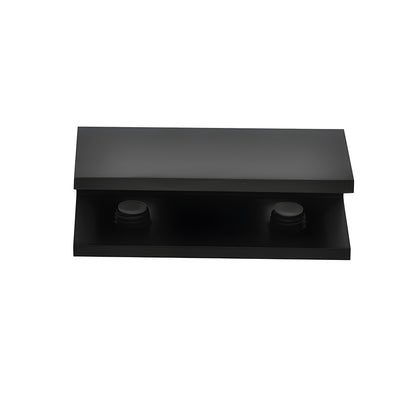

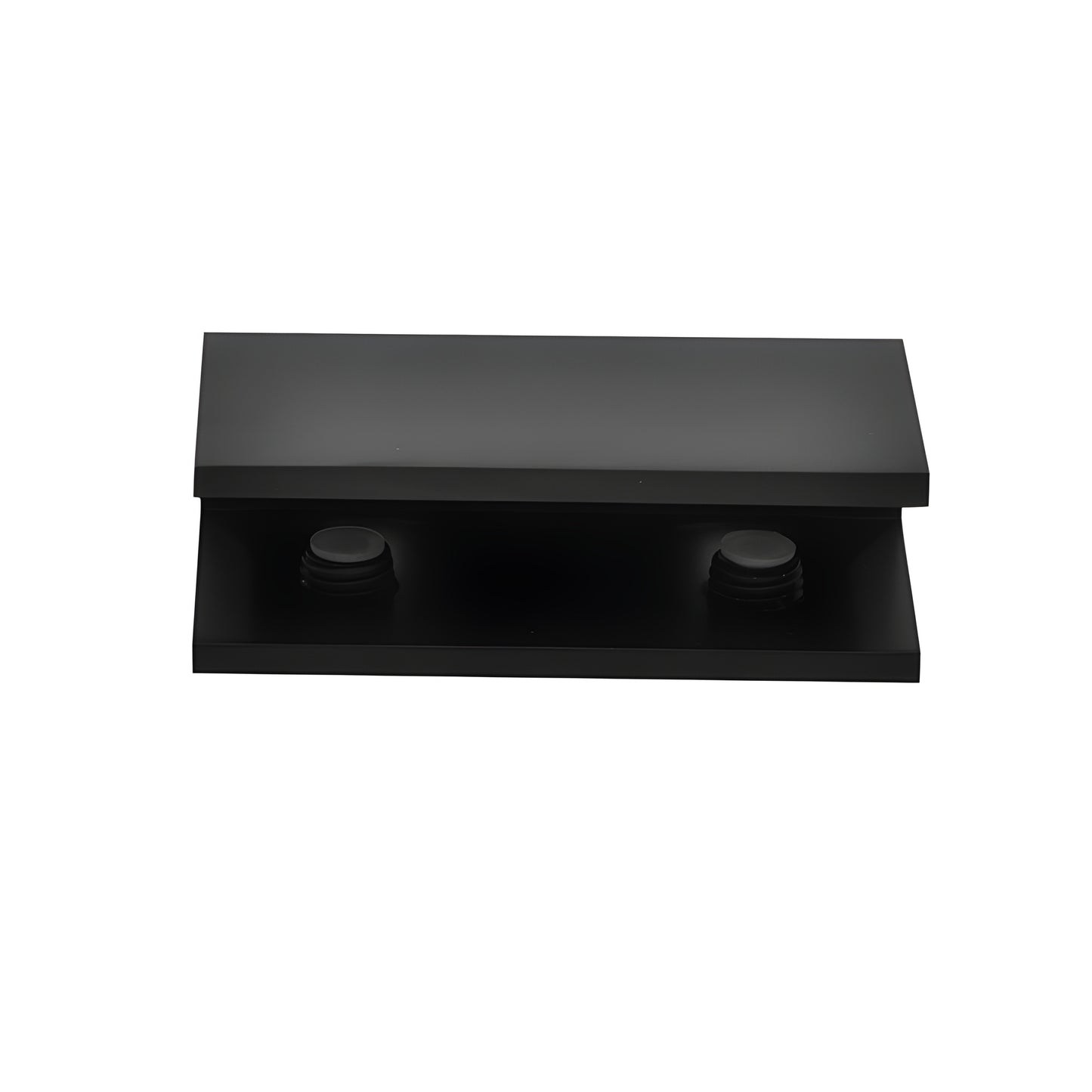

CRL Matte Black No-Drill Fixed Shower Glass Clamp

• Made of Solid Brass
• No Glass Fabrication Required

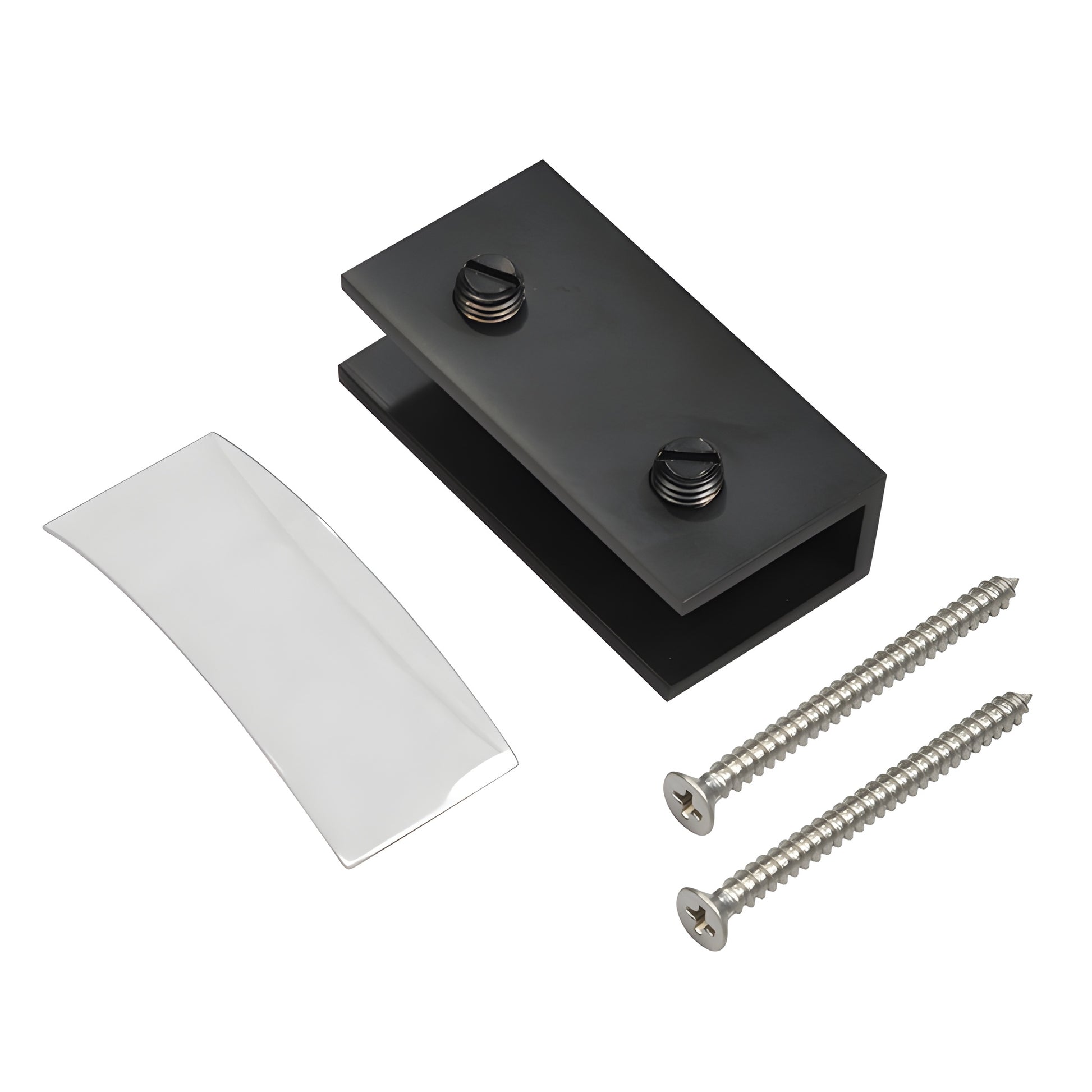

• Includes Clear Gaskets and Mounting Screws
• No-drill fixed panel clamps for securing fixed glass panels (use only under specified conditions)
• Use Monolithic Tempered Glass

Made of solid brass and available in numerous stock finishes, these CRL No-Drill Fixed Panel Clamps (SKU: NDC4MBL) offer a no-drill alternative to clamps that require drilled holes or notches in the glass. Two nylon-tipped set screws tighten to secure the glass; mounting screws are provided for wall/ceiling/floor attachment. Use silicone along all clamped glass edges for reinforcement. These clamps are well suited for applications requiring a solid brass, no-drill shower or architectural glass clamp for 8–10 mm tempered glass.

IMPORTANT: Do not hinge a door off a fixed panel using these clamps. Clamps must be applied on a minimum of three sides of the fixed panel (top, bottom, and at least one side). Silicone reinforcement along the entire clamped edge is required. Installers are responsible for verifying adequate structural backing and support.

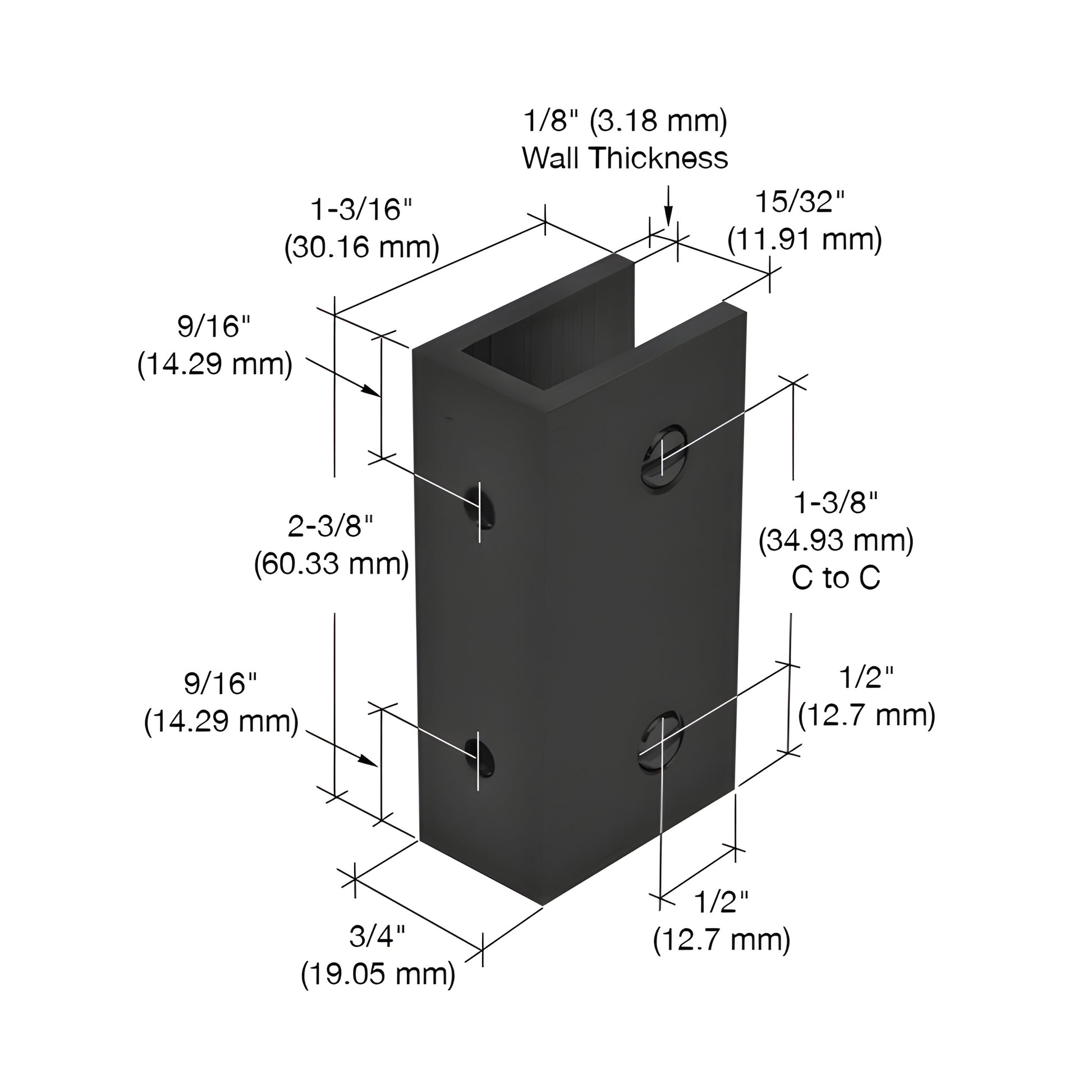

SPECIFICATIONS:
Glass Thickness: 5/16" to 3/8" (8 to 10 mm)
Material: Solid Brass
Includes: Mounting screw and clear gaskets
No glass fabrication required

Product Warning:
Do not hinge a door off a fixed panel using these clamps. Clamps must be used on at least three sides of the fixed panel. Silicone reinforcement is required along the entire edge of glass where clamps are used. Installer must confirm adequate structural backing.

Ready to order? Add the CRL No-Drill Fixed Panel Clamps (NDC4MBL) to your cart or contact customer service for technical support and finish options.
