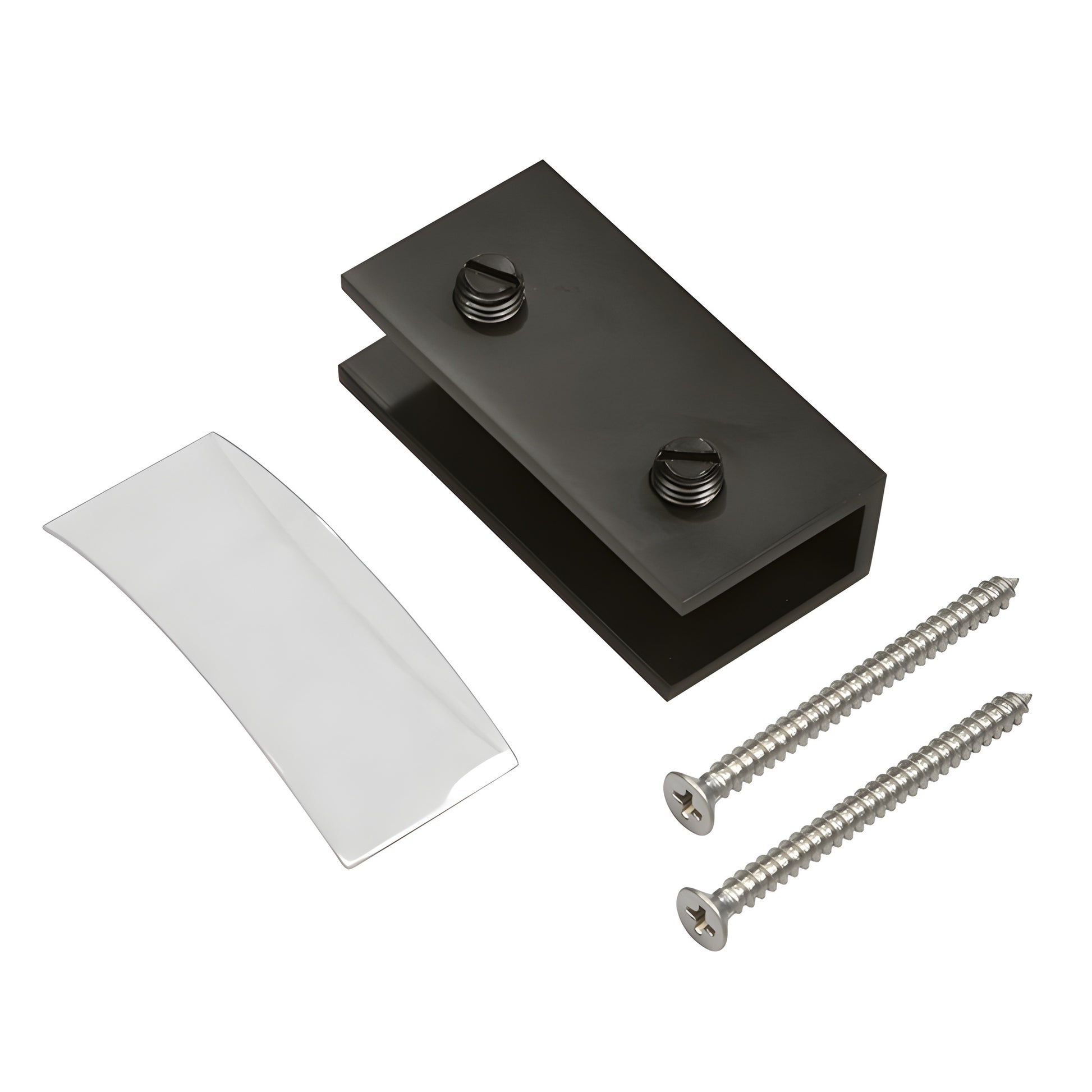

• NDC40RB oil-rubbed bronze no-drill brass fixed-panel clamp with clear gasket and two mounting screws.
  • NDC40RB oil-rubbed bronze no-drill brass fixed-panel clamp with clear gasket and two mounting screws.
  • NDC40RB oil-rubbed bronze no-drill brass fixed-panel clamp with clear gasket and two mounting screws.
1 3

CRL

CRL Oil Rubbed Bronze No-Drill Glass Clamp for Fixed Shower Panels

CRL Oil Rubbed Bronze No-Drill Glass Clamp for Fixed Shower Panels

$38.99 CAD
$38.99 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# NDC40RB
Shipping Weight: 2.24 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Case Quantity
50
Finish/Color
Oil Rubbed Bronze

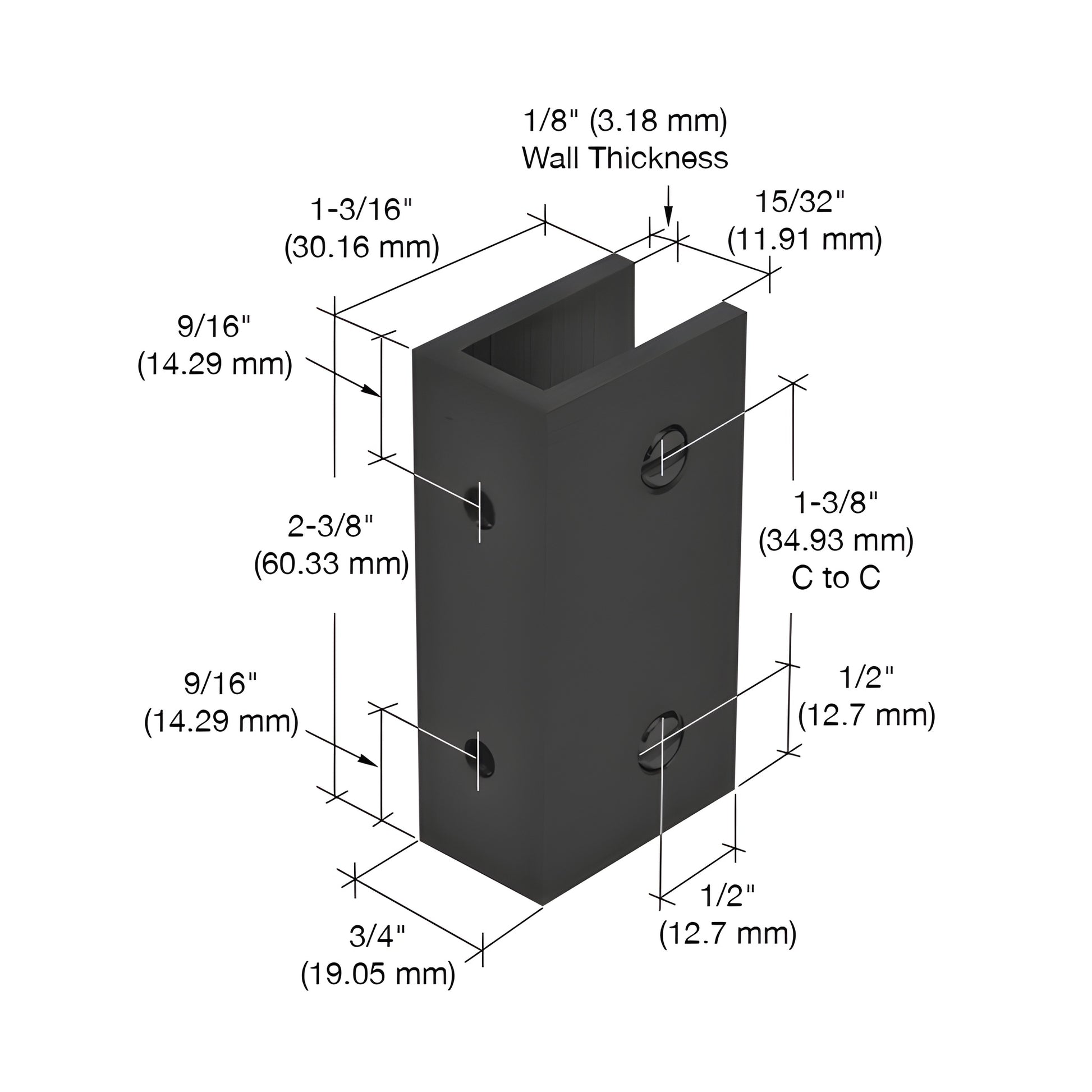

Glazing Thickness
5/16 in. To 3/8 in. (8 mm To 10 mm)
Height
3/4 in. (19 mm)
Length
2-3/8 in. (60 mm)
Material
Brass
Mounting Type
Wall Mount
Width
1-3/16 in. (30 mm)

Overview

  • Made of Solid Brass
  • No Glass Fabrication Required
  • Includes Clear Gaskets and Mounting Screws
  • No-drill fixed panel clamps allow securing fixed glass panels in certain applications
  • For use with Monolithic Tempered Glass

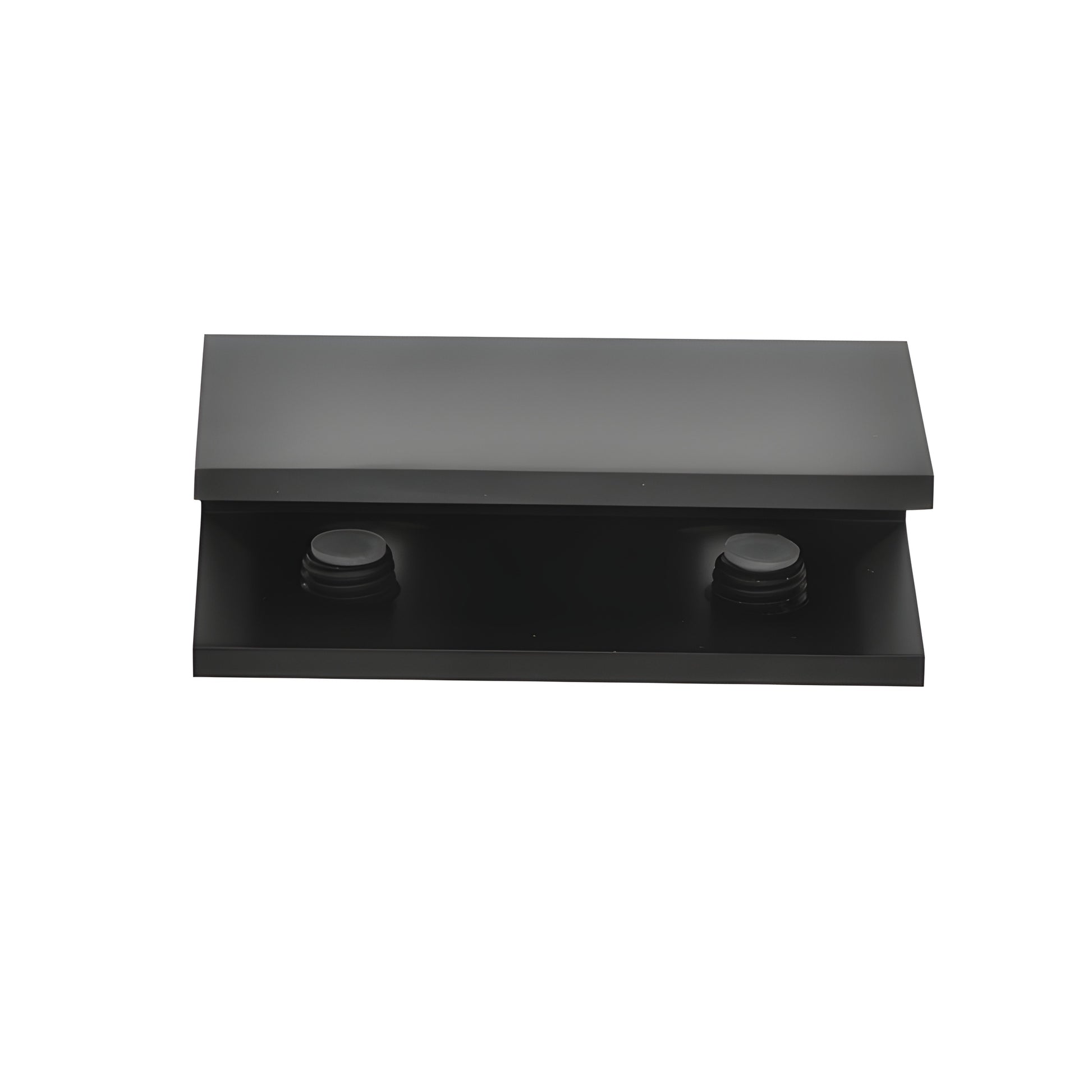

Made of solid brass and available in multiple stock finishes, these CRL No-Drill Fixed Panel Clamps are a no-drill alternative for glass shower and storefront installations that avoids drilling holes or notching the glass. Two nylon-tipped set screws tighten to secure the glass; mounting screws are provided for attachment to wall, ceiling, or floor. Use silicone reinforcement along all glass edges where clamps are applied.

IMPORTANT NOTE / PRODUCT WARNING: Do not hinge a door off a fixed panel using these clamps. Clamps must be used on a minimum of three sides of the fixed panel (top, bottom, and at least one side). Silicone must be applied along the entire glass edge where clamps are used. Installers are responsible for verifying adequate structural backing and suitability for their specific glass shower, frameless shower, or glass partition application.

SPECIFICATIONS:
Glass Thickness: 5/16" to 3/8" (8 to 10 mm)
Material: Solid Brass
Includes: Mounting screw and clear gaskets
No glass fabrication required

Most shipping weights are approximate and have not been verified. If exact weight or verified shipping costs are required before ordering, contact CRL Customer Service. Product images show the actual product or a close representation; colors may vary by monitor.

Shop CRL No-Drill Fixed Panel Clamps for secure, drill-free installation of monolithic tempered glass panels. Add to cart or contact us for technical assistance.
