CRL

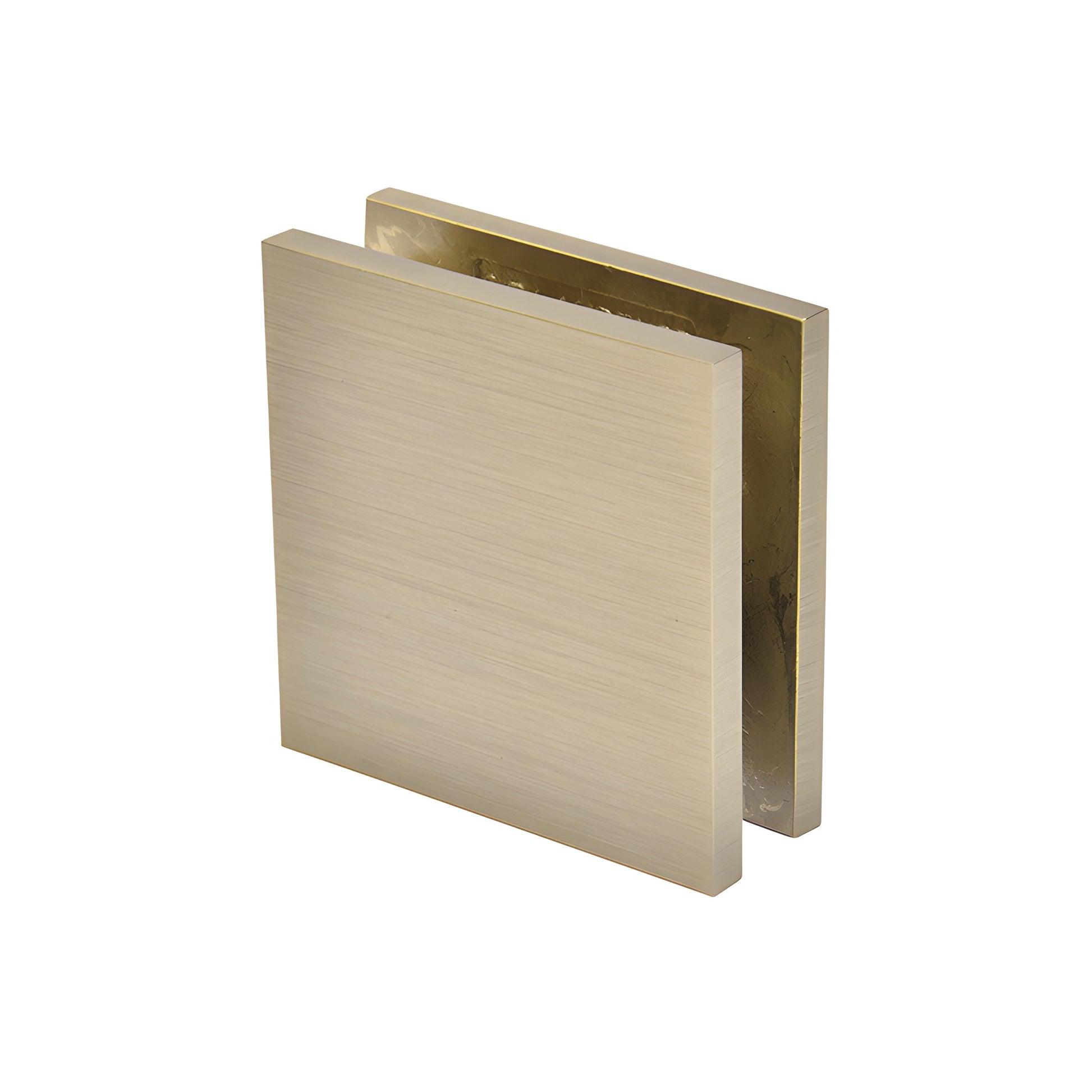

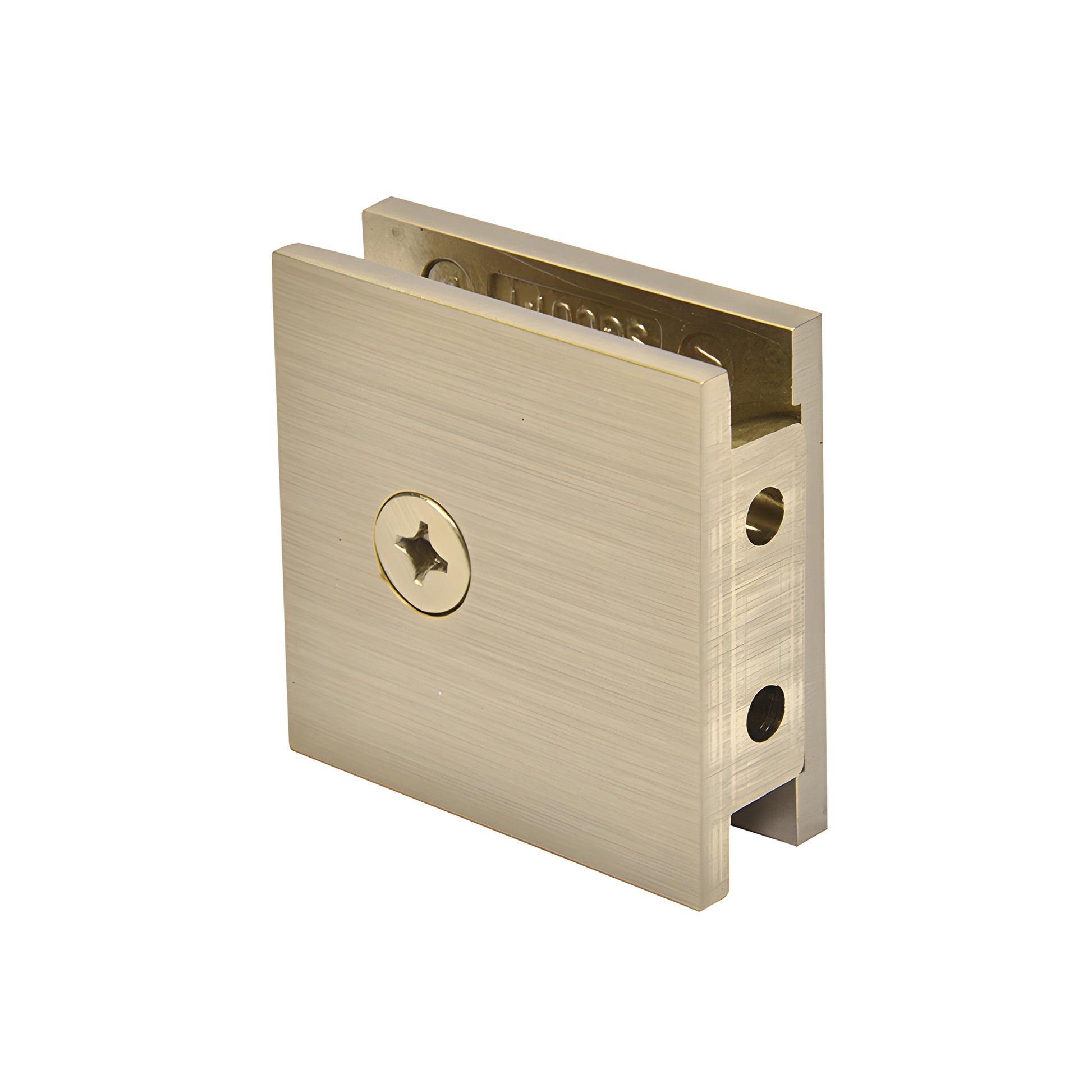

CRL Brushed Bronze Square U-Clamp for Notch-in-Glass Shower Panels
CRL Brushed Bronze Square U-Clamp for Notch-in-Glass Shower Panels
Regular price
$28.15 CAD
Regular price
Sale price
$28.15 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SGCU1BBRZ
Shipping Weight: 8.96 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 8.96 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description

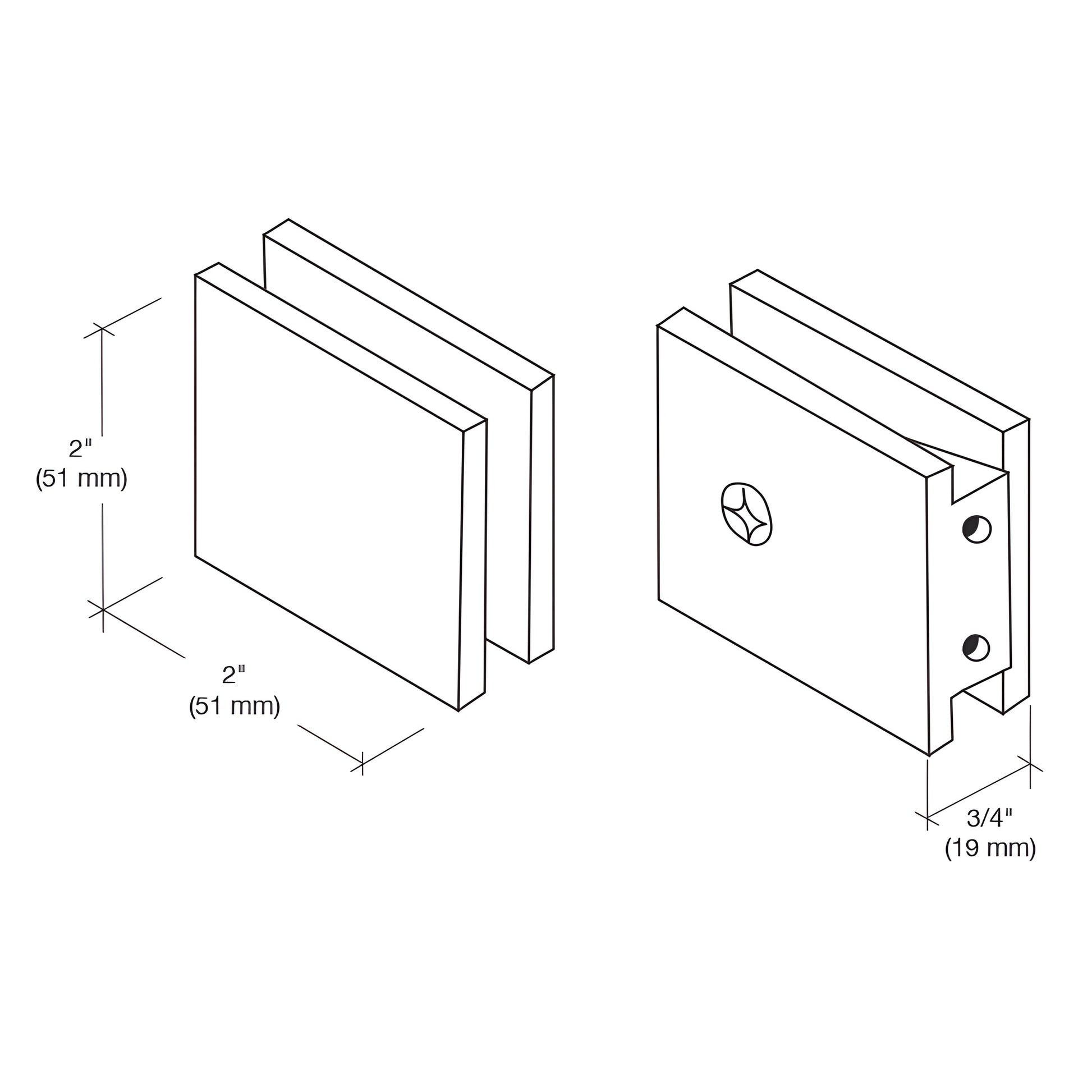

Finish/Color
Brushed Bronze
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)
Height
2 in. (51 mm)
Material
Brass
Mounting Type
Wall Mount
Width
2 in. (51 mm)
Overview
- For 3/8" to 1/2" (10 to 12 mm) glass
- Secures fixed panels of glass for frameless shower enclosures
- Solid brass construction for durability and corrosion resistance
- Provides a cleaner, more "all-glass" appearance compared to traditional U-channel
- Glass fabrication: notch required in panel (notch-in-glass style)
- Use monolithic tempered glass
CRL Square Wall Mount Clamp (Notch-in-Glass Style) mounts directly to the wall, ceiling or floor to secure vertical fixed glass panels in frameless shower enclosures and other all-glass applications. Clearance between the glass and wall is 1/16" (2 mm). Clear silicone can be used to provide a clean, water-tight seal.
SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGCU1 requires a notch; SCU4, SGC037, and SGC039 require 3/4" (19 mm) holes
Includes: Mounting screws and gaskets
SKU: SGCU1BBRZ
Specifications
Templates
