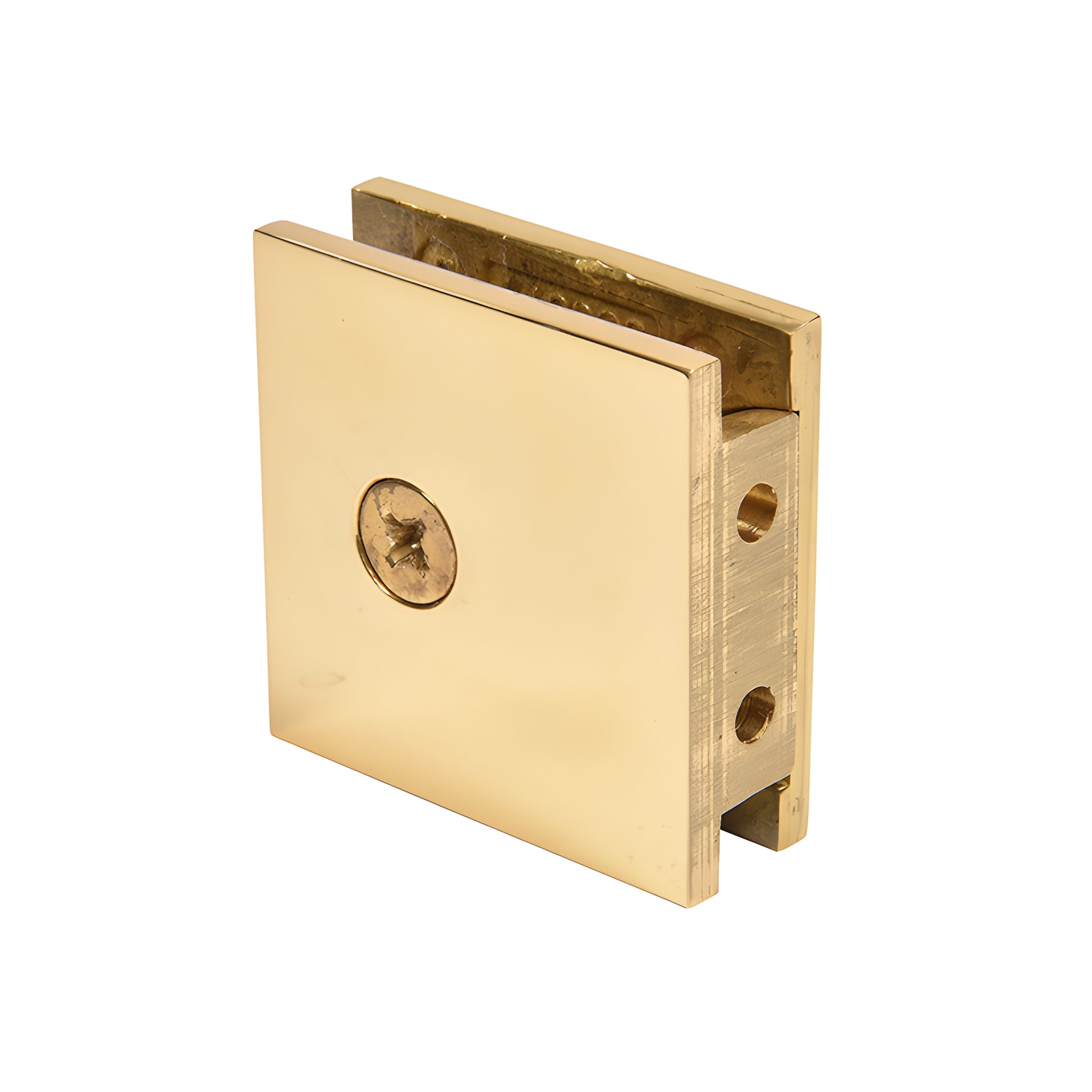

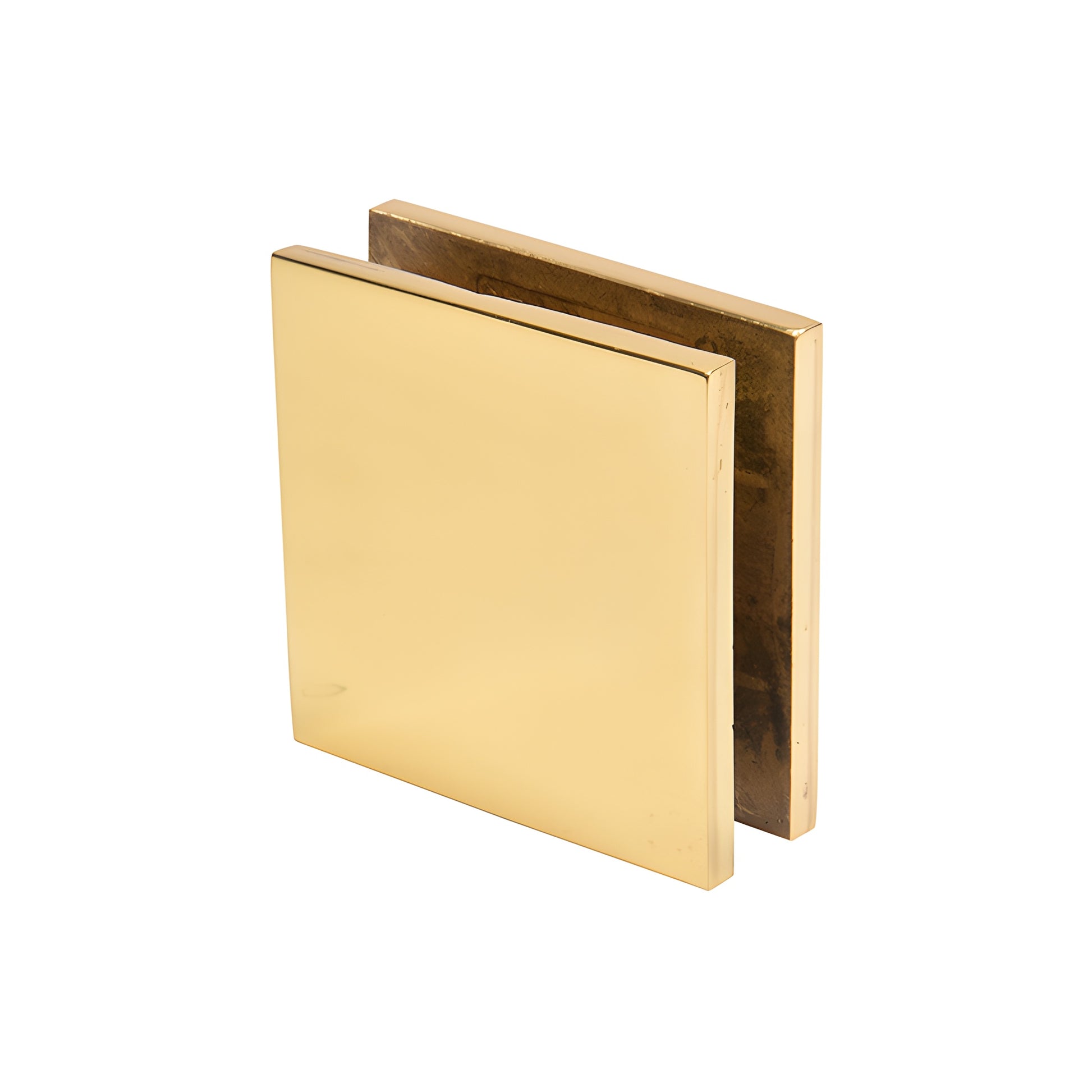

CRL Unlacquered Brass Square Glass U-Clamp for Notched Shower Panels

CRL Unlacquered Brass Square Glass U-Clamp for Notched Shower Panels

$19.50 CAD
$19.50 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# SGCU1ULBR
Shipping Weight: 8.8 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Unlacquered Brass
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)
Height
2 in. (51 mm)
Material
Brass
Mounting Type
Wall Mount
Width
2 in. (51 mm)

Overview

  • For 3/8" to 1/2" (10 to 12 mm) glass
  • Secures fixed panels of glass for frameless shower enclosures
  • Solid brass construction
  • Creates an "all-glass" look versus traditional U-channel
  • Glass fabrication: notch required in panel
  • Use with monolithic tempered glass
CRL Square Wall Mount Clamp (Notch-in-Glass Style) mounts directly to the wall, ceiling, or floor to secure vertical fixed glass panels in frameless shower enclosures and other architectural glass installations. Clearance between the glass and wall is 1/16" (2 mm). Clear silicone can be used to provide a clean, water-tight seal.

SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGCU1 requires notch; SCU4, SGC037, and SGC039 require 3/4" (19 mm) holes
Includes: Mounting screws and gaskets

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs before you complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your monitor's color settings.

Brass Finish Advisory:
Although durable, brass is prone to oxidation which may cause a tarnished appearance over time. For more information, view the Brass Finish Disclaimer in the Technical References section.
SGCU1ULBR

Durable solid-brass wall mount clamp for frameless shower enclosures—engineered for a clean, all-glass aesthetic. Order SGCU1ULBR today to complete your frameless glass installation.

Specifications

Templates
BGCU1 SGCU1 Template
