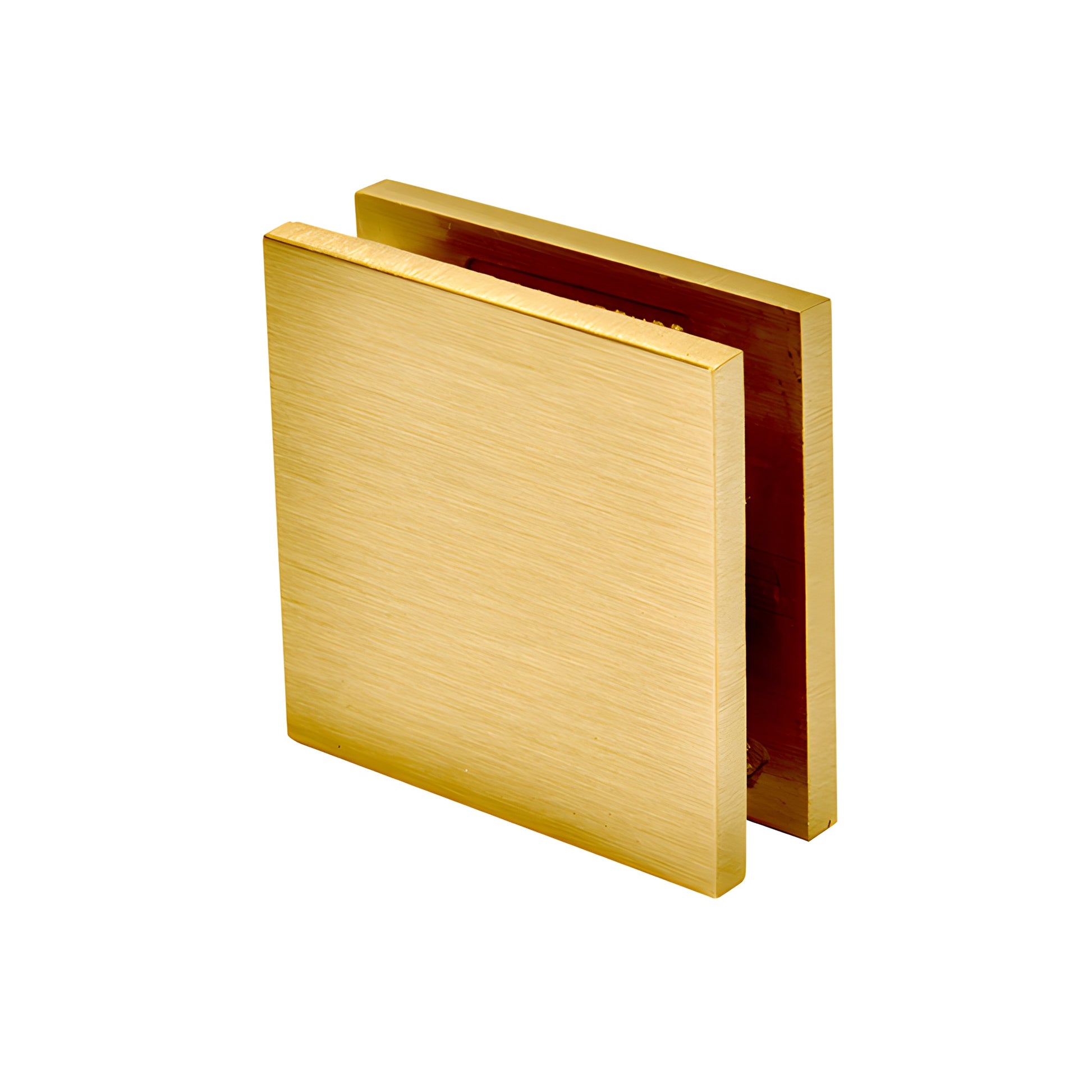

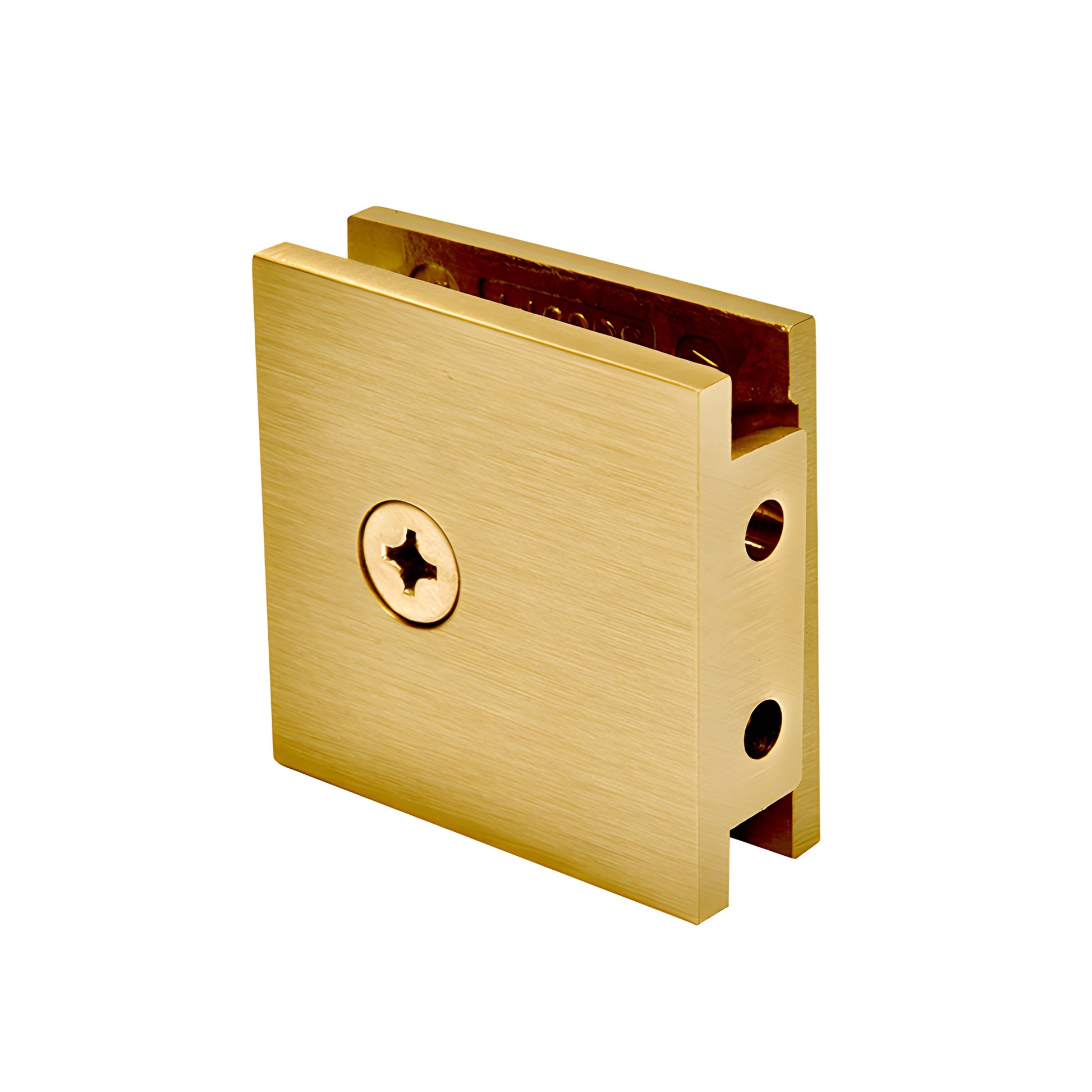

CRL Satin Brass Square U-Clamp for Notch-In Glass Fixed Panel
CRL Satin Brass Square U-Clamp for Notch-In Glass Fixed Panel
Regular price
$24.92 CAD
Regular price
Sale price
$24.92 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SGCU1SB
Shipping Weight: 1.53 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.53 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Satin Brass
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)

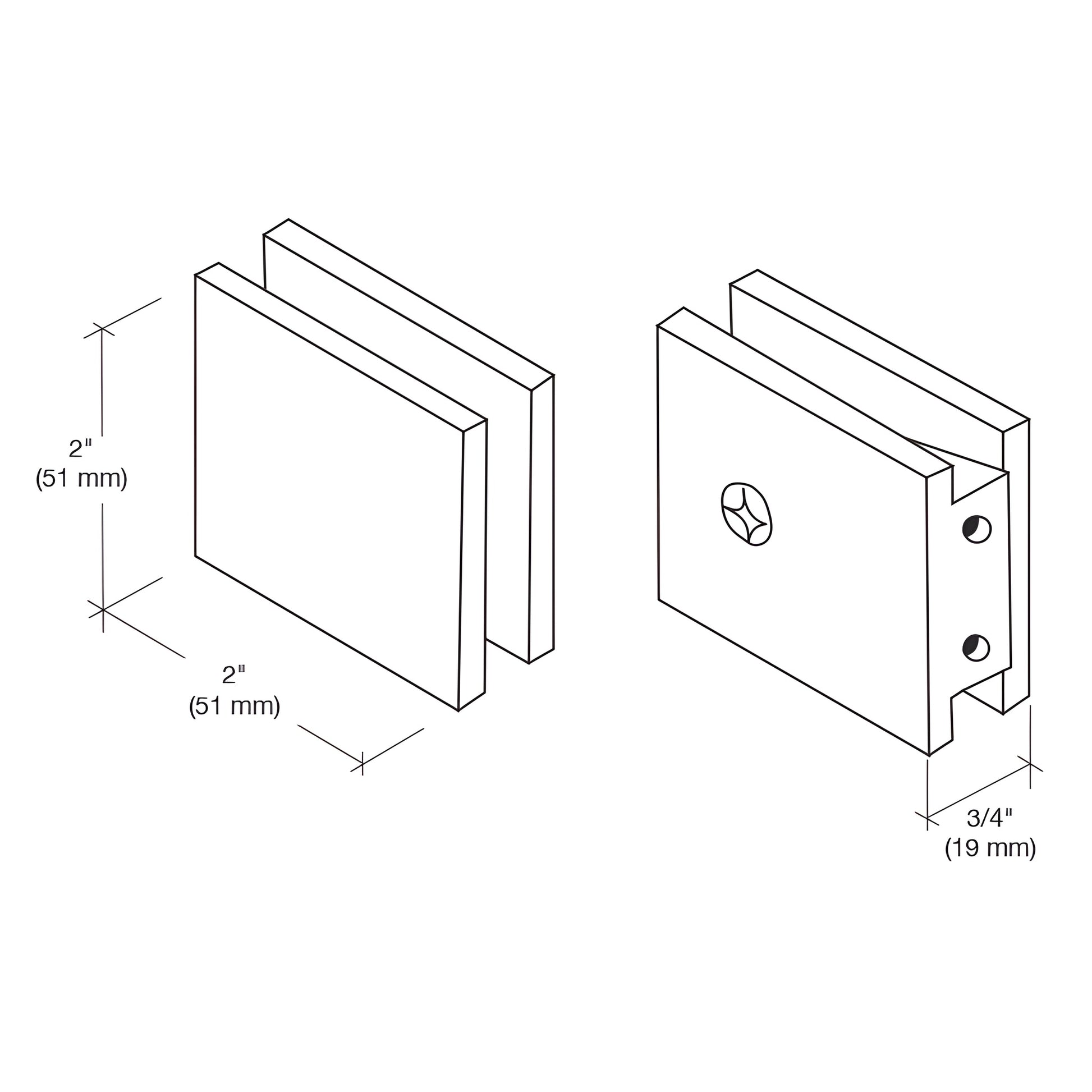

Height
2 in. (51 mm)
Material
Brass
Mounting Type
Wall Mount
Width
2 in. (51 mm)
Overview
- For 3/8" to 1/2" (10 to 12 mm) glass
- Secures fixed glass panels in frameless shower enclosures
- Solid brass construction for strength and durability
- Notch-in-glass style helps achieve an "all-glass" look versus traditional U-channel
- Glass fabrication: notch required in panel
- Use with monolithic tempered glass
CRL Square Wall Mount Clamp (Notch-in-Glass Style) mounts directly to wall, ceiling, or floor to secure vertical fixed glass panels. Clearance between the glass and wall is 1/16" (2 mm). Clear silicone can be used to provide a clean, water-tight seal for frameless shower installations.
SPECIFICATIONS:
SKU: SGCU1SB
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGCU1 requires notch; SCU4, SGC037, and SGC039 require 3/4" (19 mm) holes
Includes: Mounting screws and gaskets
Installation Clearance: 1/16" (2 mm) between glass and wall
Brass Finish Advisory:
Although durable, brass is prone to oxidation and may develop a tarnished appearance over time. See the Brass Finish Disclaimer in Technical References for care and maintenance details.
Ideal for frameless shower clamp installations and commercial glass partition projects—order SKU SGCU1SB today to achieve a clean, all-glass aesthetic.
