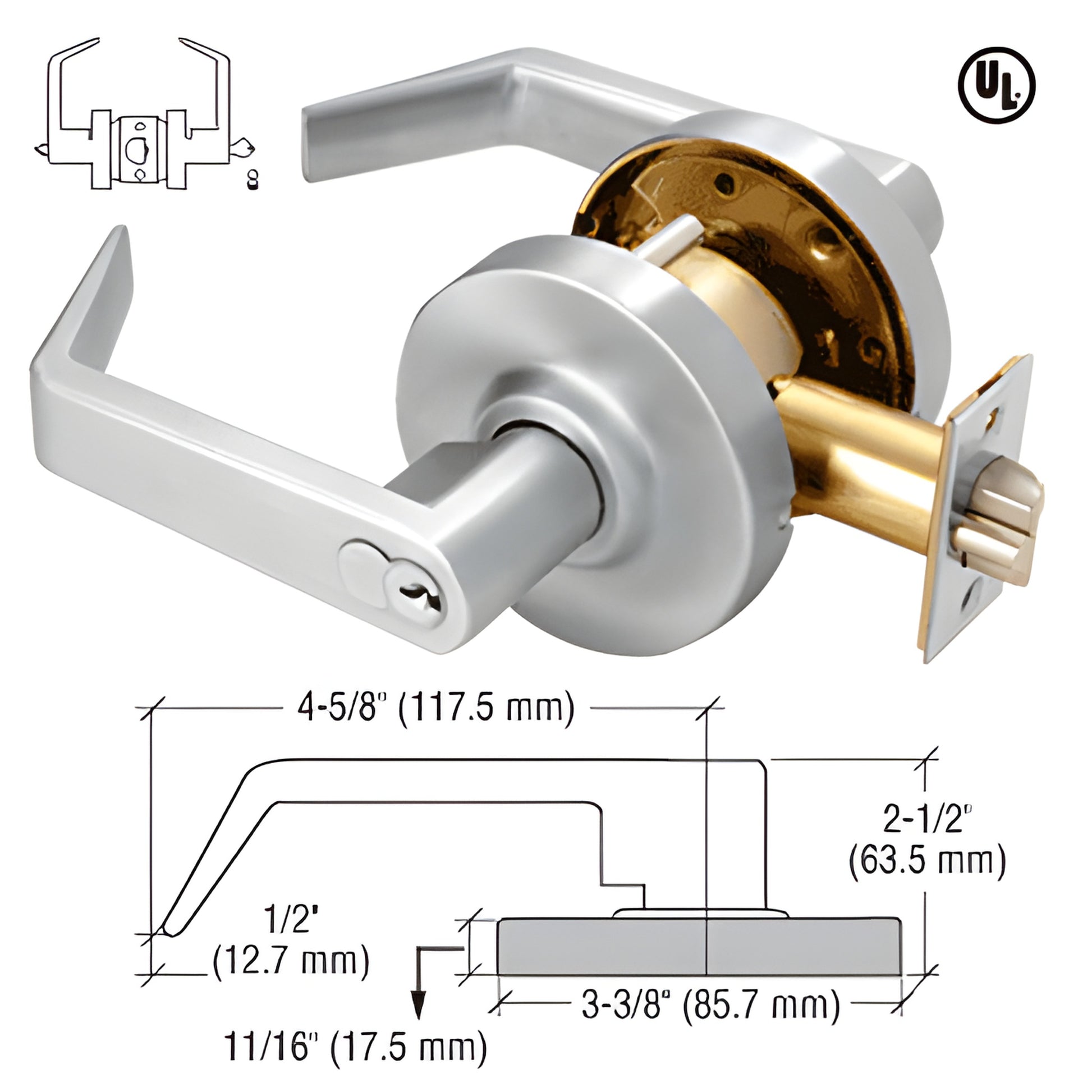

CRL Brushed Chrome Grade 1 Heavy-Duty Entrance Lever - 7-Pin SFIC
Item# D62ENT
Shipping Weight: 4.8 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 4.8 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Backset
2-3/4
Category
Door Accessories
Certification
ANSI A156.2 Grade 1
Clutch Feature
Yes
Door Thickness Range
1-3/8" To 1-3/4"
Door Type
Aluminum, Wood, Hollow Metal
Finish/Color
Brushed Chrome
Fire Rating Hour
3
Function
Entrance
Handing
Non Handed and Reversible
Handle Length
4-5/8
Includes
Strike
Keyway
7 Pin SFIC
Operation Type
F109 Entrance Lever
Projection
2-1/2
Rosette Base Height
11/16
Rosette Base Width
3-3/8
Strike Height
4-7/8
Strike Width
1-1/4
Type
Heavy Duty Lever Lockset
UL Listed
Yes
- 7-Pin SFIC
- Clutch Feature
- ANSI A156.2 Grade 1
- 3 Year Warranty
- UL Listed
These CRL heavy-duty commercial Grade 1 and 2 lever locksets are non-handed and reversible. The Grade 1 clutch feature disengages the outer lever when the latch is locked, preventing latch failure if excessive torque is applied to the outside lever—ideal for high-traffic commercial doors and institutional applications.
These locksets are UL Listed with a 3-hour fire rating and fit door thicknesses from 1-3/8" to 1-3/4" (35 to 45 mm) with a 2-3/4" (70 mm) backset. Available with a Schlage® "C" 6-pin keyway or a 7-pin Small Format Interchangeable Core (SFIC). Includes ANSI 1-1/4" x 4-7/8" (32 x 124 mm) strike. SKU: D62ENT
Entrance function description: Pushing the inside button locks the outside trim and requires a key to unlock. Pushing and twisting the button locks the outside lever and always requires a key to unlatch. Inside lever always allows free egress.
Most shipping weights are approximate and have not been verified. If exact weight is needed to determine shipping costs, please contact CRL Customer Service before placing your order. Product images are of the actual product or a close representation; colors may vary by monitor.
Order the D62ENT commercial Grade 1 lever lockset with SFIC or Schlage C keyway for fire-rated, high-security applications — add to cart or contact us for a quote.
