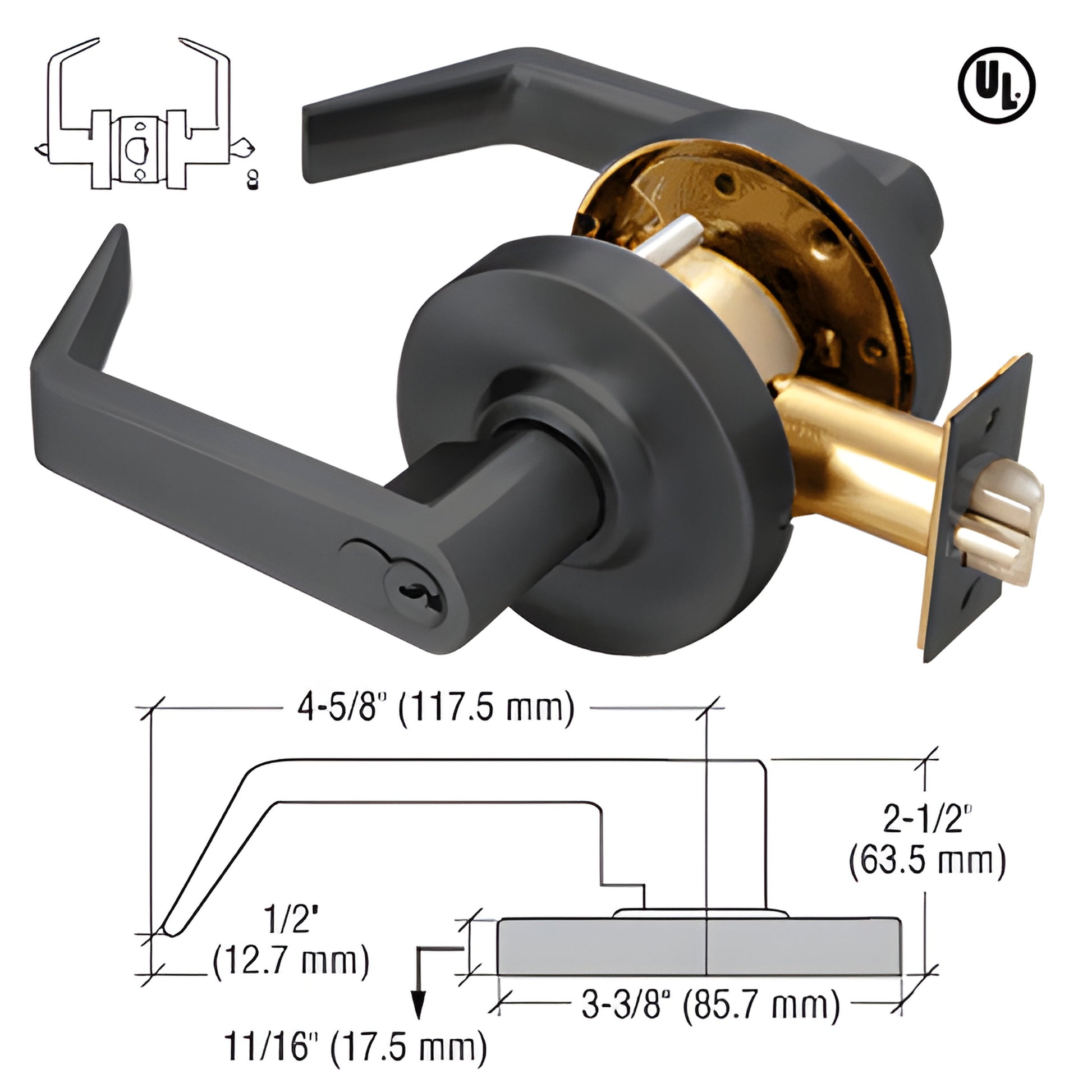

CRL Matte Black Grade 1 Heavy-Duty Entrance Lever Lockset 7-Pin SFIC
Item# D62ENTMBL
Shipping Weight: 4.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 4.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Backset
2-3/4
Category
Door Accessories
Certification
ANSI A156.2 Grade 1
Clutch Feature
Yes
Door Thickness Range
1-3/8" To 1-3/4"
Door Type
Aluminum, Wood, Hollow Metal
Finish/Color
Matte Black
Fire Rating Hour
3
Function
Entrance
Handing
Non Handed and Reversible
Handle Length
4-5/8
Includes
Strike
Keyway
7 Pin SFIC
Operation Type
F109 Entrance Lever
Projection
2-1/2
Rosette Base Height
11/16
Rosette Base Width
3-3/8
Strike Height
4-7/8
Strike Width
1-1/4
Type
Heavy Duty Lever Lockset
UL Listed
Yes
- 7-Pin SFIC Keyway (or Schlage® C 6-pin option)
- Clutch Feature (Grade 1) – disengages outer lever to prevent torque failure
- ANSI A156.2 Grade 1 and 2
- UL Listed, 3‑hour fire rating
CRL Heavy-Duty Commercial Grade 1 and 2 Lever Locksets — non-handed, reversible locksets engineered for commercial doors. The Grade 1 clutch feature disengages the outer lever when locked to prevent latch failure from excessive torque, improving forced-entry resistance for high-traffic commercial applications.
Fits 1-3/8" to 1-3/4" (35–45 mm) door thicknesses with a 2-3/4" (70 mm) backset. Includes ANSI 1-1/4" x 4-7/8" (32 x 124 mm) strike. Available with a 7-pin Small Format Interchangeable Core (SFIC) for master key systems or optional Schlage® C 6-pin keyway.
Entrance Function Description: Pushing the inside button locks the outside trim and requires a key to unlock. Pushing and twisting the button locks the outside lever and always requires a key to unlatch. Inside lever always allows free egress.
SKU: D62ENTMBL
Most shipping weights are approximate and have not been verified. If exact weight or verified shipping costs are required to complete your order, contact CRL Customer Service prior to submitting your order. Product images are actual or close representations; colors may vary with monitor settings.
Shop CRL commercial grade lever locksets for reliable SFIC 7-pin security and UL 3-hour fire-rated protection — add to cart or contact us for volume pricing and master key options.
Installation Instructions
